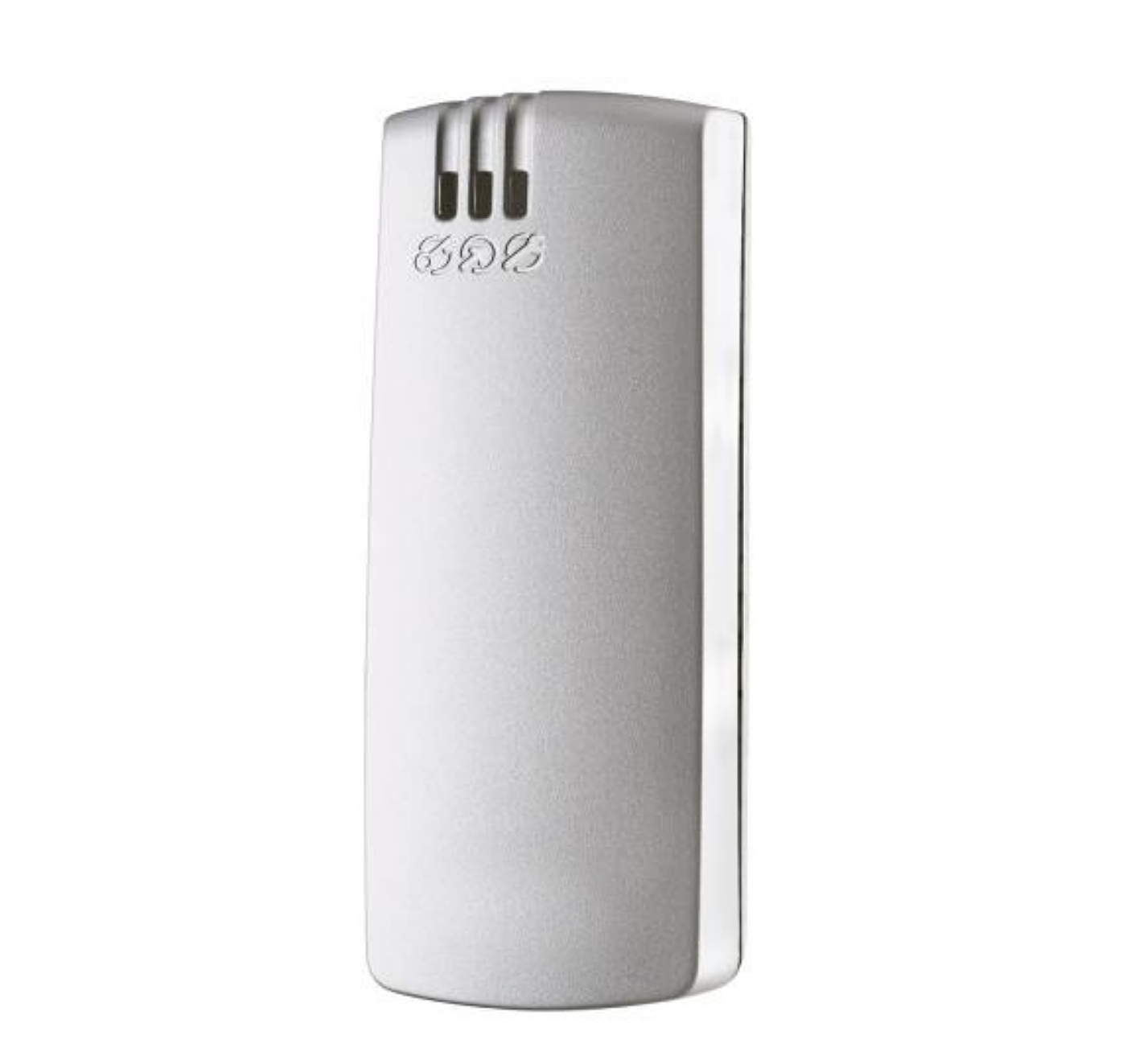

ARS6311-RX Miro/CerPass Card Reader

ARS6311-RX Miro/CerPass Card Reader
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V24246-Z3900-A1
  • EAN/UPC-Code: 4025515474500
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "ARS6311-RX Miro/CerPass Card Reader"
The ARS6311-RX is a compact and economical reader designed for use with all SiPass systems. In combination with the AC6311 I/O board, it can also be used in standalone mode.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.32
Purchase unit PCE
EAN/UPC-Code: 4025515474500
Minimum order 1
ECCN N
Statistical code 84716070
Country of origin PL
Net weight 0.304
Material code V24246-Z3900-A1
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Card compatibility: ABR5100-PR ABR5100-BL ABR5100-TG
Housing protection: IP65
Environment: Indoor & outdoor
Tamper switch: Yes
Tamper protection: Yes
Operating temperature: -25 ~ +60 °C
Colour: Silver (RAL9006)
Current consumption: 32 mA @ 12V DC
Keypad: No
Housing material: ABS plastic
Card read distance: 12 cm (approx.)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz), Vanderbilt Prox
Interface to controller: Clock&Data and Wiegand (26/34/42 bit)
Weight: 0.30kg
Dimensions (W x H x D): 40 x 100 x 25 (mm)
Operating voltage: 10 ~ 16 VDC
Housing protection (EN 60529): IP65
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Housing: ABS plastic
Operation temperature: -25°C ~ +60°C
