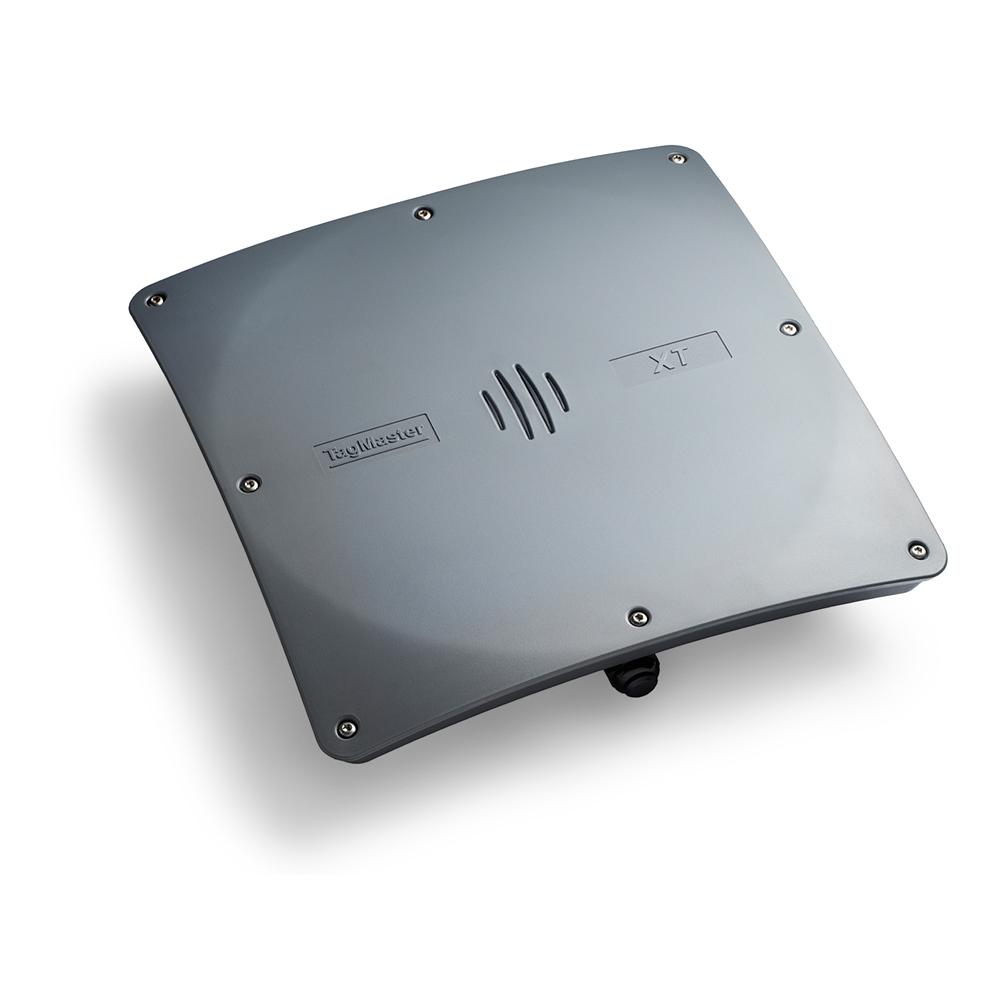

XT-1LR Long Range Reader

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: N54504-Z106-A100

Close menu

Product information "XT-1LR Long Range Reader"

XT-1 and XT Mini are EPC Gen 2 (ISO 18000-63) compliant RFID readers with integrated antennas. Both readers are tailored for Automatic Vehicle Identification applications such as Parking, Gated Communities and Condominiums. As such, the readers are designed for outdoor use and support a large number of interfaces and protocols. While XT-1 is a generic reader with maximum possible read range, XT Mini is optimized for pole mounting close to the vehicle lane.

Close menu

Certificate (CE) - Issued by Supplier, on 29/06/2021

Gross weight (KG)	2.765
Purchase unit	PCE
Minimum order	1
ECCN	N
Country of origin	SE
Material code	N54504-Z106-A100
Net weight	2.600
Statistical code	84719000

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Housing protection:	IP66
Storage temperature:	-40°C ~ +85°C
Housing material:	Aluminium, UL94 certified plastic XENOY™ cover
LED Indicators:	Red/Green/Yellow
Interface to controller:	Wiegand/Clock&Data RS485
Outputs:	3 isolated outputs
Output current:	2W
Inputs:	3 isolated inputs
Operating temperature:	-40°C to +60°C
Frequency:	865.6 MHz - 867.6 MHz
Card read distance:	Up to 8m
Power consumption:	10W (max 12W)
Weight:	2.3kg
Operating voltage:	12-24VDC
Dimensions (L x W x H):	300 x 300 x 60 (mm)
