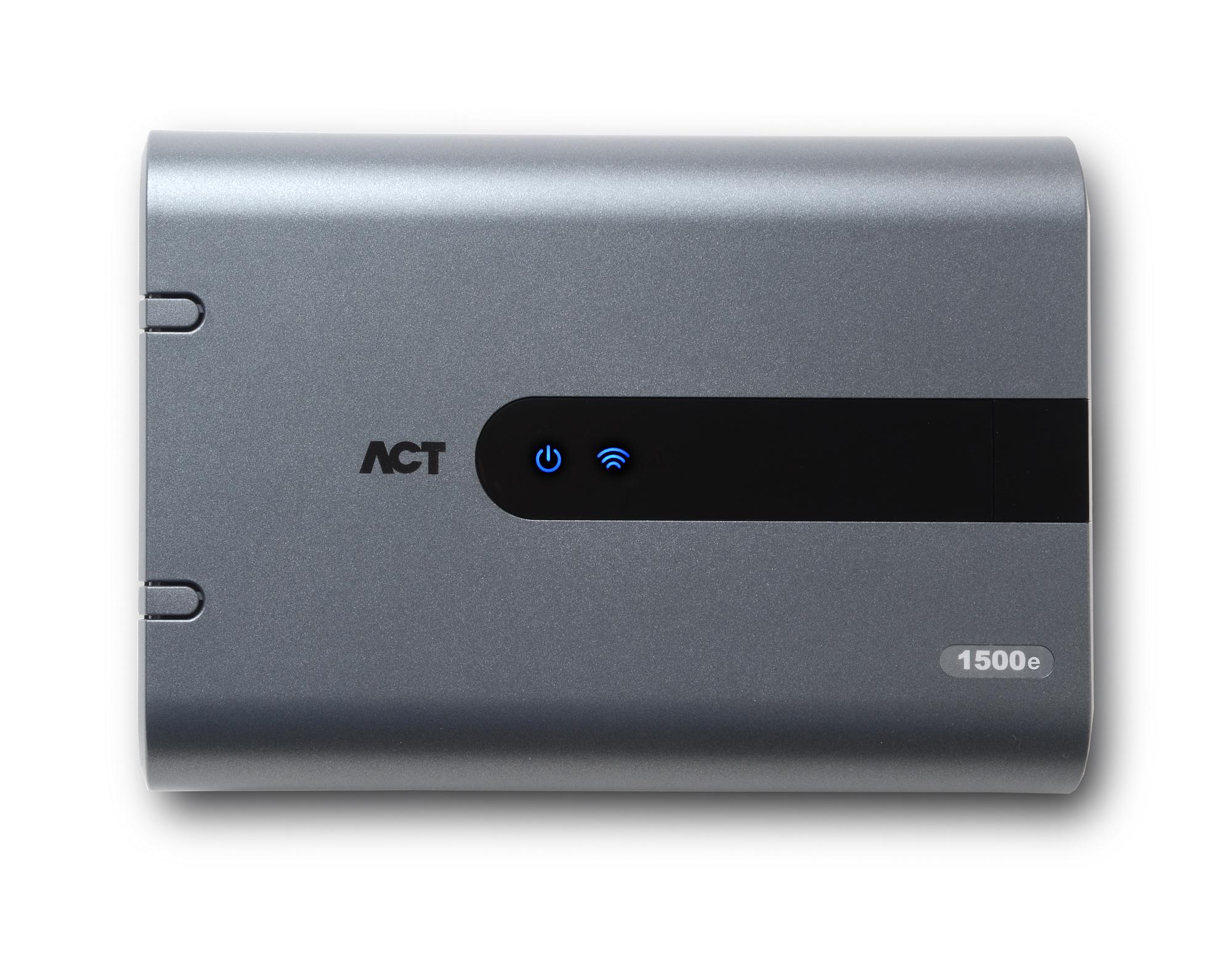

ACTpro-1500 Door Controller

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54502-C111-A100
  • 7330082004539
Product information "ACTpro-1500 Door Controller"
The ACTpro-1500 is a single door IP Controller with a dual-port Ethernet switch. The ACTpro-1500 controller supports 60,000 users, 2,000 User groups, door station technology (ACTpro-100 and ACTpro-120) and wireless locks and is ideal for a single door or for systems that need to grow to thousands of doors.
Gross weight (KG) 0.62
Purchase unit PCE
EAN/UPC-Code: 7330082004539
Minimum order 1
Statistical code 84715000
Material code V54502-C111-A100
Net weight 0.520
Country of origin CN
Dimensions (W x H x D): 235 x 165 x 55 (mm)
Door capacity: 1 ~ 32
Current consumption: 250mA
Compatibility: Microsoft Internet Explorer 8 or 9, Firefox Version 8.0
Area coverage: indoor use only
Users: max 15'000
Tamper protection: break glass monitoring
Operating voltage: 12 VDC
Operating temperature: -10 ~ +50 °C
Weight: 0.52 kg
