temporarily out of stock, please check availability with your local Customer Service team.
- Article number: V54504-F111-A100
- EAN/UPC-Code: 7330082004041

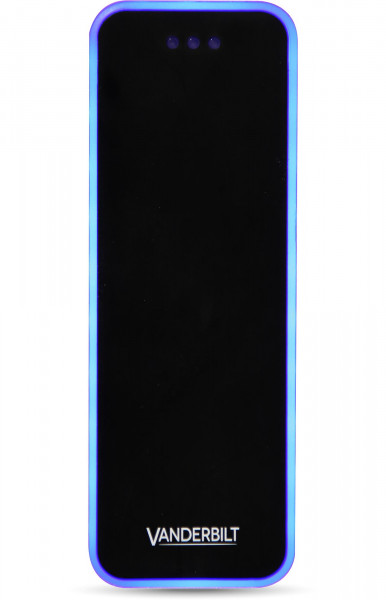

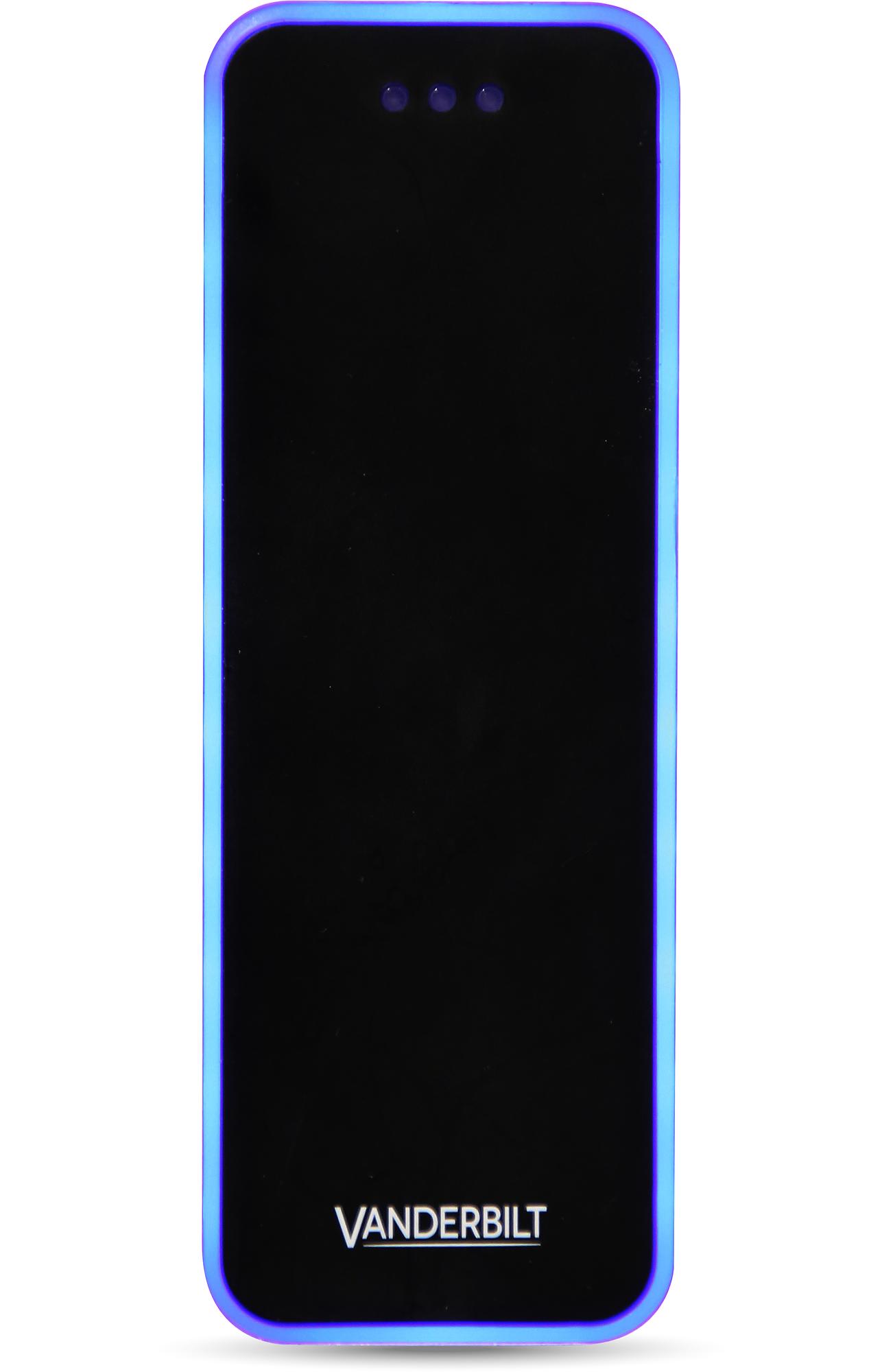

Product information "VR20M-MF NGCR MIFARE EV1 Mullion Reader"

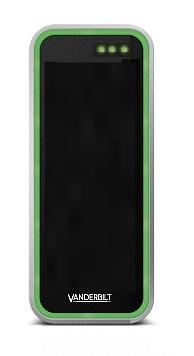

VR Mullion reader - Modern attractive looking reader with hardwearing materials which endure the most challenging weather conditions. Multicolour programmable light frame on all readers which enhance the look and functionality of the reader. The customer can choose colours for each outcome and rest state. OSDP or Wiegand connectivity supporting MIFARE card technology including EV1 and EV2.
|Operating voltage:||8.5 – 30.0 VDC|
|Colour:||Black, matt chrome|
|Housing material:||Zinc casted metal bezel with polycarbonate plastic front|
|Approval:||CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)|
|Air humidity (EN 60721):||5-95% non-condensing|
|Card read distance:||Up to 6 cm|
|Dimensions (L x W x H):||50mm x 130mm x 22mm|
|Indicators:||3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame|
|Interface to controller:||RS485 / Wiegand|
|Power consumption:||DC 12V = 50mA (150mA Peak); DC 24V = 35mA (100mA Peak)|
|Operating temperature:||-40°C to +70°C (surface mounted) -10°C to +70°C (back box mounted)|
|Housing protection:||IP66 (surface mounted) IP3X (back box mounted)|
|Environment:||Indoor or outdoor use|
|Card compatibility:||MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only)|
- Datasheet (English) - VR20M_VR50M Datasheet
- Datasheet (French) - VR20M_VR50M Datasheet
- Datasheet (German) - VR20M_VR50M Datasheet
- Datasheet (Spanish) - VR20M_VR50M Datasheet
- Datasheet (Danish) - VR20M_VR50M Datasheet
- Datasheet (Swedish) - VR20M_VR50M Datasheet
- Quick start guide
- User manual (English) - VR20M_VR50M User manual
- User manual (French) - VR20M_VR50M User manual
- User manual (Swedish) - VR20M_VR50M User manual
- User manual (Spanish) - VR20M_VR50M User manual
- User manual (Danish) - VR20M_VR50M User manual
- User manual (German) - VR20M_VR50M User manual
