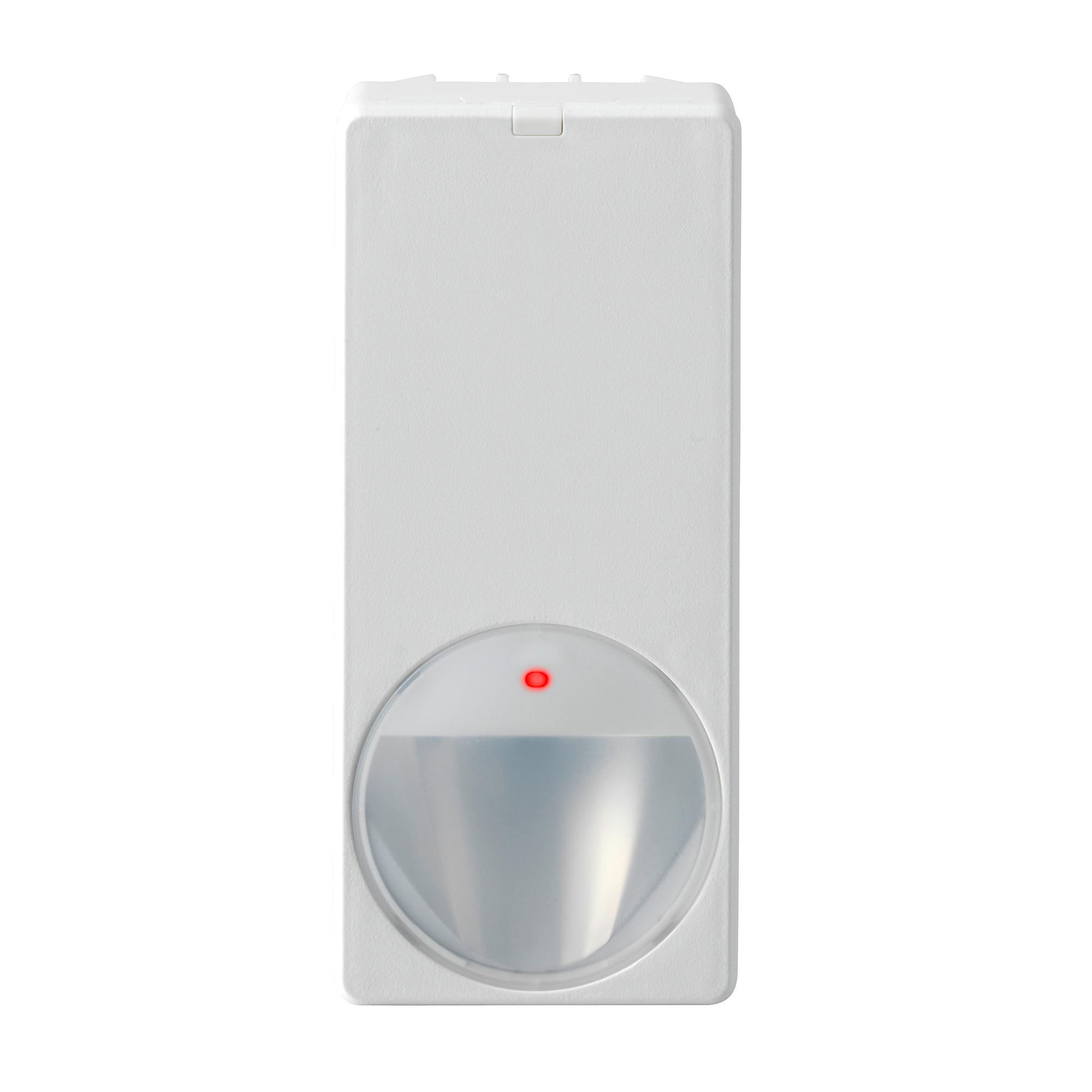

PDM-I12T PIR AM detector

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54530-F105-A100
  • 4025515470373
Product information "PDM-I12T PIR AM detector"
MAGIC motion detector PDM-I12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Gross weight (KG) 0.105
Purchase unit PCE
EAN/UPC-Code: 4025515470373
Minimum order 1
Statistical code 85311030
Country of origin RO
Net weight 0.104
Material code V54530-F105-A100
ECCN EAR99
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Approval: EN50131-2-2 Grade 3 VdS Class C
Colour: RAL9003
Supply voltage: 9 ... 16VDC (12V nom.)
Current consumption: 3.9mA (rms) 6.6mA (max peak)
Outputs: 30VDC / 100mA, NC
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Walking speed: 0.1 ... 4m/s
Sensitivity evaluation mode: 4 settings
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Operating temperature: -10°C …+55°C
Air humidity (EN 60721): < 85% RH, non-condensing
Storage temperature: -20°C …+60°C
Weight: 0.095kg
Dimensions (W x H x D): 57mm x 128mm x 32mm
Housing protection (EN 60529): IP41 / IK02
Pet immunity: Yes (optional)
Optical system: MAGIC mirror
Detection characteristics / range: Volumetric / 12m
