AGB800 Acoustic Glass Break Detector G2

AGB800 Acoustic Glass Break Detector G2
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54535-Z130-A100
  • EAN/UPC-Code: 7330082004034
Description Certificates Import & Export Resources Technical data Documentation Useful Links
Description
Close menu

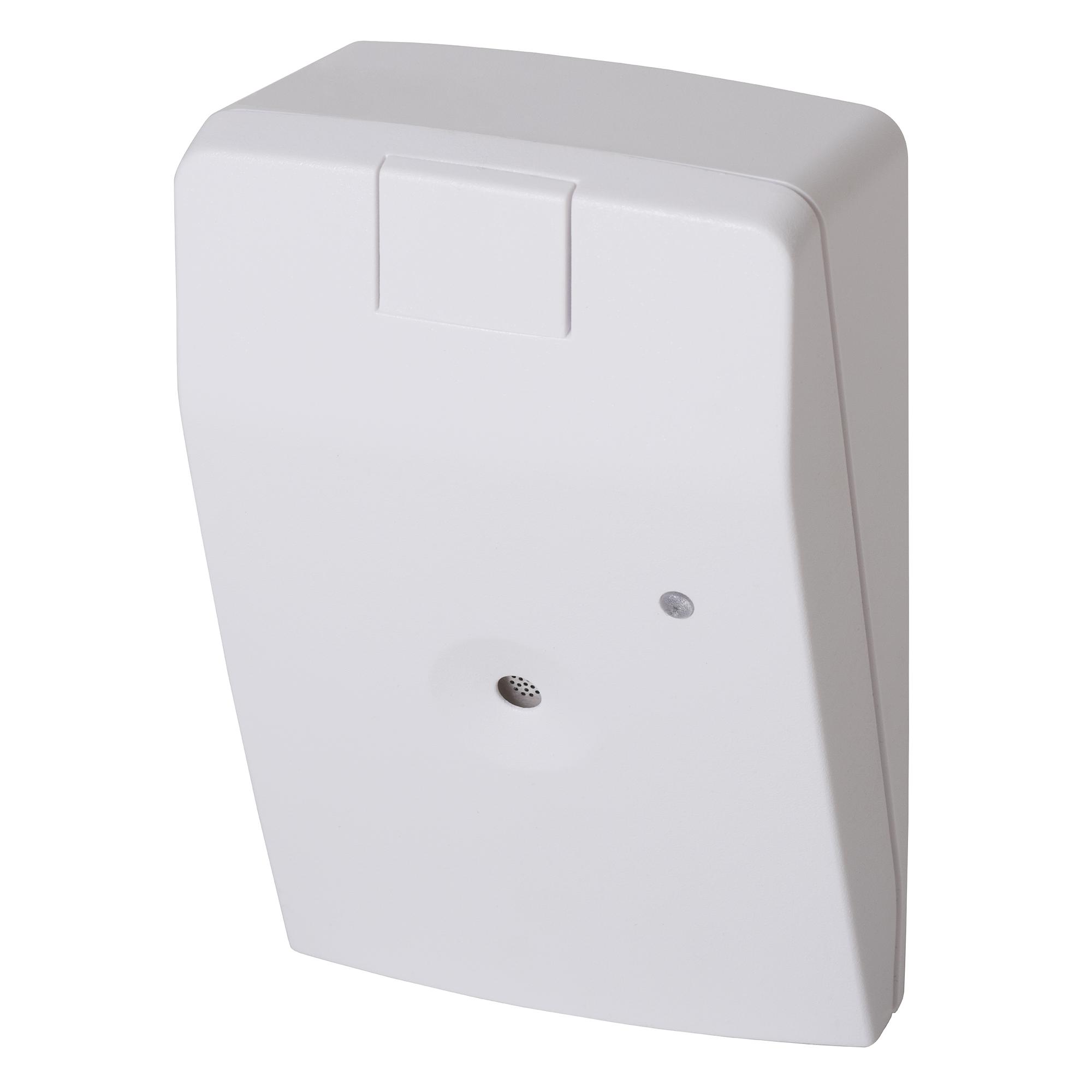

Product information "AGB800 Acoustic Glass Break Detector G2"
The AGB800 is a modern acoustic glass break detector giving an alarm when glass is broken due to attempted intrusion through doors, windows and glazed walls. The detector is based upon the latest technology and has internal filters to avoid unwanted alarms. The DRC Digital Room Compensation feature enables the detector to distinguish between glass breaking and general background noise.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.116
Purchase unit PCE
EAN/UPC-Code: 7330082004034
Minimum order 1
Statistical code 85311030
ECCN EAR99
Material code V54535-Z130-A100
Net weight 0.105
Country of origin PL
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Supply voltage: 7...30VDC
Dimensions (W x H x D): 69 x 110 x 39 (mm)
Tamper switch: 50mA @ 50VDC
Quiescent current: 9mA @ 12VDC 6mA @ 24VDC
Current consumption, quiescent: 9mA @ 12VDC 6mA @ 24VDC
Housing material: ABS plastic, white
Environmental class: Class 1
Weight: 0.126Kg
Approval: EN50131-2-7-1 Grade 2 VdS Class B G117505
Tamper contact: 50mA @ 50VDC
Alarm output: 50mA @ 50VDC
Range: 9.0m @ 165º
Current consumption: Alarm - 9mA @ 12VDC Alarm - 6mA @ 24VDC
Operating temperature: 5 ~ +40ºC
