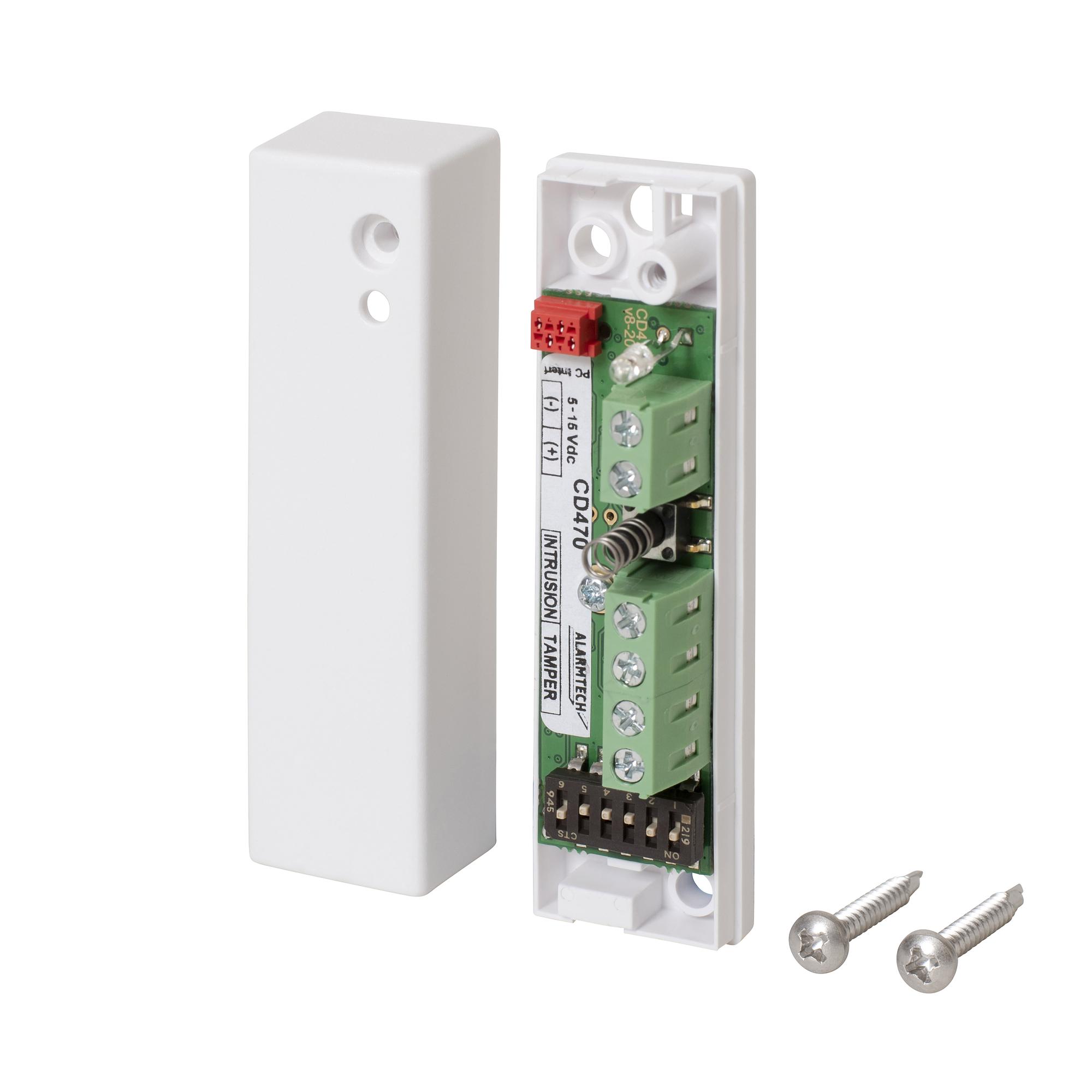

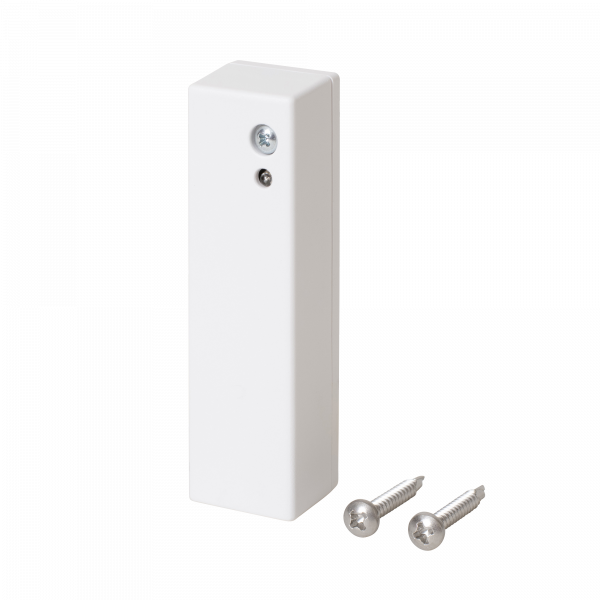

ES470 Shock and Vibration Sensor

Preview: ES470 Shock and Vibration Sensor Preview: ES470 Shock and Vibration Sensor
ES470 Shock and Vibration Sensor
ES470 Shock and Vibration Sensor

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54543-Z109-A100
  • EAN/UPC-Code: 7330082005901
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "ES470 Shock and Vibration Sensor"
The ES470 is a vibration/shock sensor that offers reliable monitoring for three different types of attack. (I) An integration channel for weak attack signals over a long duration (II) A counter channel that monitors the amount of stronger signals (III) A gross attack channel for a very strong signal The ES470 connects direct to a standard detection zone and does not require a dedicated interface unit. The ES470 has a detection radius of up to 3m and numerous European approvals. The ES470 has independent outputs for alarm <(>&<)> tamper and a sensitivity adjustment for precise monitoring.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.031
Purchase unit PCE
EAN/UPC-Code: 7330082005901
Minimum order 1
ECCN N
Net weight 0.022
Material code V54543-Z109-A100
Statistical code 85319000
Country of origin PL
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: -40C ~ +55C
Dimensions (W x H x D): 23 x 20 x 80 (mm)
Tamper protection: Lid & removal
Approval: EN50131-2-8 Grade 3
Operating voltage: 8 - 15 VDC
