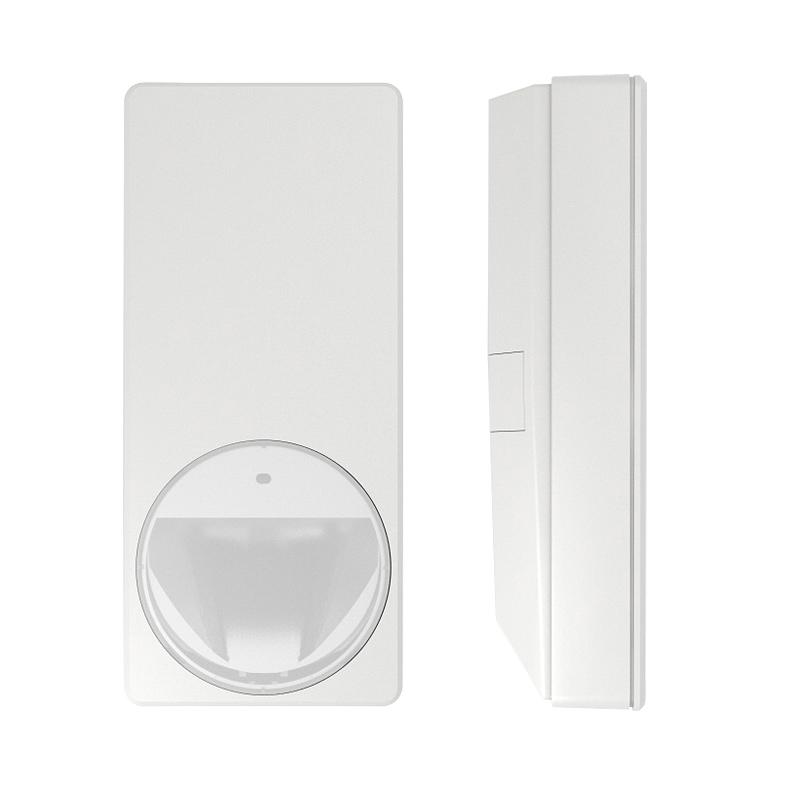

PDM-E-I12 E-Bus PIR detector

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V54530-F115-A100
EAN/UPC-Code: 4025515470410

Close menu

Product information "PDM-E-I12 E-Bus PIR detector"

MAGIC motion detector PDM-E-I12 utilizes the patented MAGIC Mirror technology, which sets new standards in detection sensitivity and enables an extremely compact design. The innovative dual mirror design increases the focal length, which gives the detectors more homogeneous detection sensitivity, especially for wider areas. A new integrated white-light filtering system reduces false alarms caused by external light sources such as car headlights or lamps. All MAGIC BUS models are designed as addressable detectors on the E-BUS communication interface - a 2-wire serial BUS with multi-master properties. This dramatically reduces wiring, installation equipment and labor costs, while providing benefits of remote services. Each MAGIC BUS detector also includes an additional zone input for convenient connection of an additional external device, saving time and effort of having to wire back to the panel.

Close menu

Gross weight (KG)	0.15
Purchase unit	PCE
EAN/UPC-Code:	4025515470410
Minimum order	1
Statistical code	85311030
ECCN	EAR99
Country of origin	RO
Net weight	0.143
Material code	V54530-F115-A100

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Outputs:	Output 1: For internal detector set/unset or external detector (e.g. glass break detector) free programmable Output 2: For internal detector walktest
Supply voltage:	Via E-Bus 9VDC ~ 16VDC
Current consumption:	3.7mA 5.7mA (With 2x 4.7kΩ EOL on input)
Output current:	2 x 120mA, R = 35Ω
Sensitivity evaluation mode:	4 settings
Control input:	Programmable
Inputs:	Input 1: 1R/2R 4.7 kΩ, NO, NC and glass break detector Input 2: 1R/2R 4.7 kΩ, NO, NC Input 3: 2R 4.7 kΩ, internal detector alarm and tamper Input 4: not used
Walking speed:	0.2m/s ~ 3.0m/s
Approval:	EN50131-2-2 Grade 2 VdS Class B PD6662
Housing protection (EN 60529):	IP41 / IK02
Air humidity (EN 60721):	< 95%rh, non-condensing
Operating temperature:	-10°C ~ 55°C
Storage temperature:	-20°C ~ 60°C
Weight:	0.110kg
Pet immunity:	Yes (optional)
Optical system:	MAGIC mirror
Detection characteristics / range:	Volumetric / 12m
Field bus:	E-Bus
Dimensions (W x H x D):	57 x 128 x 32 (mm)
