WKP-SIM keypad with fobs

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54543-F154-A100
  • 7330082005147
Product information "WKP-SIM keypad with fobs"

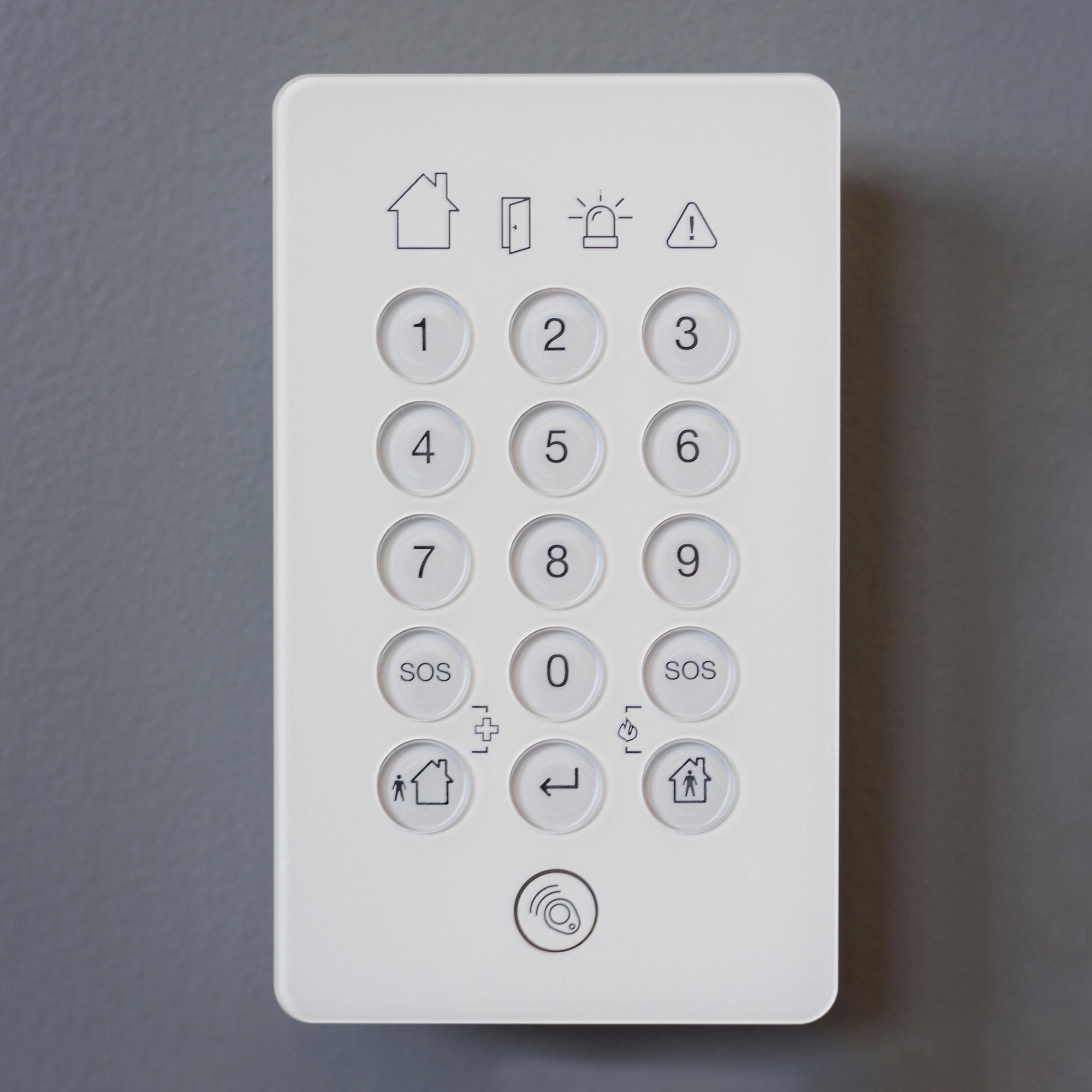

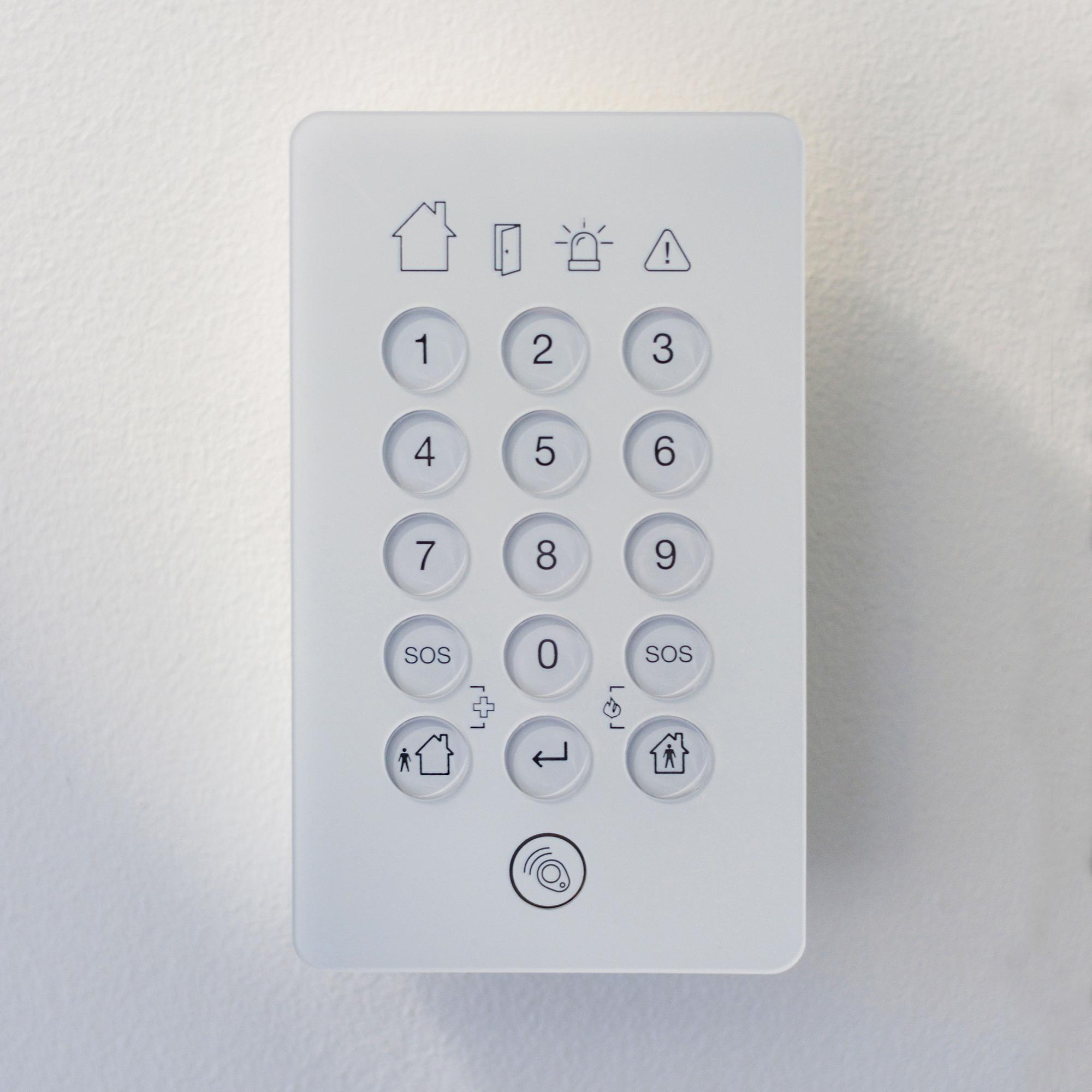

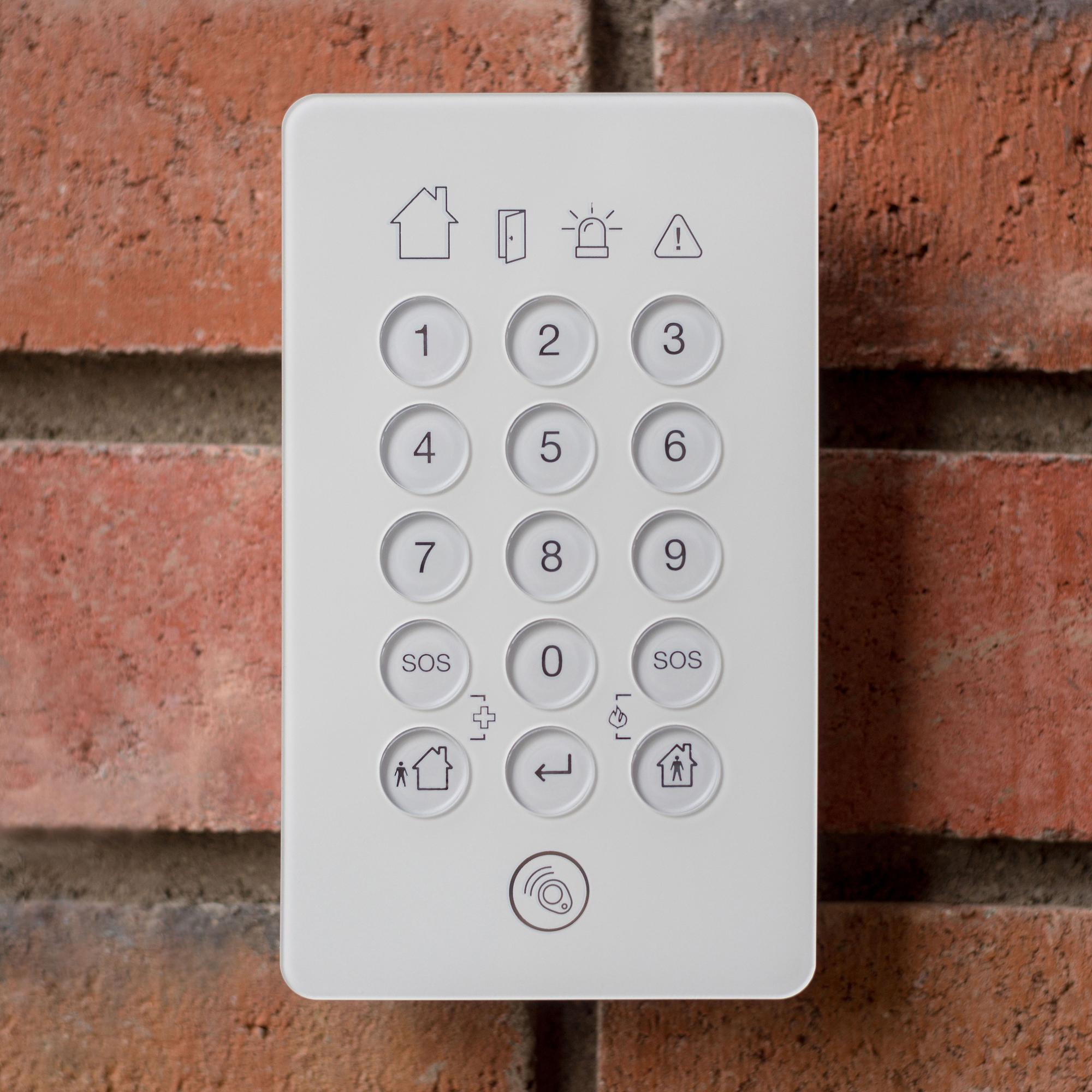

The WKPD-SIM is a wireless keypad for controlling and indicating the status of the SPC 2 way wireless system. The keypad has panic functions for attack, fire and medical. The keypad is easy to install and the enrollment onto the SPC system is a fast process. Keypad is supplied with 2 fobs for setting and unsetting of the system.
Gross weight (KG) 0.245
Purchase unit PCE
EAN/UPC-Code: 7330082005147
Minimum order 1
Material code V54543-F154-A100
Net weight 0.195
Statistical code 85311030
Country of origin IL
Operating temperature: -10°C to +55°C
LED Indicators: Multi-coloured LED indications
Tamper protection: Lid opening and removal
Current consumption: Standby ~4 μA Transmission~28 mA Average ~10 mA
Audio outputs: 80dB at 1 metre
Weight: 200g including battery
Range: 500m transmission range in open space
Power supply: WKP-SIM: 2 x AA Lithium batteries, type L91
Frequency: 868-869 MHz
Dimensions (W x H x D): 143mm x 85mm x 20mm
Battery: Up to 3 Years of life
Protection rating: -IPxx/IK06
