Product information "SPCE110.100 Key Switch Expander"

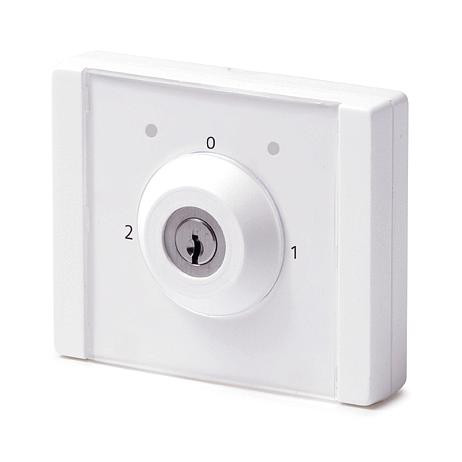

The SPCE110.100 is a universal key switch expander with 2 tri-color LEDs, a 3-position key switch and buzzer. The freely programmable user interface indicates the configured status information with LEDs (e.g. key switch position, area setting states) and enables activation of application specific processes by changing the key switch position (e.g. unlock keypad or indication expander, setting of an area, open or close a gate). The expander also provides one freely programmable volt free relay output with either NO or NC terminal. The key switch is delivered with a standard cylinder and should can be replaced.
|Quiescent current:||Max. 30 mA at 12 VDC|
|Operating current:||Max. 50 mA at 12 VDC (relay and LEDs operated)|
|Operating voltage:||9.5 - 14 VDC|
|LED Indicators:||2 tri-color LEDs|
|Number of on-board relays:||1 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)|
|Approval:||EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C|
|Housing:||Plastic housing (Polycarbonate)|
|Tamper contact:||Front / back tamper|
|Colour:||RAL 9003 (signal white)|
|Mounting:||Flat surface, wall-mounted|
|Interfaces:||X-BUS (in, out)|
|Operating temperature:||-10 ~ +50 °C|
