WGB Wireless Glass Break Detector

Preview: WGB Wireless Glass Break Detector Preview: WGB Wireless Glass Break Detector
WGB Wireless Glass Break Detector
WGB Wireless Glass Break Detector

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54538-F117-A100
  • EAN/UPC-Code: 7330082005000
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu

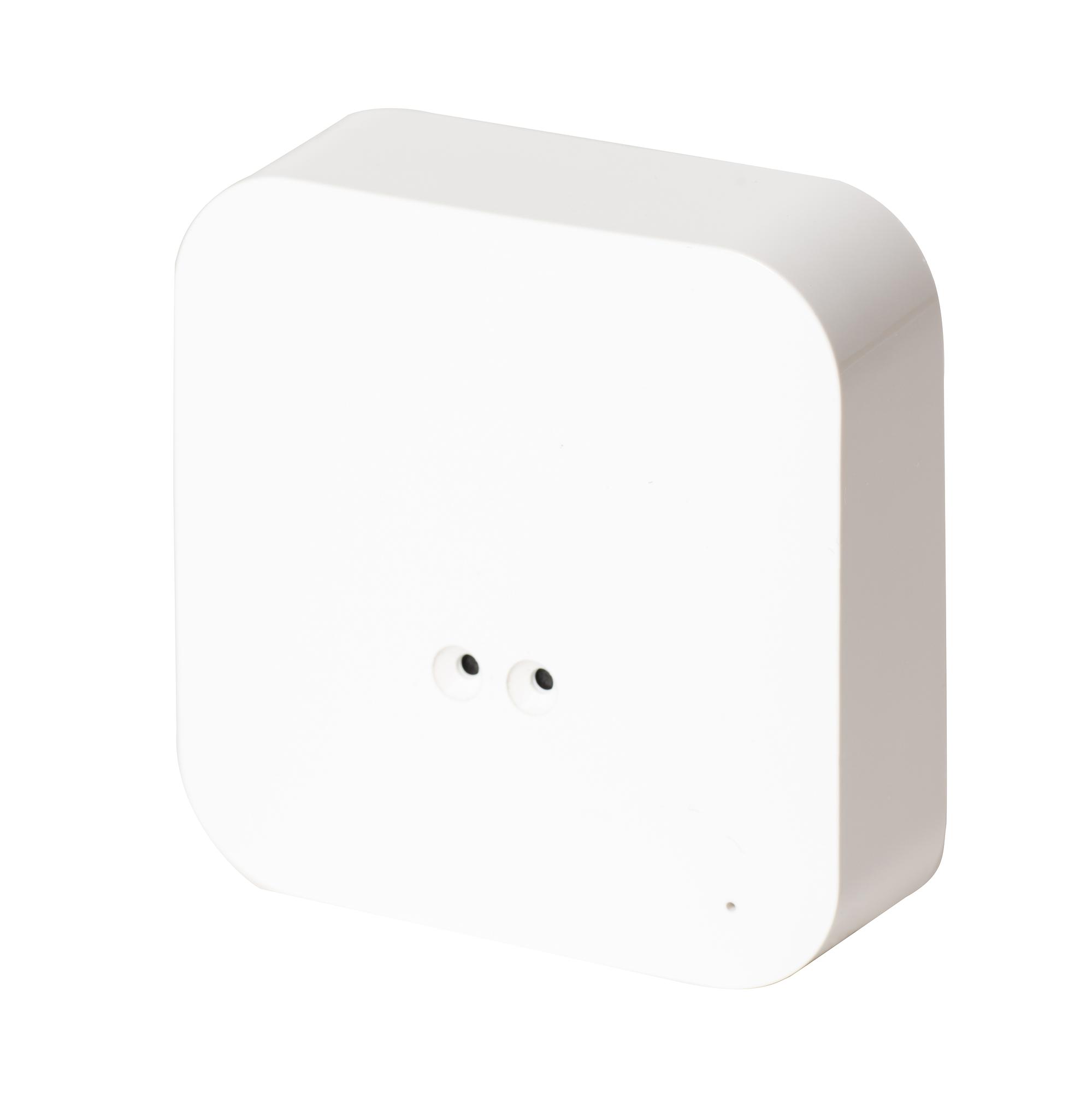

Product information "WGB Wireless Glass Break Detector"
The WGB is a wireless, acoustic glass break detector. The detector is activated by the high <(>&<)> low frequencies created by the breaking and falling glass, which providesr reliable detection up to 8m from the target glass. All configuration is performed via the wirelss communications.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.11
Purchase unit PCE
EAN/UPC-Code: 7330082005000
Minimum order 1
ECCN N
Net weight 0.075
Material code V54538-F117-A100
Statistical code 85311030
Country of origin IL
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
LED Indicators: Red/Green LED: Enrollment activation Red LED: Alarm & Walk Test
Operating temperature: -10°C to +50°C
Detection characteristics / range: Dual frequencies for glass breaking
Current consumption: Standby -11µA Receive mode -24mA Transmit mode -45mA
Range: 500m transmission range in open space
Frequency: 868 MHz
Weight: 100g Nett
