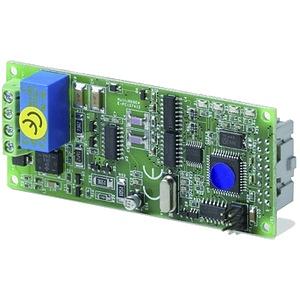

SPCN110.000 PSTN Module. V90

SPCN110.000 PSTN Module. V90
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54550-B101-A100
  • EAN/UPC-Code: 4025515471097
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "SPCN110.000 PSTN Module. V90"
The SPCN110.000 PSTN module (up to 56K) is compatible with the complete SPC panel range and plugs directly on the main PCB removing the need for any additional wiring. The modem can take control of the line and communicates with a central station (ARC) using common format protocols (SIA, Contact ID). It also supports PPP connection to acre Intrusion Connect Pro software for remote programming and configuration up-/download. The PSTN modem can be used as the primary source of communication or as backup to GSM modem.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.09
Purchase unit PCE
EAN/UPC-Code: 4025515471097
Minimum order 1
ECCN N
Net weight 0.086
Material code V54550-B101-A100
Statistical code 85311030
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Quiescent current: Max. 25 mA at 12 VDC
Operating current: Max. 35 mA at 12 VDC (communication active)
Weight: 0.030 kg
Mounting: Plug on module to SPC controller
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 90 x 38 x 25 (mm) (PCB)
