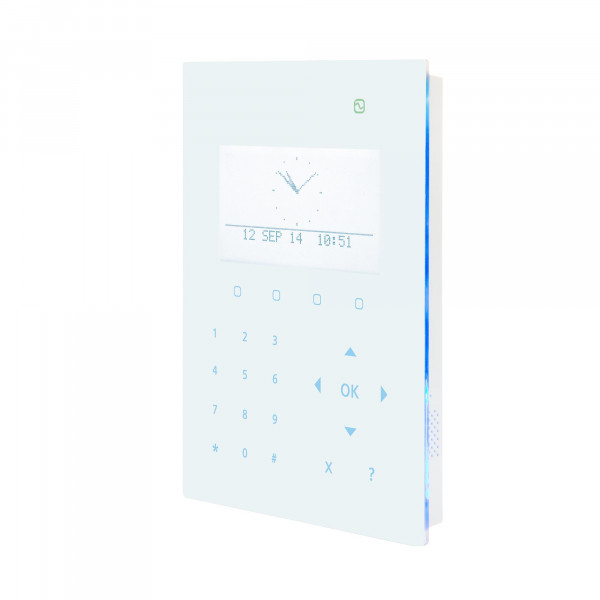

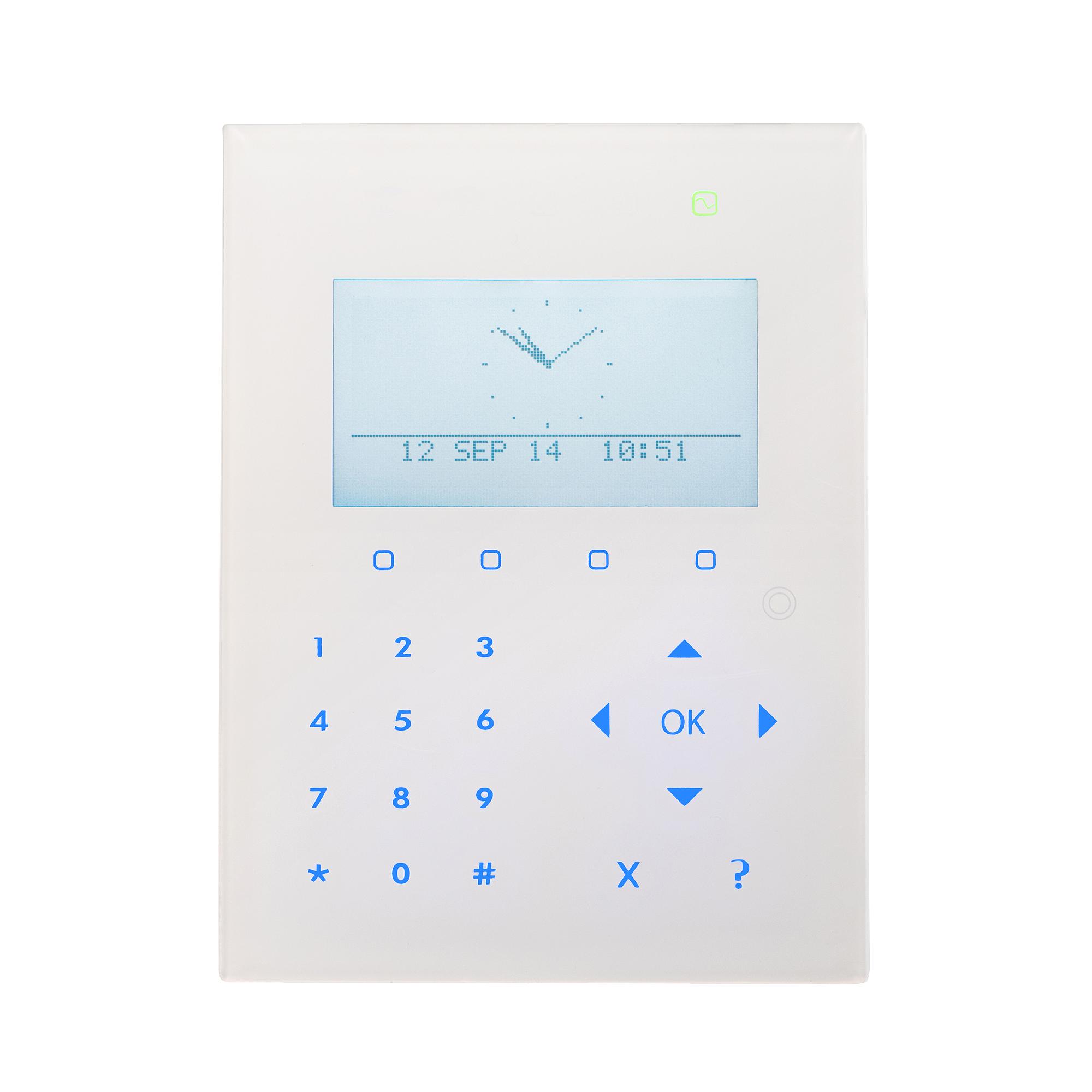

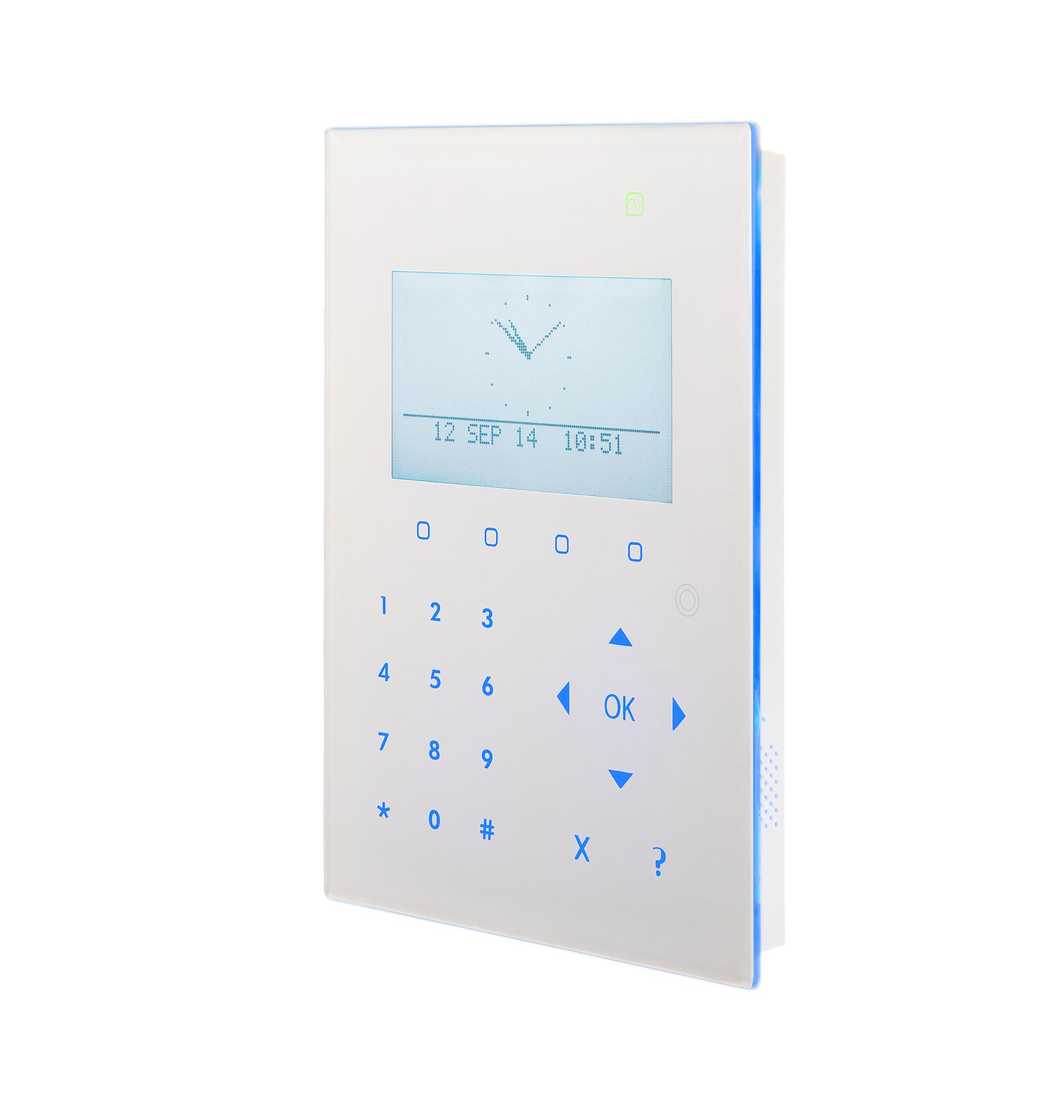

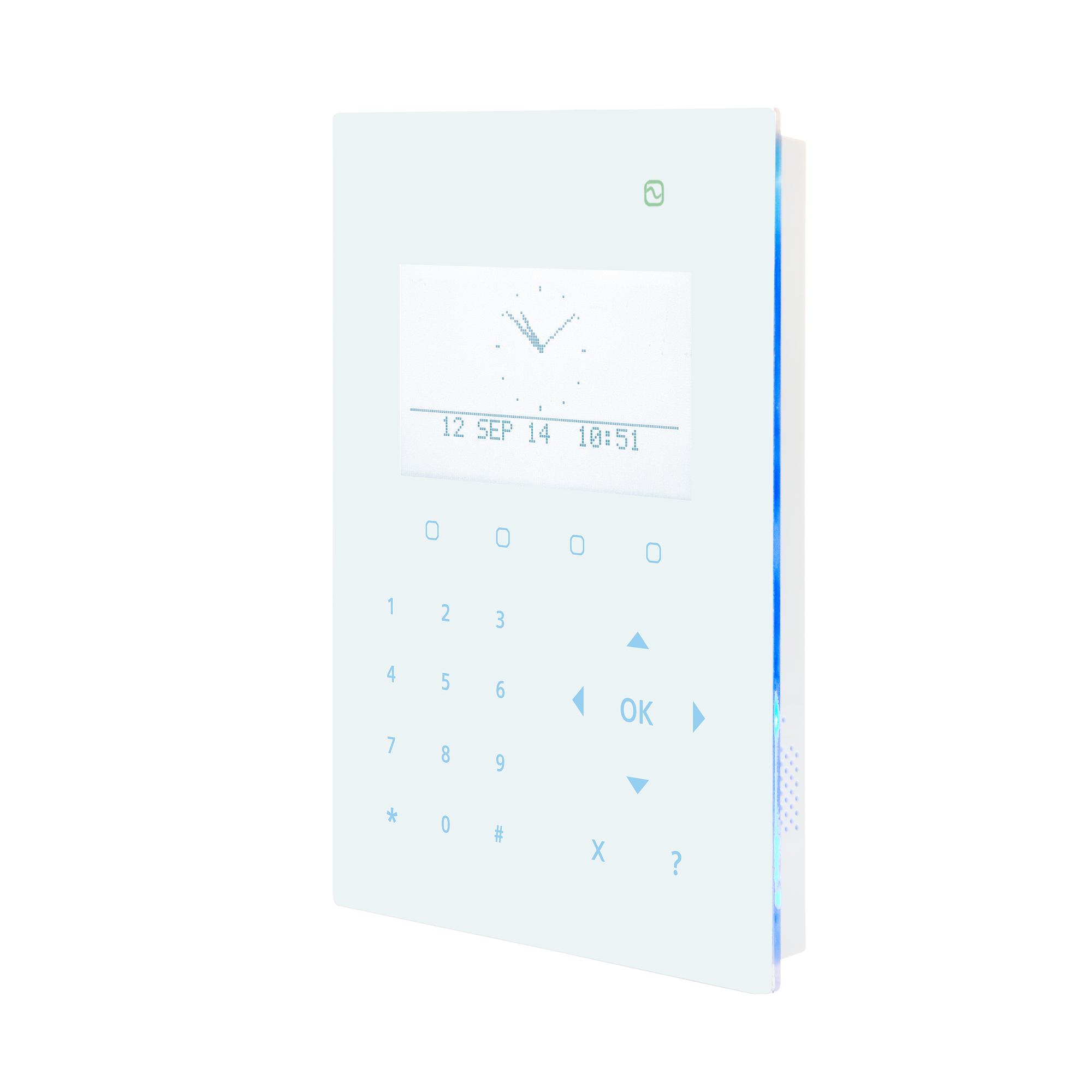

SPCK520.100-N Compact Keypad Neu.

Preview: SPCK520.100-N Compact Keypad Neu. Preview: SPCK520.100-N Compact Keypad Neu. Preview: SPCK520.100-N Compact Keypad Neu. Preview: SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.
SPCK520.100-N Compact Keypad Neu.

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54543-F115-A100
  • EAN/UPC-Code: 4025515470984
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCK520.100-N Compact Keypad Neu."
The SPCK520.100-N Compact Keypad is slim, stylish and feature packed. With touch key technology, the 4 soft keys and navigation keys allow easy operation with a minimum number of steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. The integrated speaker enhances the user experience with audio annunciation. Customer logo, emergency or quick set functions can be displayed in idle state. Various mounting options and accessories provide a complete keypad interface.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.325
Purchase unit PCE
EAN/UPC-Code: 4025515470984
Minimum order 1
ECCN N
Material code V54543-F115-A100
Statistical code 85311030
Net weight 0.309
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Interfaces: X-BUS (in, out)
Housing: Plastic housing (PMMA, PC ABS, ABS)
Weight: 0.250 kg
Mounting: Flat surface, wall-mounted or flush mounted using SPCY520 / SPCY521
Operating current: Max. 210 mA at 12 VDC (backlight, LEDs, voice annunciation operated)
Audio: Supported via integrated speaker
Keypad: Touch key technology
Operating temperature: 5 ~ +40 °C
Quiescent current: Max. 55 mA at 12 VDC
LED Indicators: 5 status LEDs
LCD Display: 128 x 64 pixels (approx. 6 x 20 characters)
Tamper contact: Front / back tamper
Colour: RAL 9003 (signal white)
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 110 x 150 x 17.5 (mm)
