SPCE452.100 Expander.8 relays,backtamp.

SPCE452.100 Expander.8 relays,backtamp.
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54542-F107-A100
  • EAN/UPC-Code: 4025515470861
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCE452.100 Expander.8 relays,backtamp."

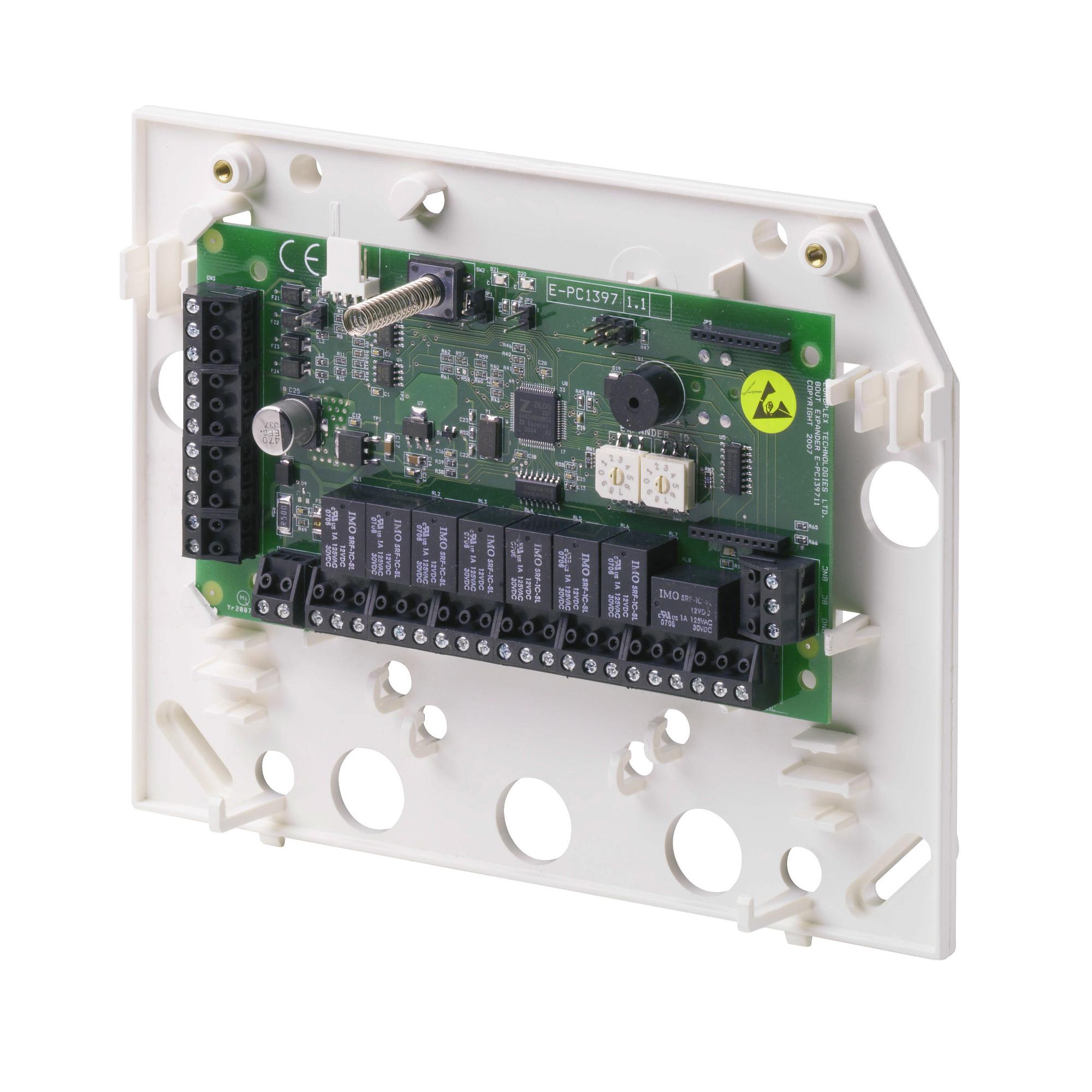

The SPCE452.100 expander extends the acre Intrusion system via X-BUS with 8 fully programmable relay outputs. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front and back tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.6
Purchase unit PCE
EAN/UPC-Code: 4025515470861
Minimum order 1
ECCN N
Material code V54542-F107-A100
Statistical code 85311030
Net weight 0.570
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Quiescent current: Max. 40 mA at 12V DC
Operating current: Max. 190 mA at 12 VDC (all relays activated)
Number of on-board relays: 8 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Tamper contact: Front spring tamper, back tamper
Interfaces: X-BUS (in, out, branch)
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 °C
Weight: 0.400 kg
Dimensions (W x H x D): 200 x 153 x 47 (mm) (housing) 150 x 82 x 20 (mm) (PCB)
