SPCW130.100 SiWay RF-Expander

Preview: SPCW130.100 SiWay RF-Expander Preview: SPCW130.100 SiWay RF-Expander Preview: SPCW130.100 SiWay RF-Expander Preview: SPCW130.100 SiWay RF-Expander Preview: SPCW130.100 SiWay RF-Expander Preview: SPCW130.100 SiWay RF-Expander Preview: SPCW130.100 SiWay RF-Expander Preview: SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander
SPCW130.100 SiWay RF-Expander

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54554-F101-B100
  • EAN/UPC-Code: 4025515471196
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "SPCW130.100 SiWay RF-Expander"

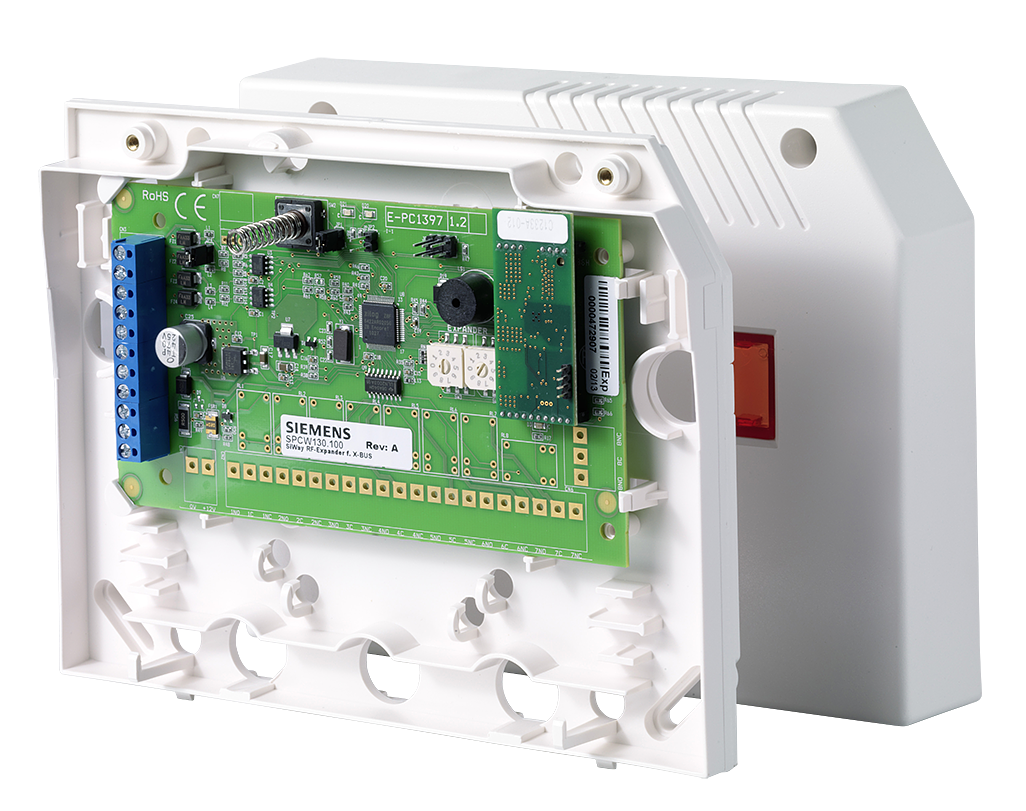

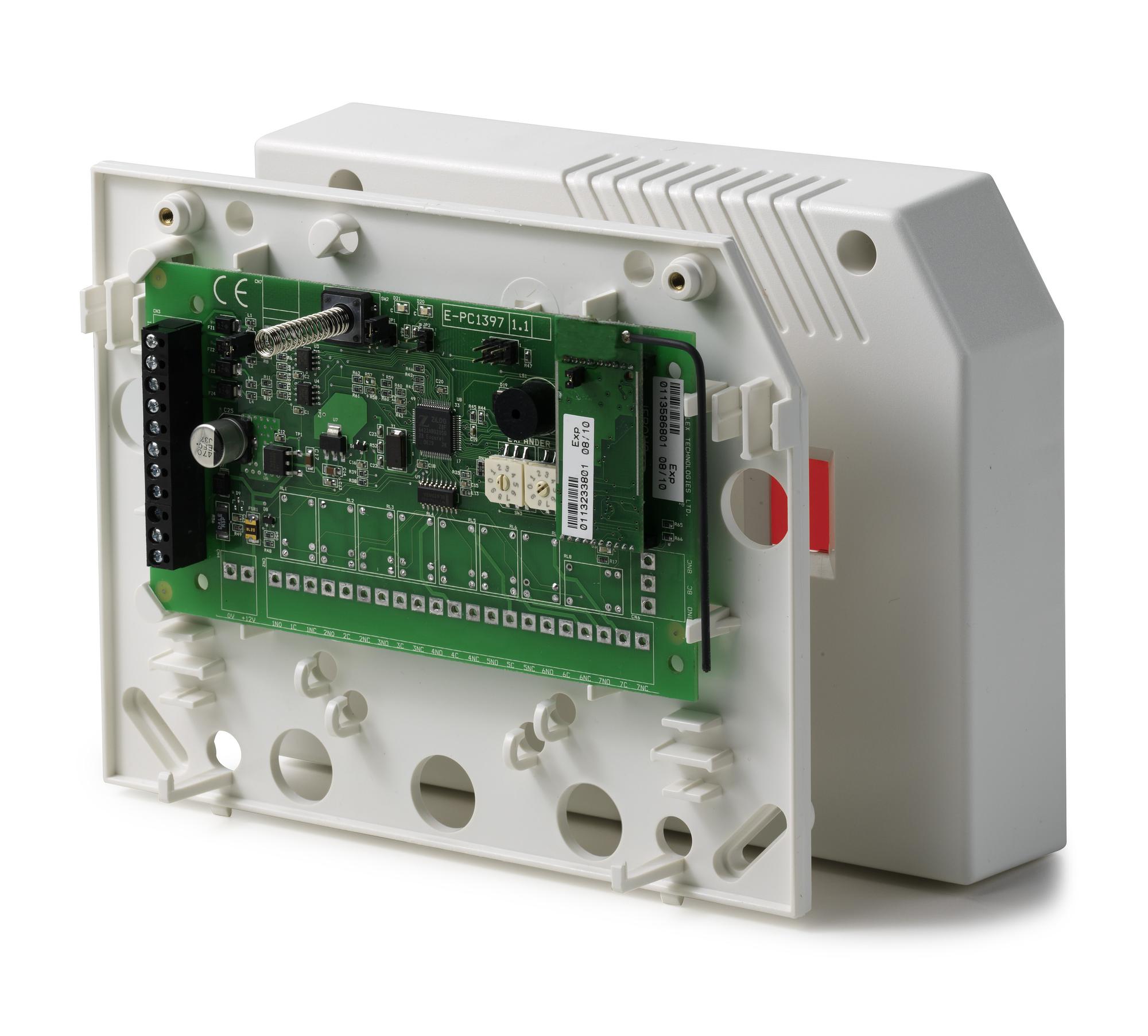

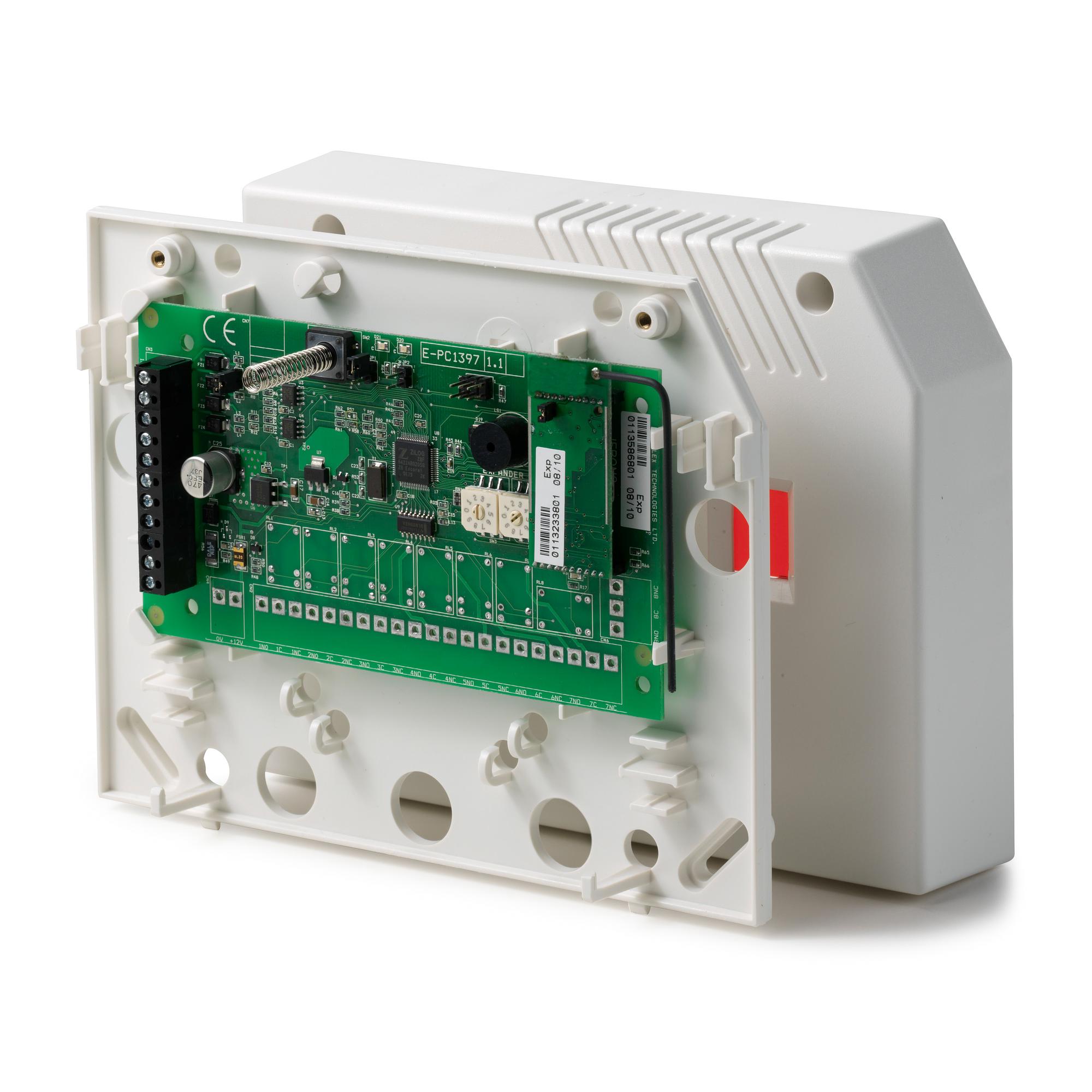

The SPCW130.100 SiWay RF-expander is connected to the X-BUS and provides a wireless access point for the Intrunet wireless detectors and remote controls linked to the system.The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.4
Purchase unit PCE
EAN/UPC-Code: 4025515471196
Minimum order 1
ECCN N
Material code V54554-F101-B100
Statistical code 85311030
Net weight 0.380
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Quiescent current: Max. 60 mA at 12 VDC
Operating current: Max. 60 mA at 12 VDC
Weight: 0.340 kg
Interfaces: X-BUS (in, out, branch)
Tamper contact: Front spring tamper
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Tamper switch: Ja
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 200 x 153 x 47 (mm) (housing),150 x 82 x 20 mm (PCB)
