WMAG-I Wrls. Magnetic Contact w. input

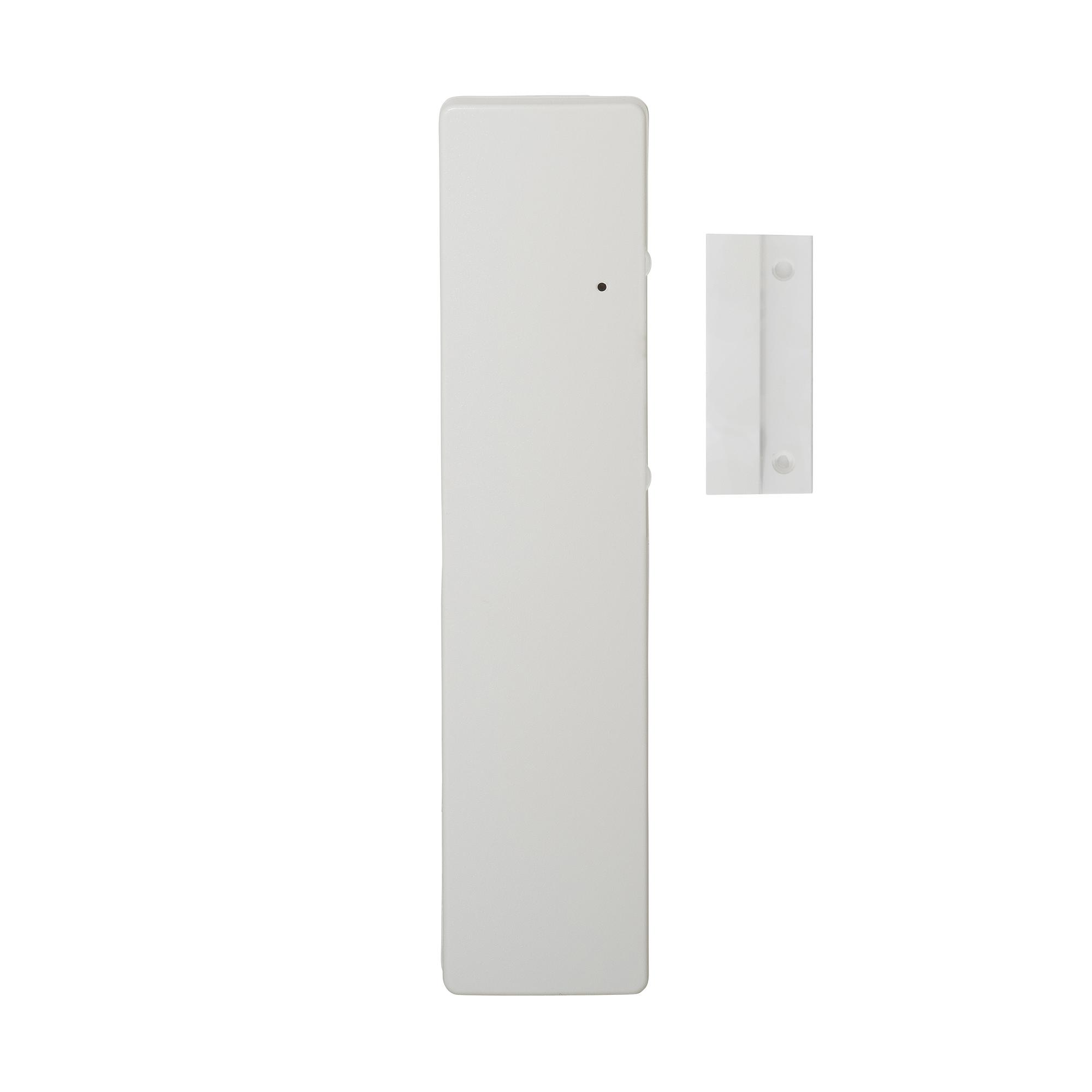

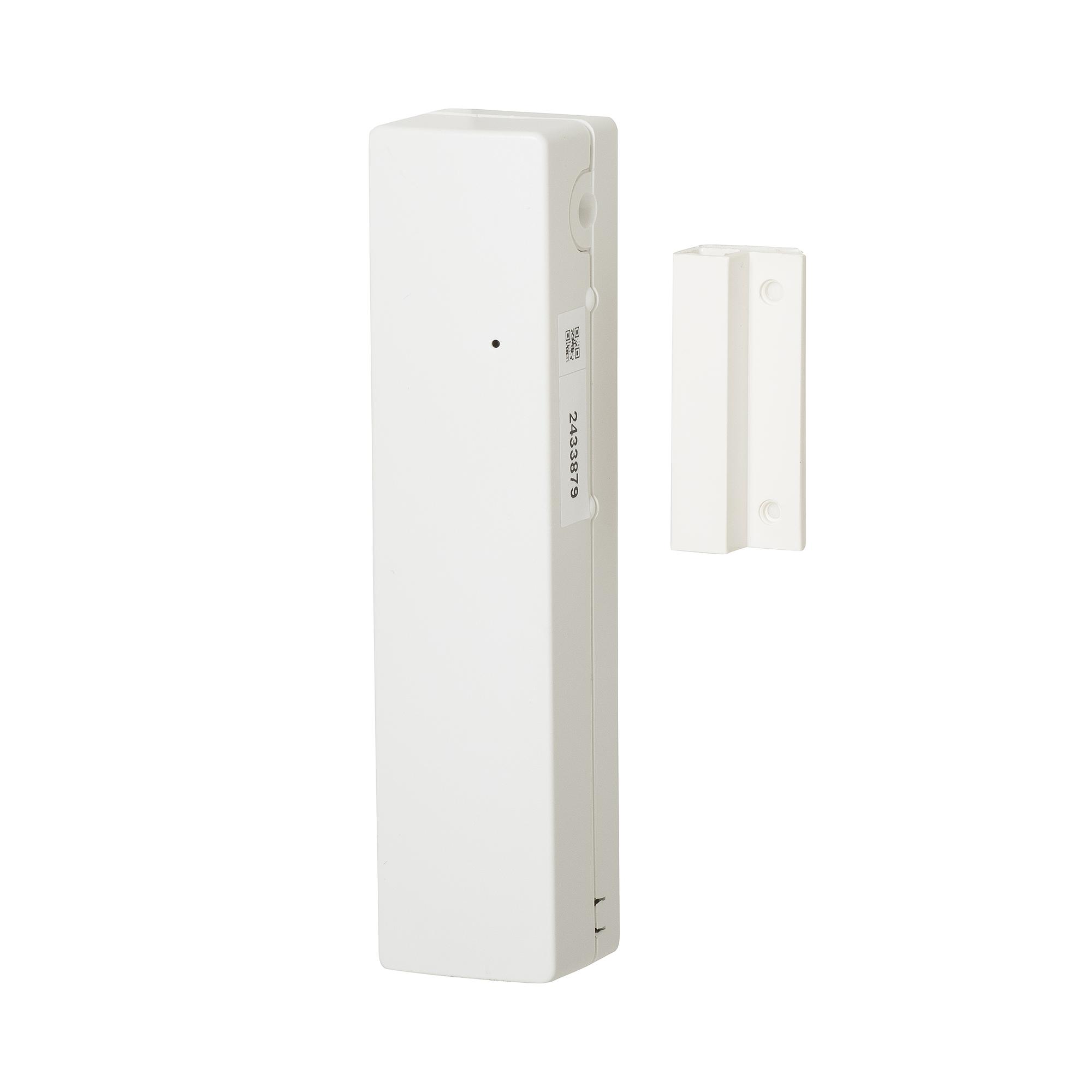

Preview: WMAG-I Wrls. Magnetic Contact w. input Preview: WMAG-I Wrls. Magnetic Contact w. input
WMAG-I Wrls. Magnetic Contact w. input
WMAG-I Wrls. Magnetic Contact w. input

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54538-F114-A300
  • EAN/UPC-Code: 7330082007110
Description Import & Export Resources Technical data Documentation
Description
Close menu
Product information "WMAG-I Wrls. Magnetic Contact w. input"

Import & Export
Gross weight (KG) 0.055
Purchase unit PCE
EAN/UPC-Code: 7330082007110
Minimum order 1
Statistical code 85311030
Material code V54538-F114-A300
ECCN EAR99
Net weight 0.050
Country of origin IL
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Current consumption: Standby : 9µA Receive mode : 10mA Transmit mode : 45mA
Weight: 100g (battery included)
Dimensions (L x W x H): 97 x 23 x 22mm
Power supply: 1 x Surikata CR123A
Frequency: 868-869MHz
Operating temperature: -10°C to +50°C
Range: open air range up to 1200m
Documentation
Close menu
