IR261 PIR motion detector

IR261 PIR motion detector
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: VBPZ:5667770001
  • EAN/UPC-Code: 4025515475668
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu

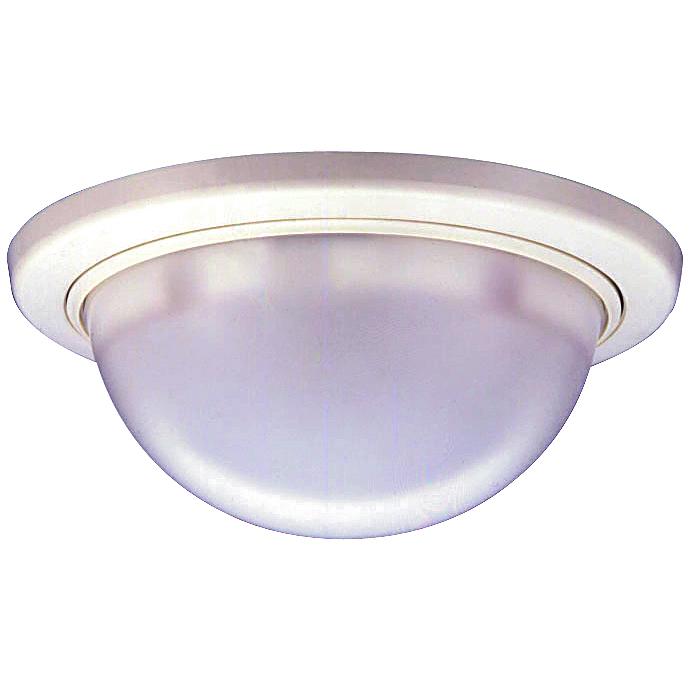

Product information "IR261 PIR motion detector"
A ceiling-mounted passive infrared detector providing 360 degrees of protection. The compact design; complete with neutral colours provides unobtrusive and flexible detection for most internal applications. Flexible and simple set up options provide increased coverage with reliable detection.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.2
Purchase unit PCE
EAN/UPC-Code: 4025515475668
Minimum order 1
Statistical code 85318070
Material code VBPZ:5667770001
ECCN EAR99
Net weight 0.190
Country of origin VN
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Housing protection: IP41
Supply voltage: 10.5 à 18 Vcc
Power requirements: 10 ~ 18 VDC
Weight: 0.130 kg
Alarm relay output (NO/NC): Link selectable
Sensitivity adjustment: 4 levels (1 - 4 triggers) before alarm Link selectable
Range: 18 m diameter
Current consumption: <25 mA max quiescent <35 mA max alarm LED
Operating temperature: 15 ~ + 55 º C
Documentation
