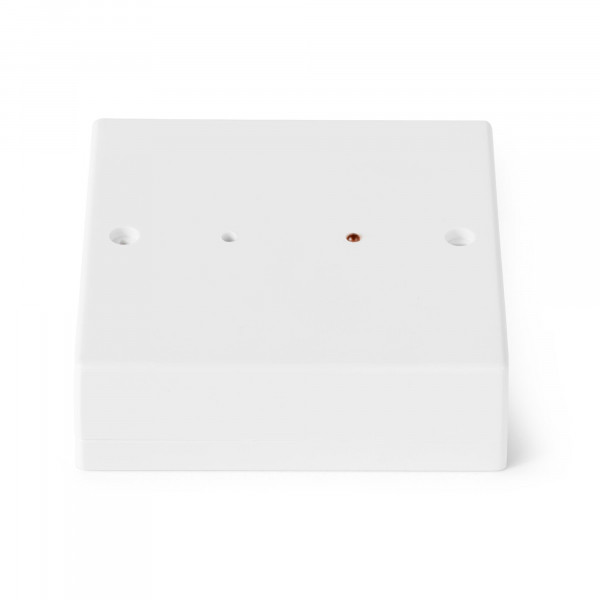

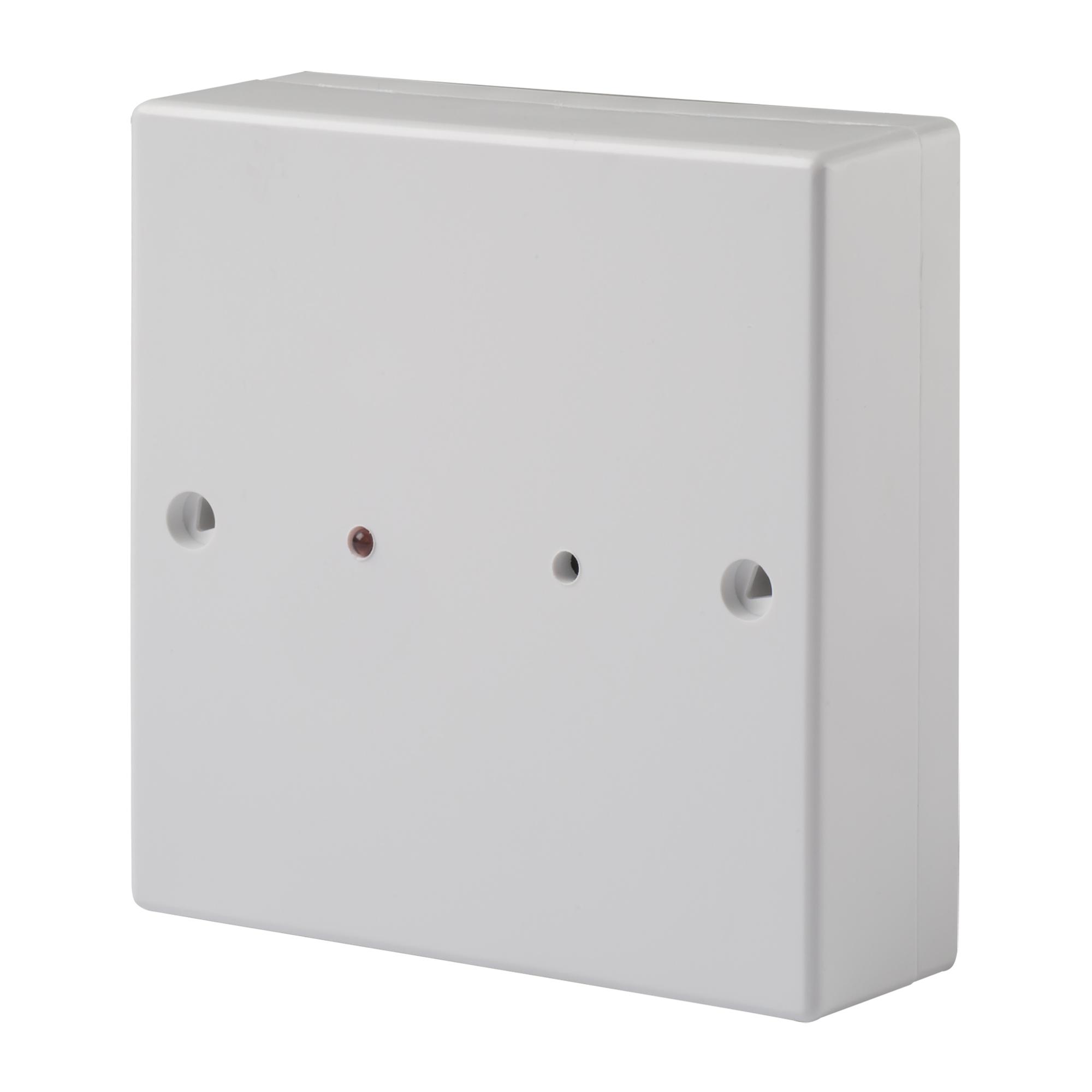

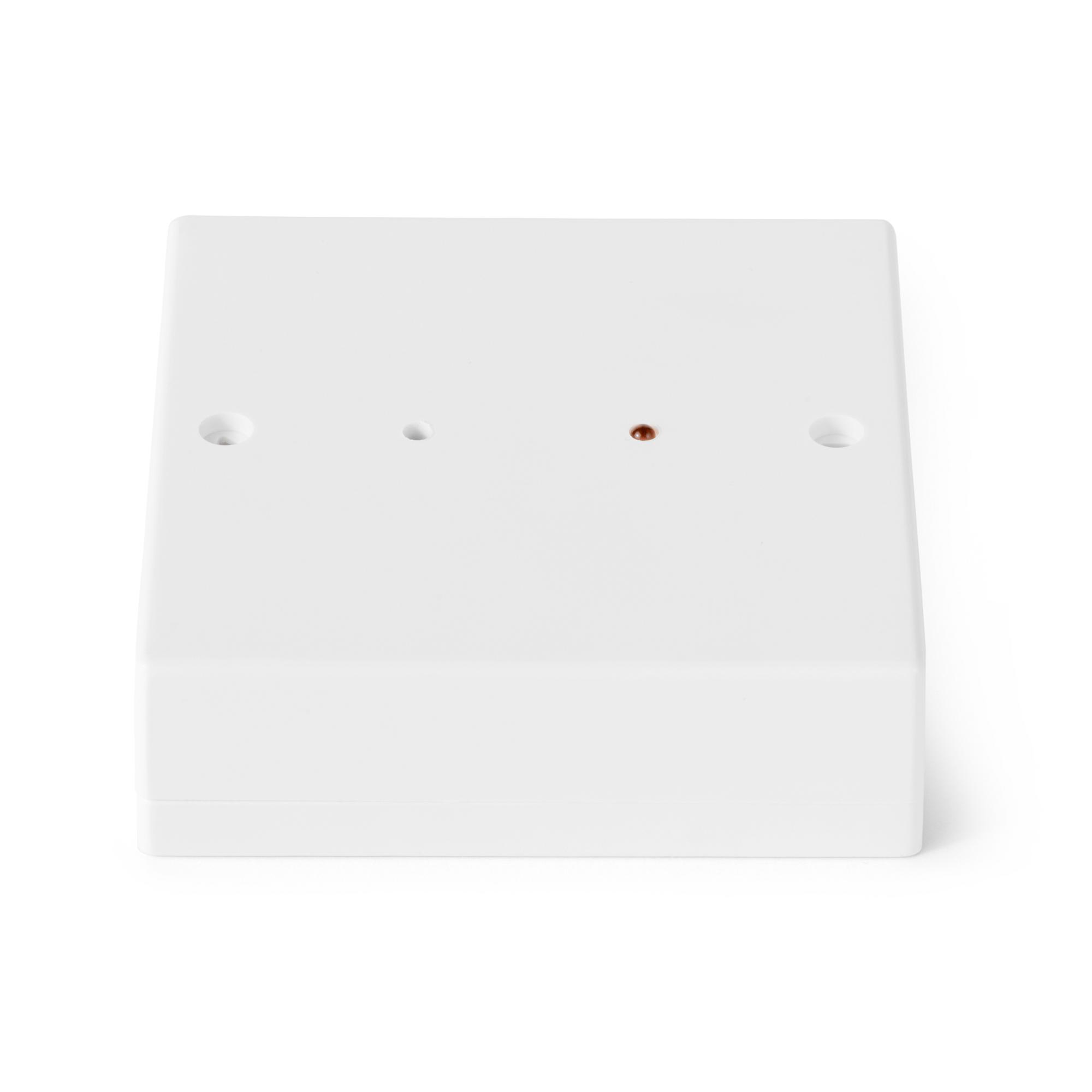

GB-5000-IN Relay-Interface for GB

Preview: GB-5000-IN Relay-Interface for GB Preview: GB-5000-IN Relay-Interface for GB Preview: GB-5000-IN Relay-Interface for GB
GB-5000-IN Relay-Interface for GB
GB-5000-IN Relay-Interface for GB
GB-5000-IN Relay-Interface for GB

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54550-F112-A100
  • EAN/UPC-Code: 4025515478911
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "GB-5000-IN Relay-Interface for GB"
The Relay-Interface is needed, if the line doesn’t allow to connect glass break detectors. This could happen because of several reasons: At series-technology, digital supervision or if the line-voltage is below 3 V. As a connecting link between a glass break detector and the panel, the Relay-Interface can be connected at or in each loop because of it’s floating relay-contact. The electronic is placed in a plastic case. It allows the lead-in of wire on three sides. The housing-cover is monitored against unauthorized opening by a tamper-switch. Secondary Packaging: 25 Units
Certificates
Close menu
Import & Export
Gross weight (KG) 0.08
Purchase unit PCE
EAN/UPC-Code: 4025515478911
Minimum order 1
ECCN N
Material code V54550-F112-A100
Statistical code 85311030
Net weight 0.076
Country of origin DE
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Quiescent current: 5 mA
EOL resistor: 2.2 kΩ
Approval: VdS Klasse B (pending)
Housing material: S-B, A-B-S
Operating temperature: 30 °C ~ 60 °C
Switching voltage: Max. 24 VDC
Current consumption, quiescent: 5 mA
Current consumption: 13.5 mA
Environmental class: II
Contact resistance: 5 Ω
Switching current: Max. 200 mA
Supply voltage: 10 ~ 15 V DC
