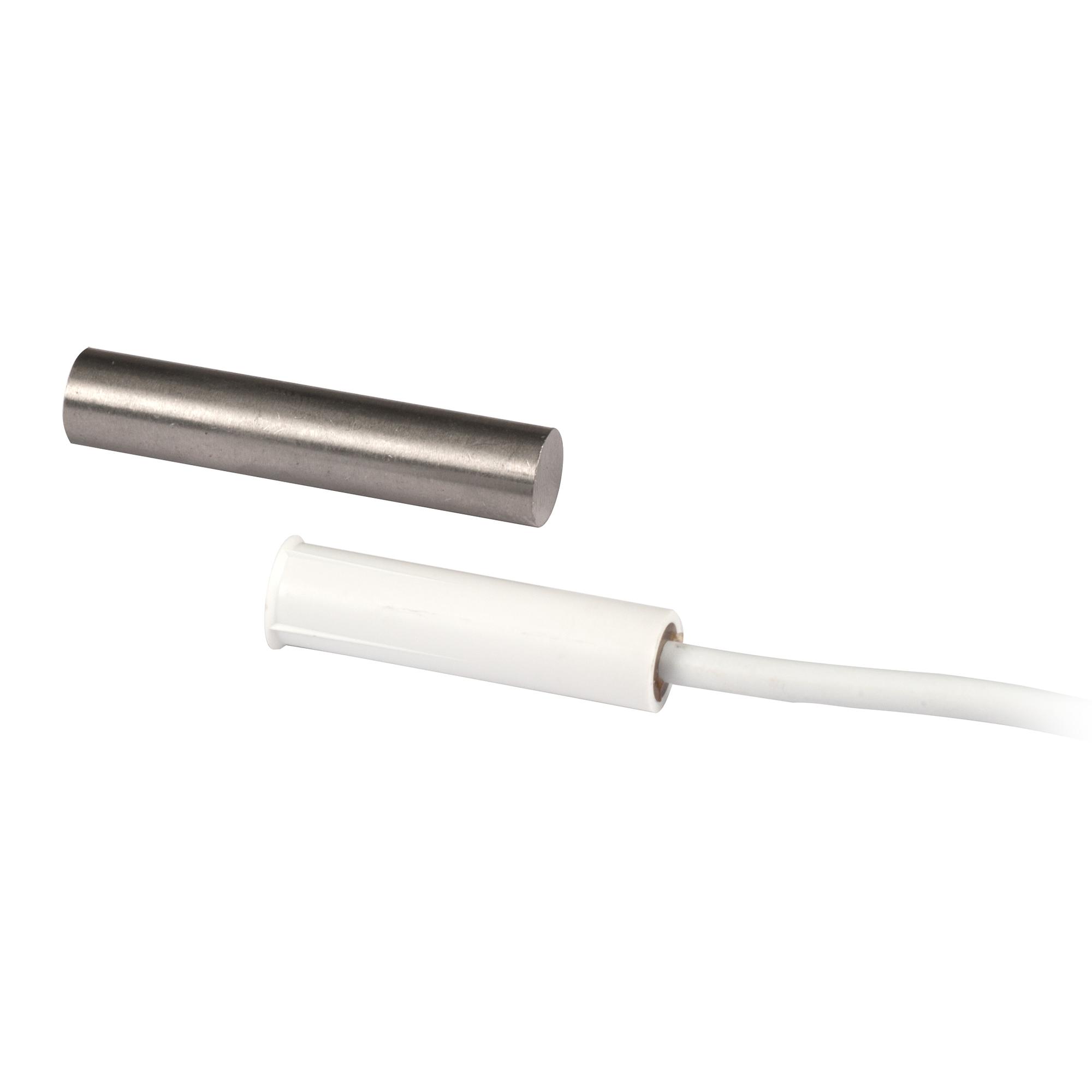

EMK48LSA-W4M Magn.cont.rec.mt.,white,4m

Preview: EMK48LSA-W4M Magn.cont.rec.mt.,white,4m Preview: EMK48LSA-W4M Magn.cont.rec.mt.,white,4m
EMK48LSA-W4M Magn.cont.rec.mt.,white,4m
EMK48LSA-W4M Magn.cont.rec.mt.,white,4m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: VDE6:9906440013
  • EAN/UPC-Code: 4025515476726
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "EMK48LSA-W4M Magn.cont.rec.mt.,white,4m"
Recess mount magnetic contact suitable for doors and windows surveillance. High fuctional reliability through an integrained carrier board for the reed contact. For surface mounting the EMK-AT can be used.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.085
Purchase unit PCE
EAN/UPC-Code: 4025515476726
Minimum order 1
ECCN N
Net weight 0.085
Material code VDE6:9906440013
Country of origin DE
Statistical code 85365080
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Housing protection: IP67
Approval: VdS geprüft, Klasse B, Nr.: G 191564
Contact resistance: 0.15 Ω
Cable length: 4 m
Supply voltage: max. 40 VDC
Housing material: SB, ABS
Colour: White
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
