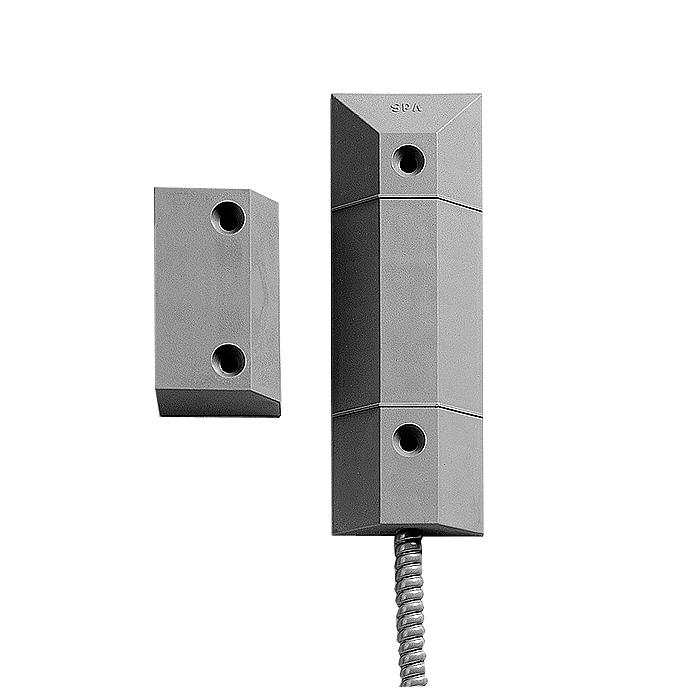

AMK4LSA-1M Magn.cont.surf.mt.,1m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • VDE6:9906620013
  • 4025515476764
Product information "AMK4LSA-1M Magn.cont.surf.mt.,1m"
Gross weight (KG) 0.33
Purchase unit PCE
EAN/UPC-Code: 4025515476764
Minimum order 1
ECCN N
Material code VDE6:9906620013
Net weight 0.314
Country of origin DE
Statistical code 85365080
Dimensions housing: 146 x 50 x 16.5 mm
Cable length: 1.2 m
Housing material: PA-GF
Contact resistance: 0.15 Ω
Supply voltage: max. 40 VDC
Colour: Grey
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Housing protection: IP67
Approval: VdS geprüft, Klasse B, Nr.: G 191565
