SPCP332.300 Smart PSU (7AH) w. I/O-Exp.

SPCP332.300 Smart PSU (7AH) w. I/O-Exp.
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54545-C102-A100
  • EAN/UPC-Code: 4025515471028
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCP332.300 Smart PSU (7AH) w. I/O-Exp."

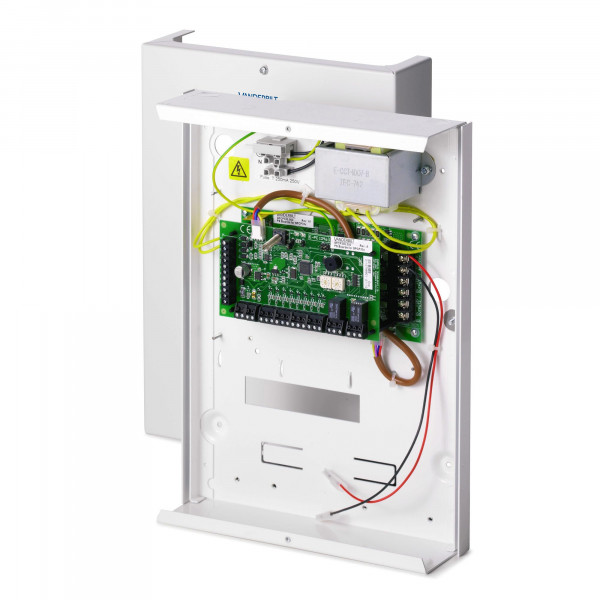

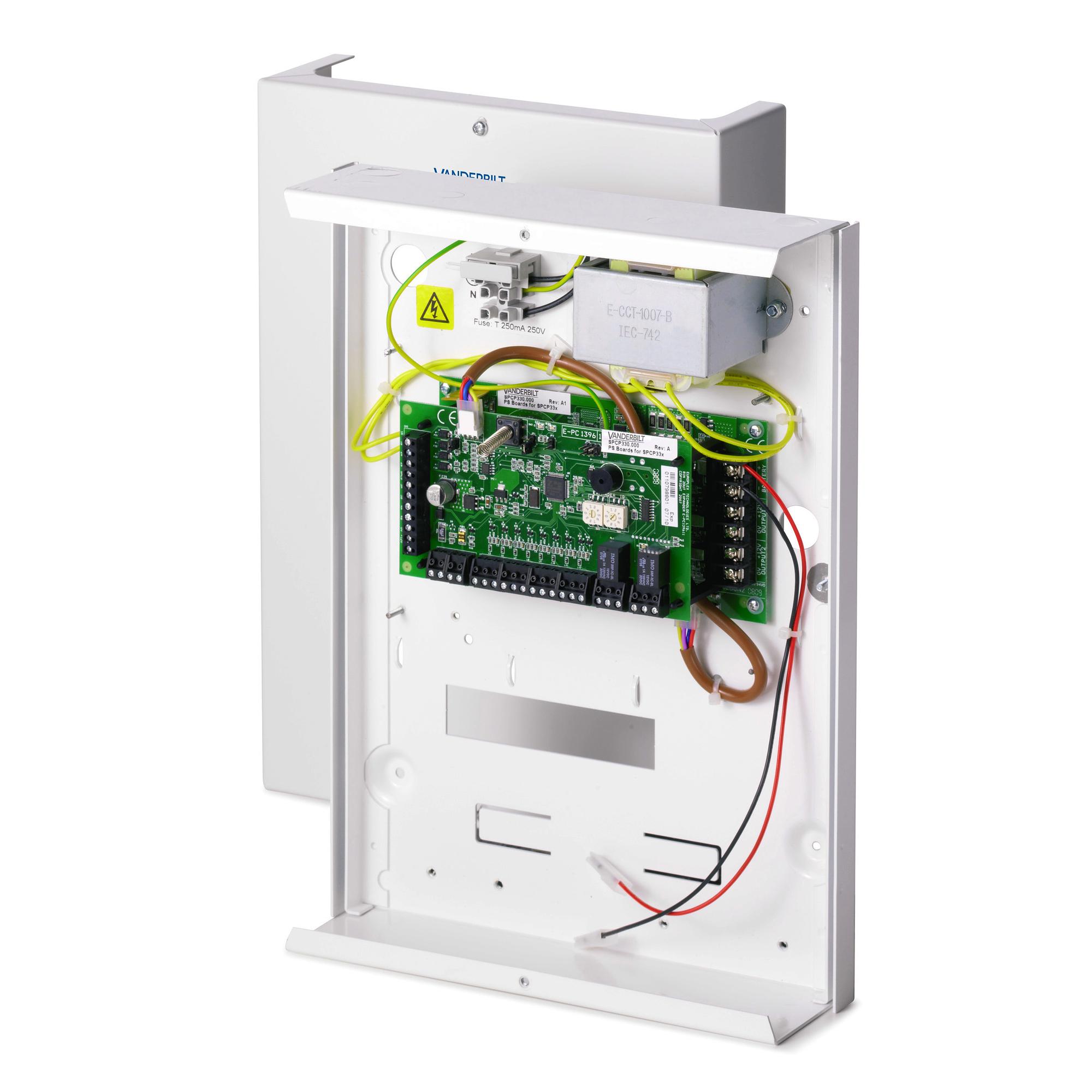

The SPCP332.300 smart power supply expander (PSU) extends the acre Intrusion system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders), 8 wired zones and 2 fully programmable relay outputs. The PSU comes in a tamper protected metal housing with space for an optional 7 Ah battery.
Certificates
Close menu
Import & Export
Gross weight (KG) 5.3
Purchase unit PCE
EAN/UPC-Code: 4025515471028
Minimum order 1
ECCN N
Statistical code 85389099
Country of origin PH
Material code V54545-C102-A100
Net weight 5.035
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Weight: 4.700 kg
Quiescent current: Max. 77mA at 12 VDC
Output voltage: 11-14 VDC in normal conditions (mains powered and fully charged battery)
Operating current: Max. 117 mA at 12 VDC (all relays activated)
Number of on-board relays: 2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Interfaces: X-BUS (in, out, branch)
Power output: Max. 1500 mA bei 12 VDC (750 mA pro Ausgang)
Tamper contact: Front spring tamper
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Housing: Small metal housing (1.2 mm mild steel)
Operating temperature: 0 ~ +40 °C
Number of on-board zones: 8
Colour: RAL 9003 (signal white)
Dimensions (W x H x D): 264 x 357 x 81 mm
