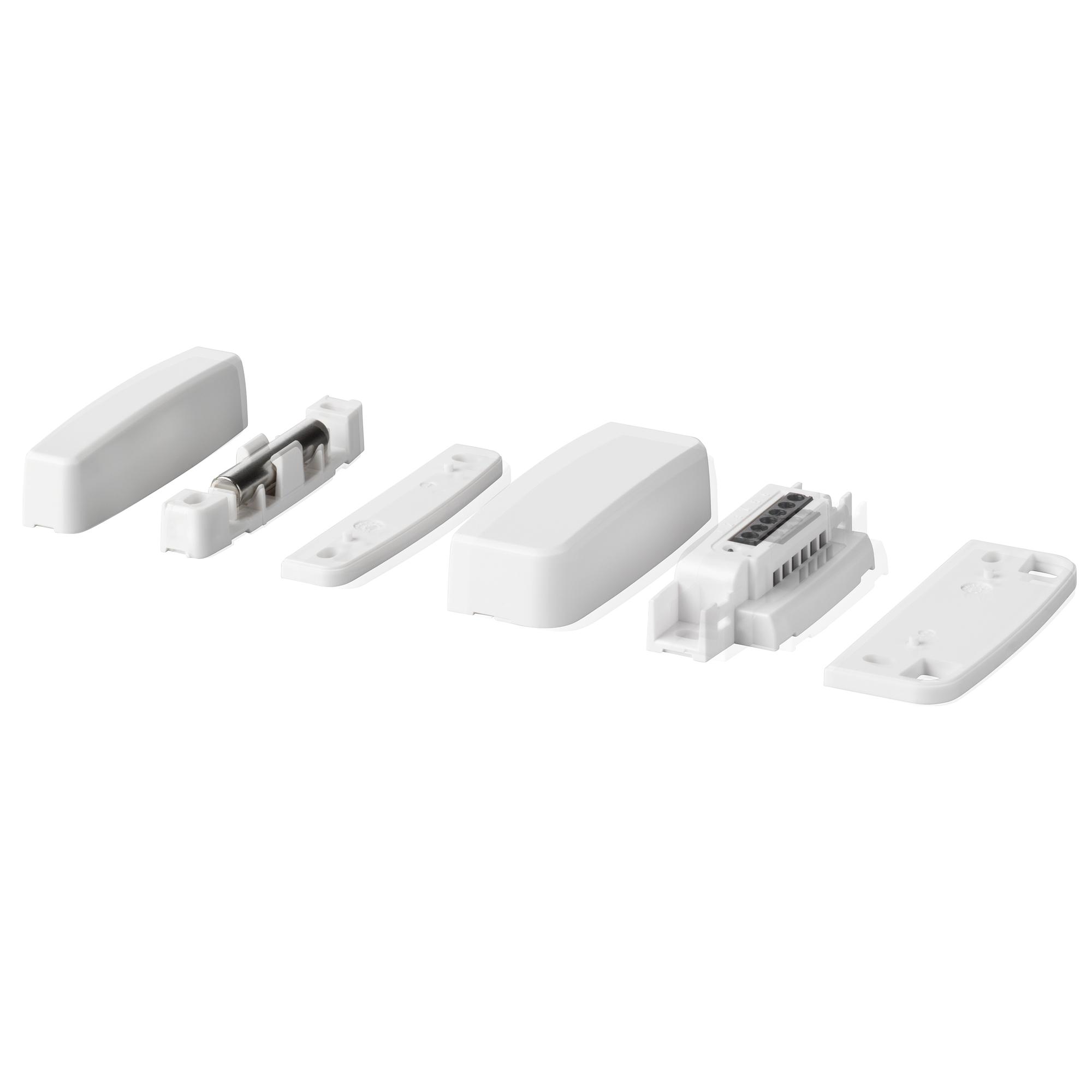

MK-4700 Magn. Cont.,G3

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54536-F117-A100
  • 4025515478881
Product information "MK-4700 Magn. Cont.,G3"
The MK-4000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted on window and door frames of non-magnetic materials. Secondary Packaging: 50 Units
Gross weight (KG) 0.033
Purchase unit PCE
EAN/UPC-Code: 4025515478881
Minimum order 1
ECCN N
Material code V54536-F117-A100
Statistical code 85311030
Net weight 0.033
Country of origin DE
Tamper contact: Single-pole NC contact
Colour: White
Tamper switch: NC
Environmental class: II
Housing protection: IP43
Contact rating: 6 W
Switching voltage: Max. 40 VDC
Operating temperature: -40 ~ +70 °C
Switching current: Max. 500 mA
Approval: EN 50131-2-6, Grade 3 SBSC, Larmklass 3/4
