VR40S-MF NGCR MIFARE EV1 Reader +keypad

Preview: VR40S-MF NGCR MIFARE EV1 Reader +keypad Preview: VR40S-MF NGCR MIFARE EV1 Reader +keypad Preview: VR40S-MF NGCR MIFARE EV1 Reader +keypad Preview: VR40S-MF NGCR MIFARE EV1 Reader +keypad

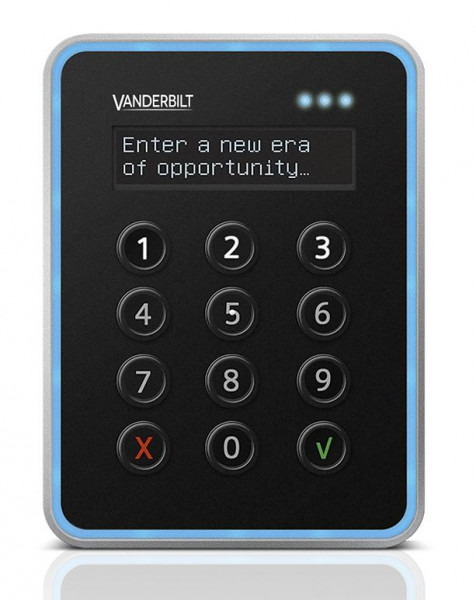

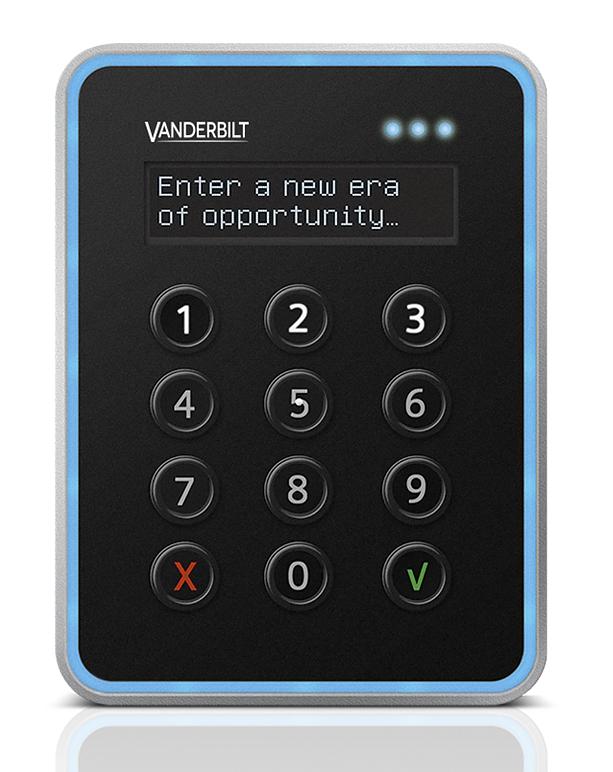

VR40S-MF NGCR MIFARE EV1 Reader +keypad
VR40S-MF NGCR MIFARE EV1 Reader +keypad
VR40S-MF NGCR MIFARE EV1 Reader +keypad
VR40S-MF NGCR MIFARE EV1 Reader +keypad

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54504-F102-A100
  • EAN/UPC-Code: 4025515469841
Description Certificates Import & Export Resources Technical data Documentation Software Useful Links
Description
Close menu
Product information "VR40S-MF NGCR MIFARE EV1 Reader +keypad"
Designed for today’s bright, clean interiors, yet robust in service, the VR40S-MF is easy to install, use and maintain. The VR40S-MF has three indicator LEDs and a multi tone buzzer for audio verification. A multicolour light frame enforces access status information. This can be configured to follow the indicator LEDs, or any number of different options. It has a high quality backlight keypad with tactile feedback as well as a graphical OLED display to maximise user interaction with arming, access and recognition messaging etc., resulting in improved and enhanced user interaction “at the door”. Display brilliance is set automatically by an inbuilt light sensor.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.65
Purchase unit PCE
EAN/UPC-Code: 4025515469841
Minimum order 1
Statistical code 84719000
ECCN EAR99
Country of origin RO
Net weight 0.561
Material code V54504-F102-A100
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Weight: 0.628kg
Housing material: Zinc casted metal bezel with polycarbonate plastic front
Operation temperature: -40°C to +55°C (surface mounted) -10°C to +55°C (back box mounted)
Keypad: Yes
Display: Yes, graphic monochrome OLED
Current consumption: DC 12V: 60mA (Max: 220mA) DC 24V: 40mA (Max 125mA)
Approval: CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)
Air humidity (EN 60721): 5-95% non-condensing
Housing protection: IP55 (surface mounted) IP3X (back box mounted)
Impact rating: IK08
Indicators: 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame
Power consumption: DC 12V = 60mA (220mA Peak); DC 24V = 40mA (125mA Peak)
Card compatibility: MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only)
Dimensions (W x H x D): Surface mounted: 85 x 114 x 22 (mm) ; Back box mounted: 85 x 114 x 14 (mm)
Environment: Indoor/outdoor use

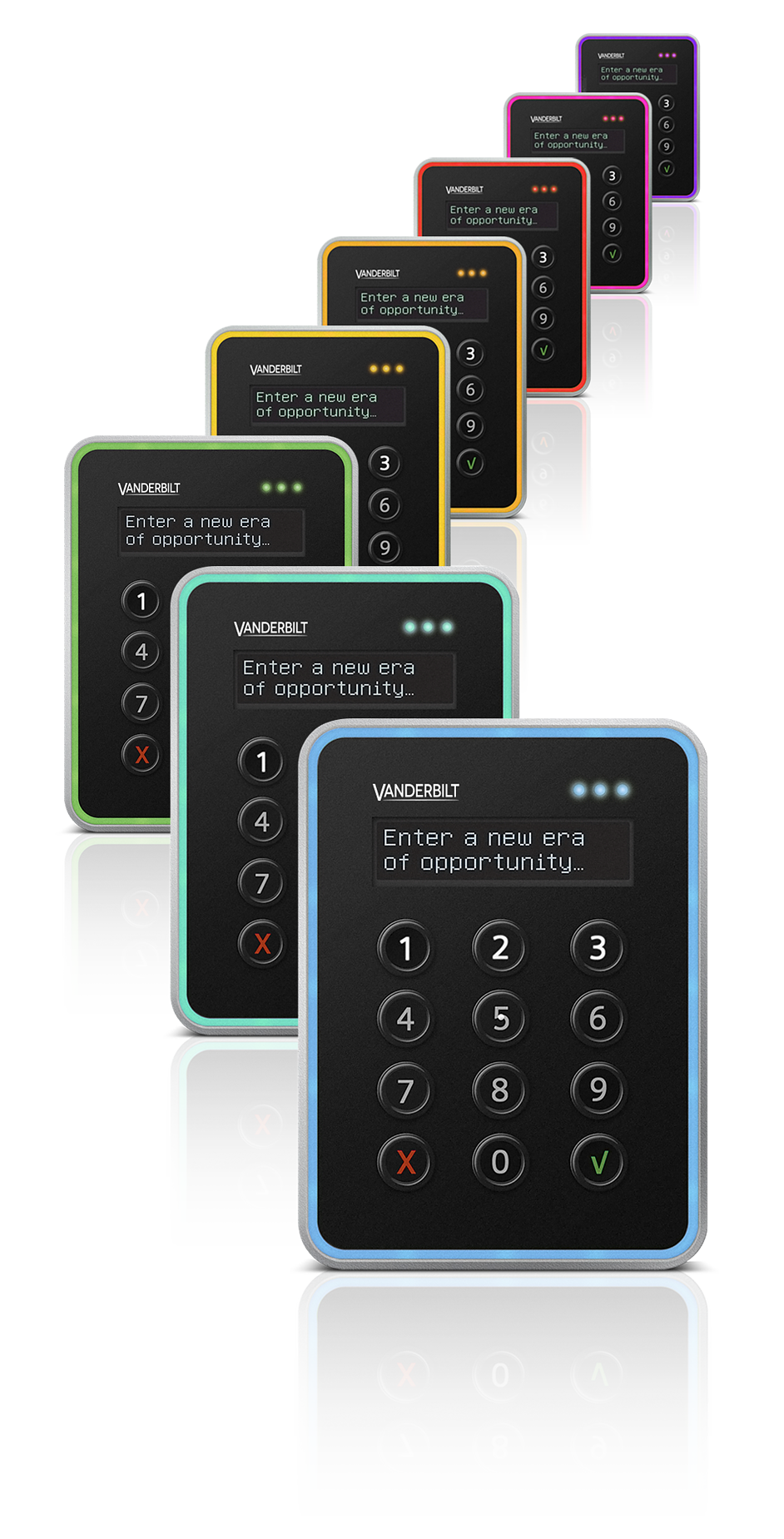

Colour: Black, matt chrome
Card technology: MIFARE
Interface to controller: RS485 OSDP
Card read distance: Up to 6 cm
Tamper protection: Yes
Operating voltage: 8.5 ~ 30.0 VDC
Documentation
Close menu
Software
Close menu
Useful Links
