ADS5200 Single Reader Interface

ADS5200 Single Reader Interface
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V6FL7820-8CA20
  • EAN/UPC-Code: 4025515475101
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu

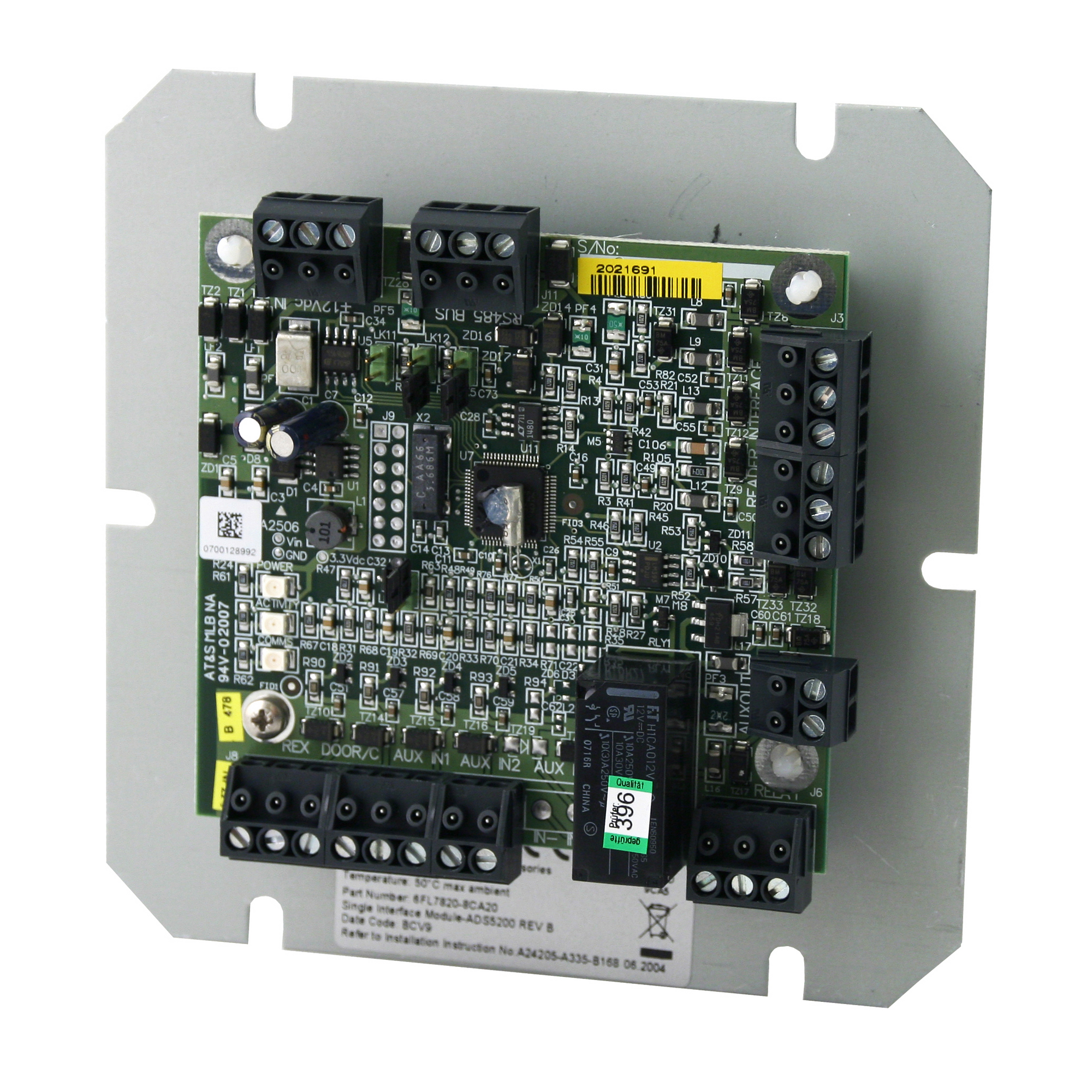

Product information "ADS5200 Single Reader Interface"
The ADS5200 provides a Clock&Data/Wiegand interface between a card reader and the advanced central controller (AC5102 or AC5200) for one card reader. When a cardholder presents an access card at an entry or exit reader the ADS5200 reader interface interprets the encoded information and sends this data to the controller. The controller then checks the validity of the cardholder‚ and if the appropriate permissions have been assigned‚ the controller sends a message back to the reader interface allowing it to unlock the door and provide passage. It can also report the status of the door (locked or unlocked) at any time. Note: The ADS5200 does not have an RS485 interface for card readers. It supports Clock&Data or Wiegand readers only.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.285
Purchase unit PCE
EAN/UPC-Code: 4025515475101
Minimum order 1
ECCN N
Material code V6FL7820-8CA20
Country of origin HU
Net weight 0.250
Statistical code 84733020
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Interfaces: FLN connection to central controller: RS485 Connection to readers: Clock & Data or Wiegand port
Approval: CE‚ UL294‚ C-Tick
Weight: 0.25 kg
Inputs: 1 x REX-button 1 x Door contact 2 x Auxiliary All inputs unsupervised or supervised
Outputs: 1 x Lock output relay (30 VDC‚ 2 A) 1x Open-collector output (100 mA‚ 12 VDC)
Power consumption: 12 W
Operating voltage: 12 VDC ±20 %
Interface: FLN connection to controller: RS485 To readers:Clock&Data or Wiegand port
Indicators: Power‚ Activity‚ Communication
Firmware: Flash upgradeable
Tamper switch: Optional‚ auxiliary input
Dimensions (W x H x D): 125 x 125 x 34 (mm)
