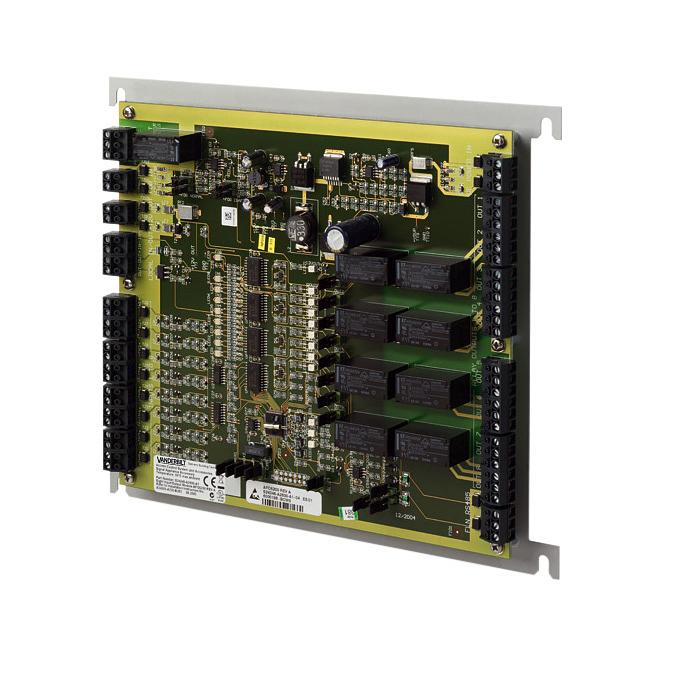

AFO5200 8-Input/Output Module

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • V24246-A2600-A1
  • 4025515475323
Product information "AFO5200 8-Input/Output Module"
The AFO5200 is an advanced‚ multi-purpose module that provides an interface between field-level input devices (such as passive infrared detectors) and output devices (such as locking devices) to the advanced central controller (AC5100‚ AC5102 or AC5200).
Gross weight (KG) 1.1
Purchase unit PCE
EAN/UPC-Code: 4025515475323
Minimum order 1
Country of origin HU
Material code V24246-A2600-A1
Net weight 1.045
Statistical code 84733020
ECCN EAR99
Dimensions (W x H x D): 250 x 210 x 40 mm
Weight: 1 kg
Operating temperature: 0 to +50 °C (32 to 122 °F)
Indicators: Power, Activity, Communication Inputs, Output Peripheral supplies Fire override
Outputs: 8 x Relays (30 VDC, 2 A) 1 x Local output (open-collector 9.7-12 VDC, 100 mA) 1 x Fire override relays (30 VDC, 2 A)
Inputs: 8 x Isolated (internally supplied, unsupervised or supervised) 1 x Local input 1 x Fire override (potential-free or internally supplied)
Approval: CE, UL294, C-Tick
Current consumption: Max. 2 A at 12 V, max. 1.5 A at 24 V
Operating voltage: 12 VDC ±10% or 24 VDC ±10%
Interface: To controller: RS485
Interfaces: Al controllore: RS485
Firmware: Flash upgradeable
