Product information "PSU 24V-5A-2x12V 17Ah"

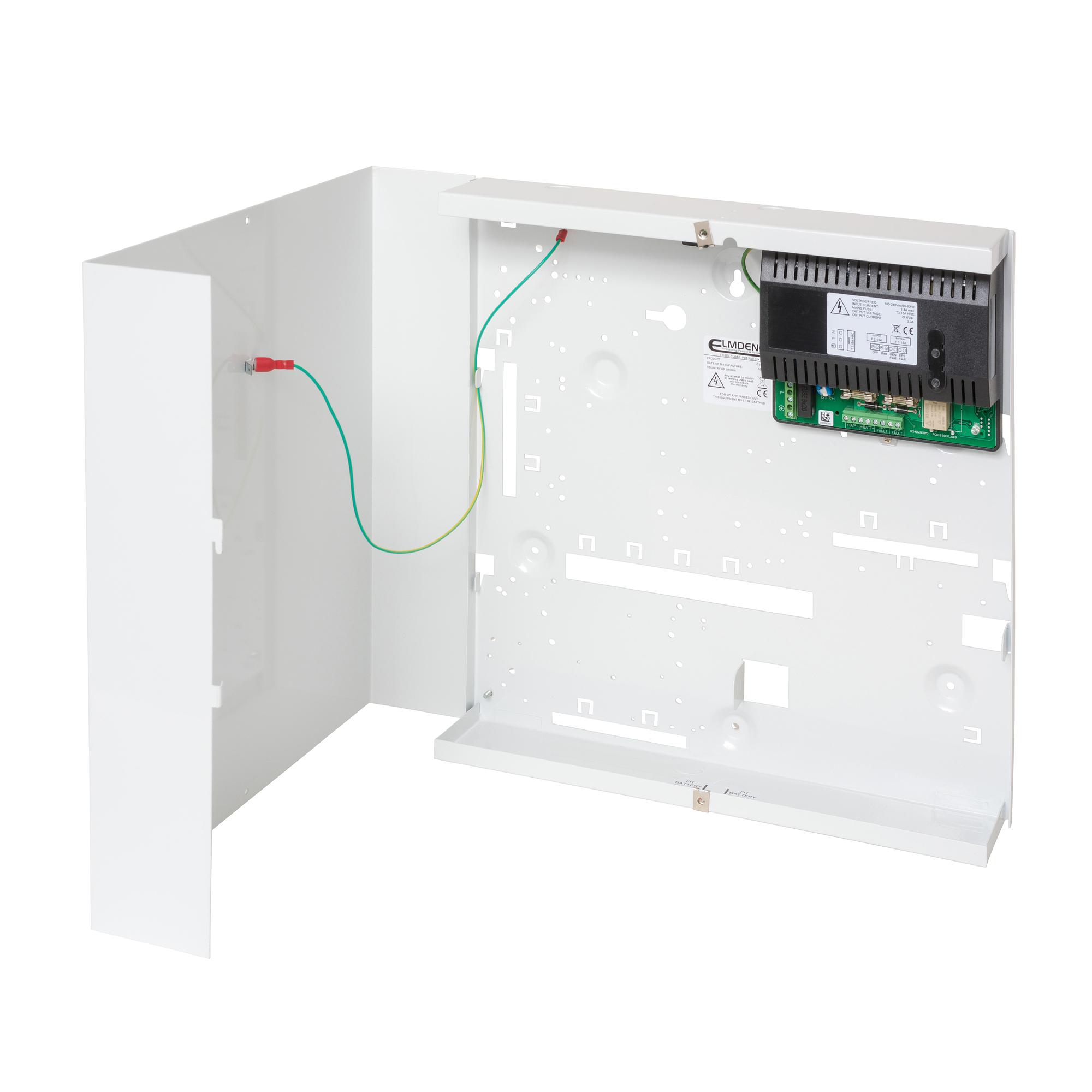

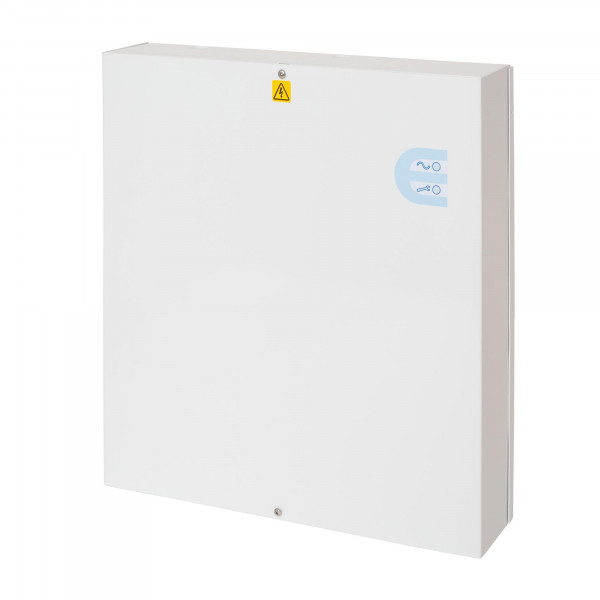

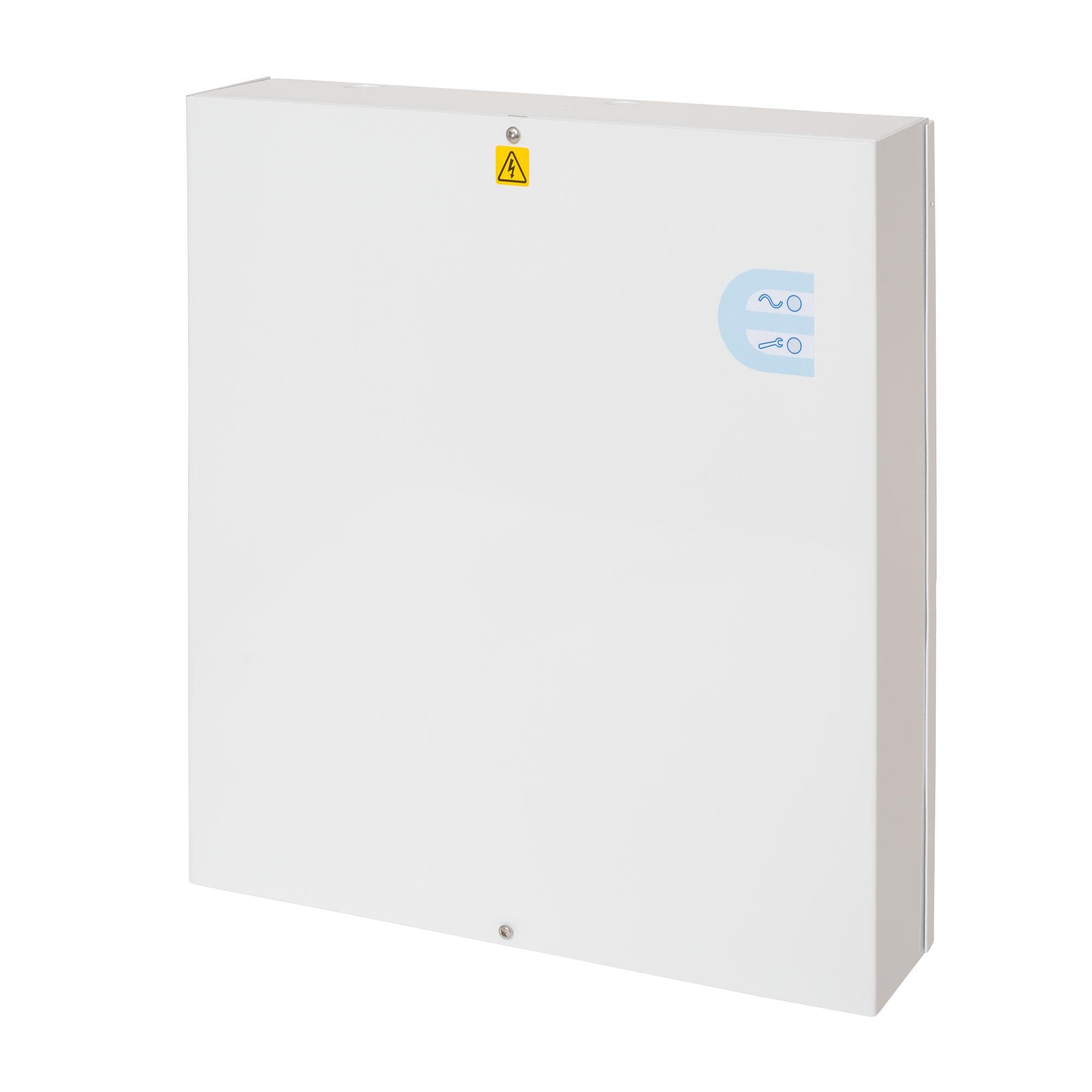

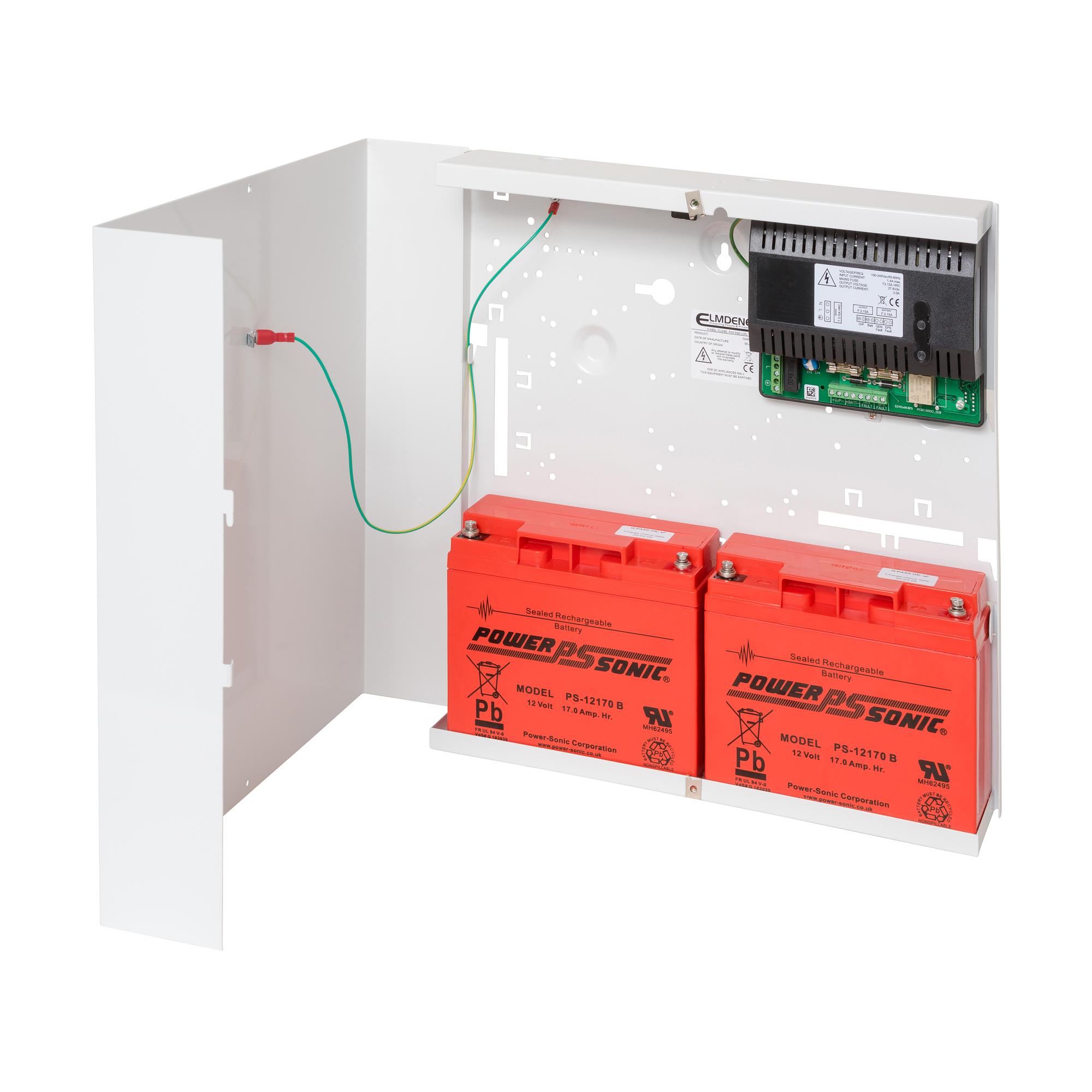

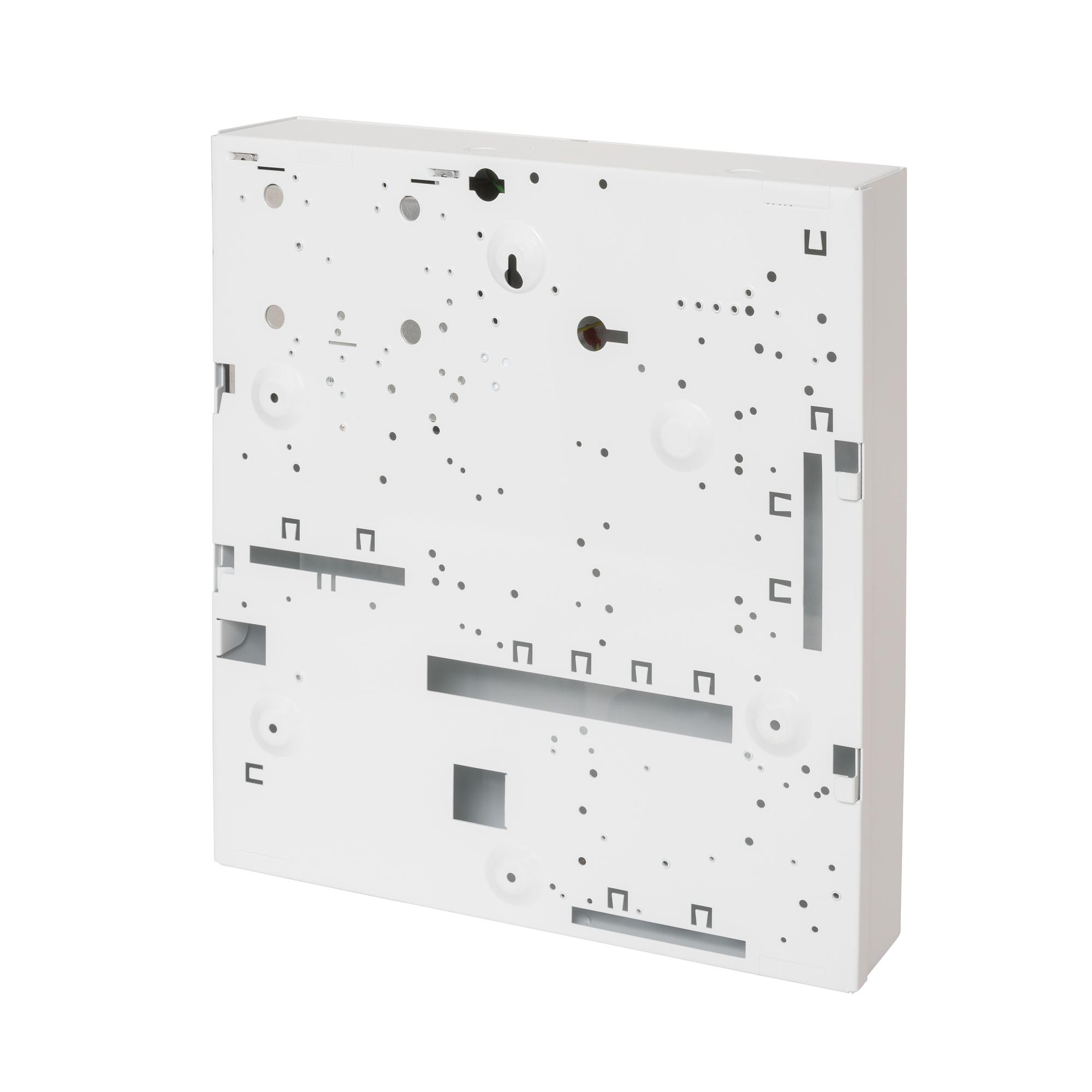

The PSU240517 is a self contained switch mode 24v 5.0 A switch mode power supply, plus 0.5A for battery recharge. Additional features include; deep discharge protection, selection of fault outputs, external LED's for fault diagnosis, tamper protection and space for 2x 17Ah sealed lead acid batteries. Housed in a mild steel enclosure with space for various interface cards.

Gross weight (KG)	6.9
Purchase unit	PCE
Minimum order	1
Country of origin	TW
Net weight	6.800
Material code	PSU240517
Statistical code	85044060
ECCN	EAR99

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Storage temperature:	-20 to +80°C
Power supply:	Max standby Power : 0.8W (no load and no battery connected)
Output voltage:	27.0 – 28.0Vdc (27.6Vdc nominal) on mains power ; 21.0 – 24.7Vdc on battery standby
Output current:	5.0A - output fuse F5.0A
Operating temperature:	-10 to +40°C - 75% RH non-condensing
Input voltage:	100-240Vac / 90-264Vac (Both at 50 – 60Hz) - T3.15A fuse
Dimensions (W x H x D):	390 x 410 x 80mm
Current:	Max Mains Input : 2.0A
Battery:	Standby battery : 2 x 12V 17Ah valve regulated Lead Acid
Weight (without battery):	6.17kg
