Product information "PSU12121.007 (GEN2-08-C) 12V G2 PSU"

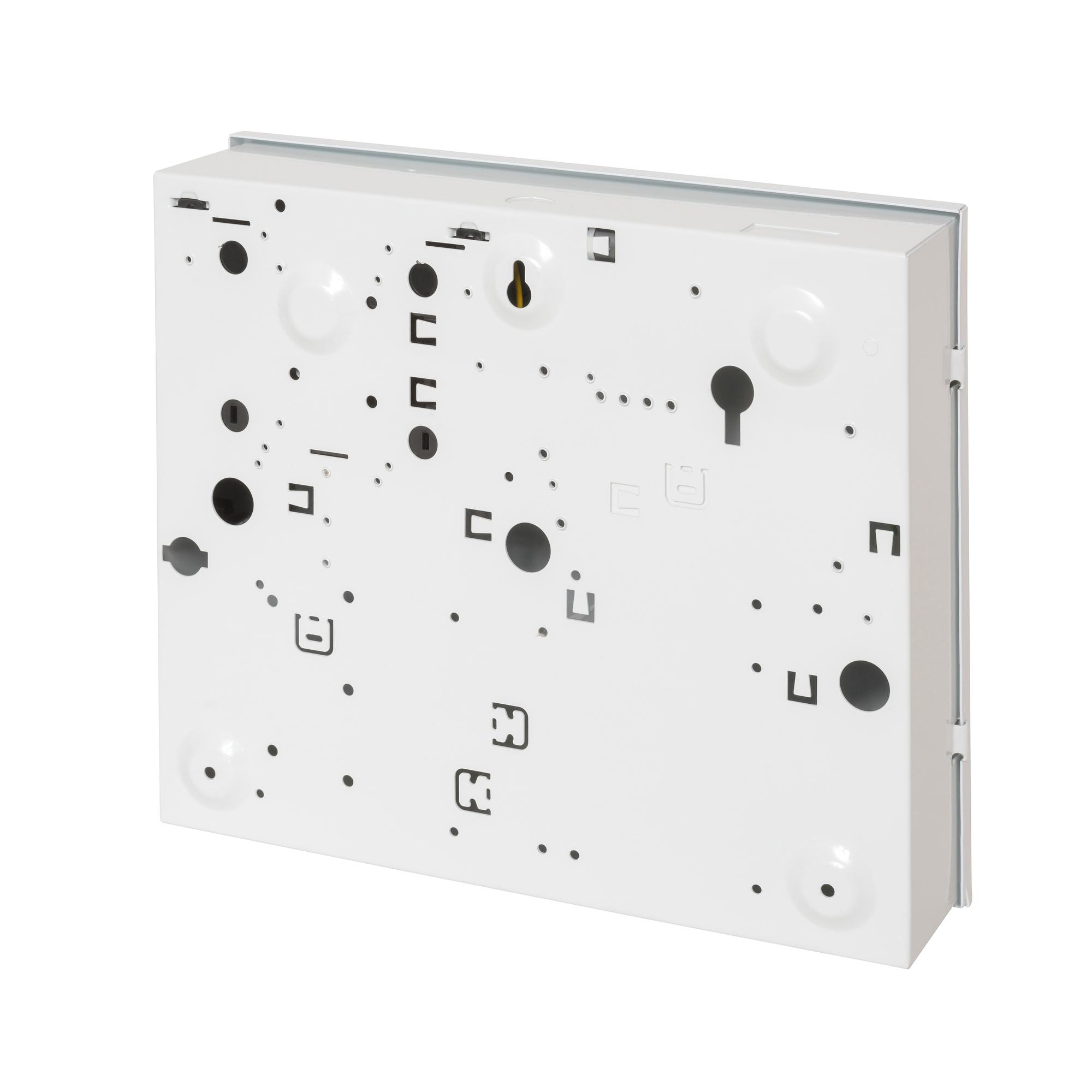

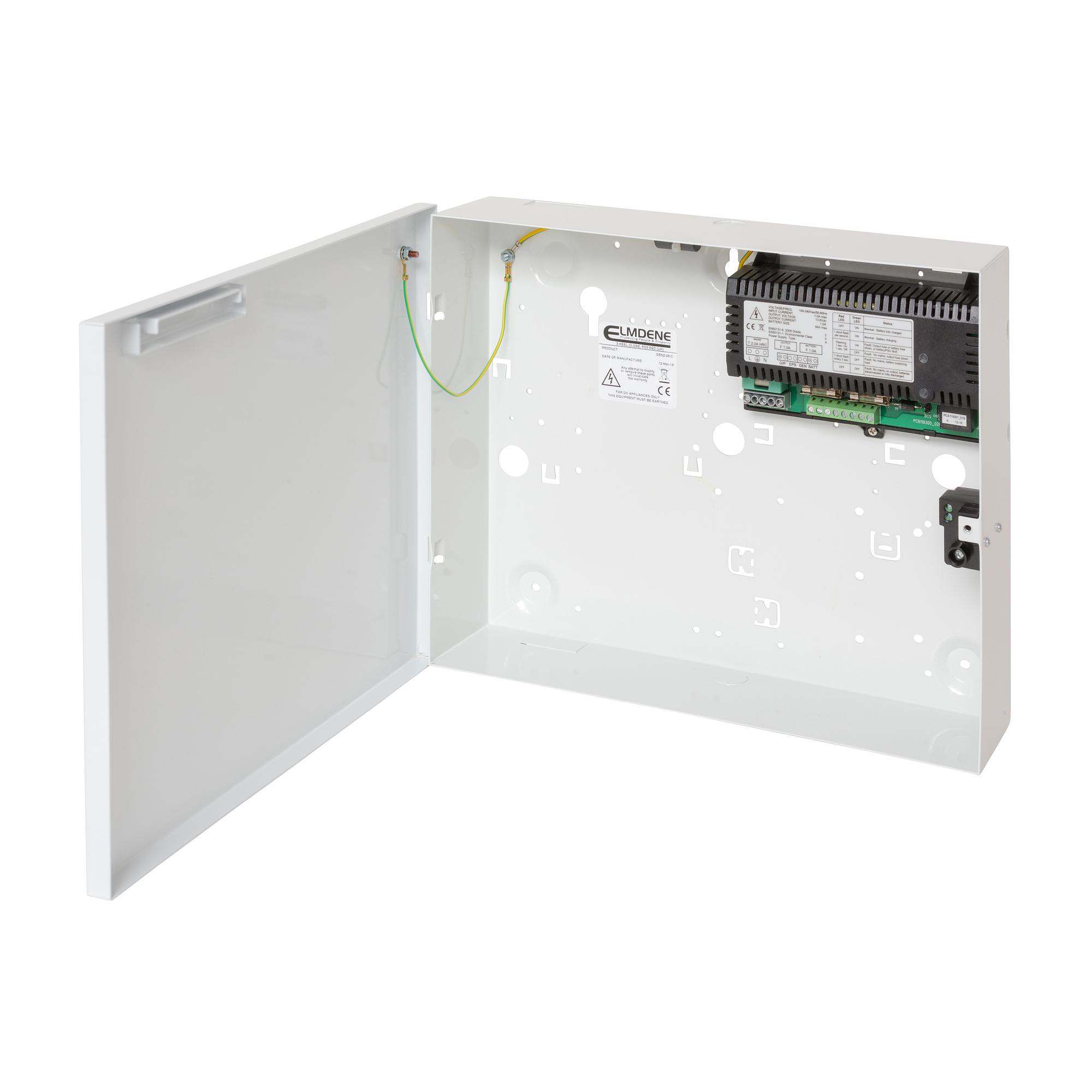

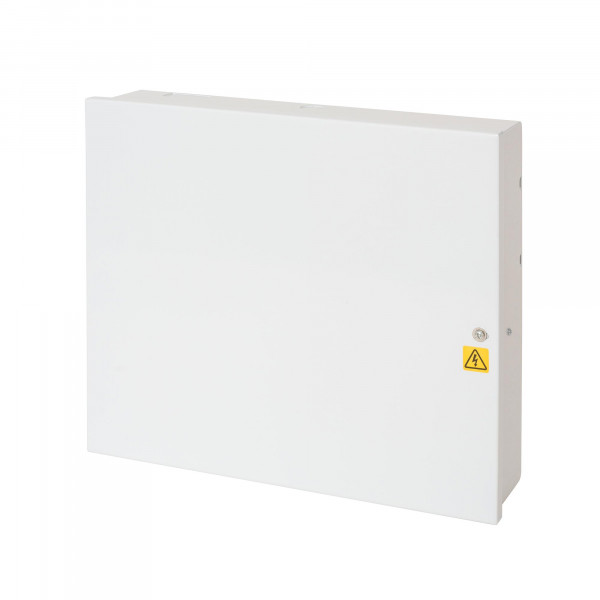

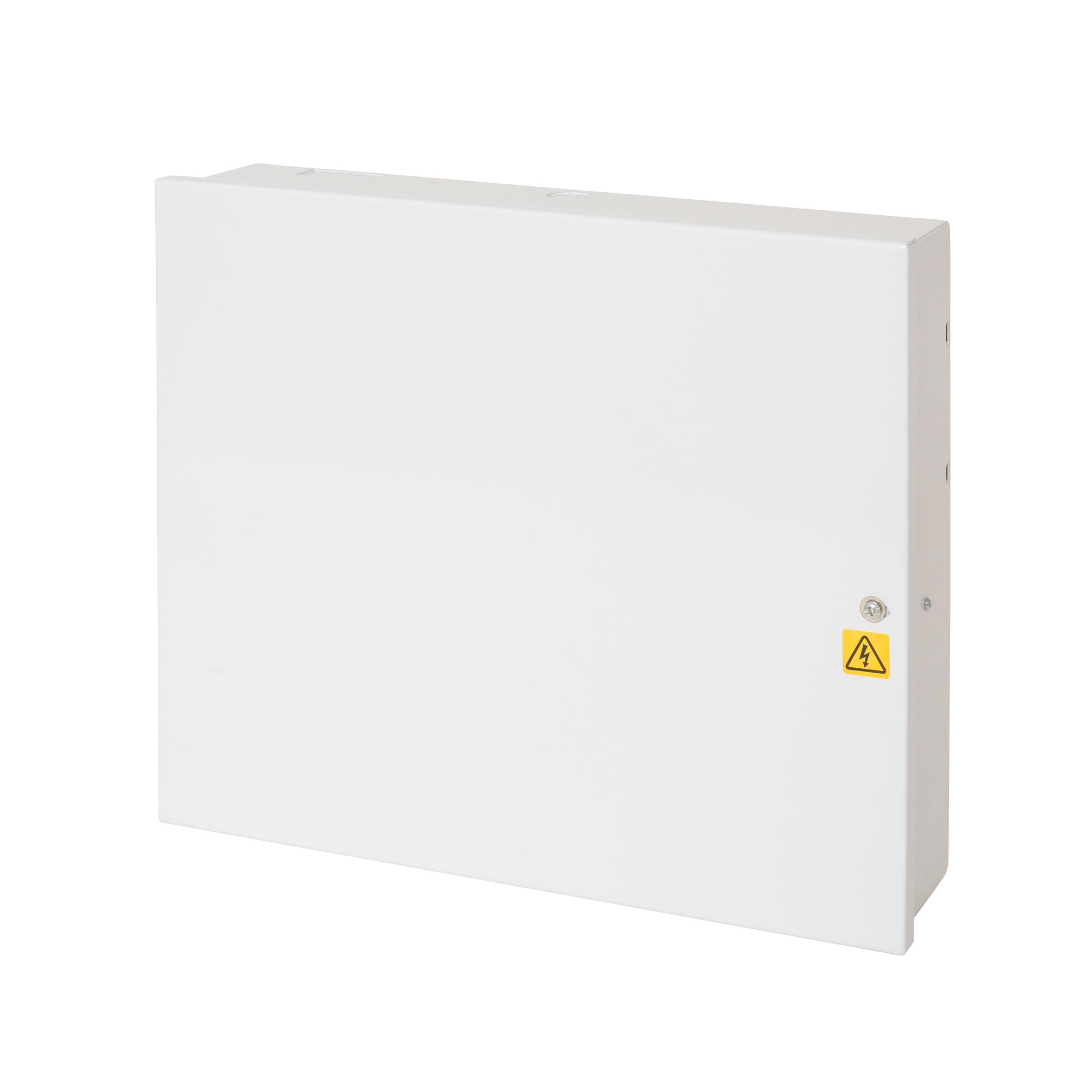

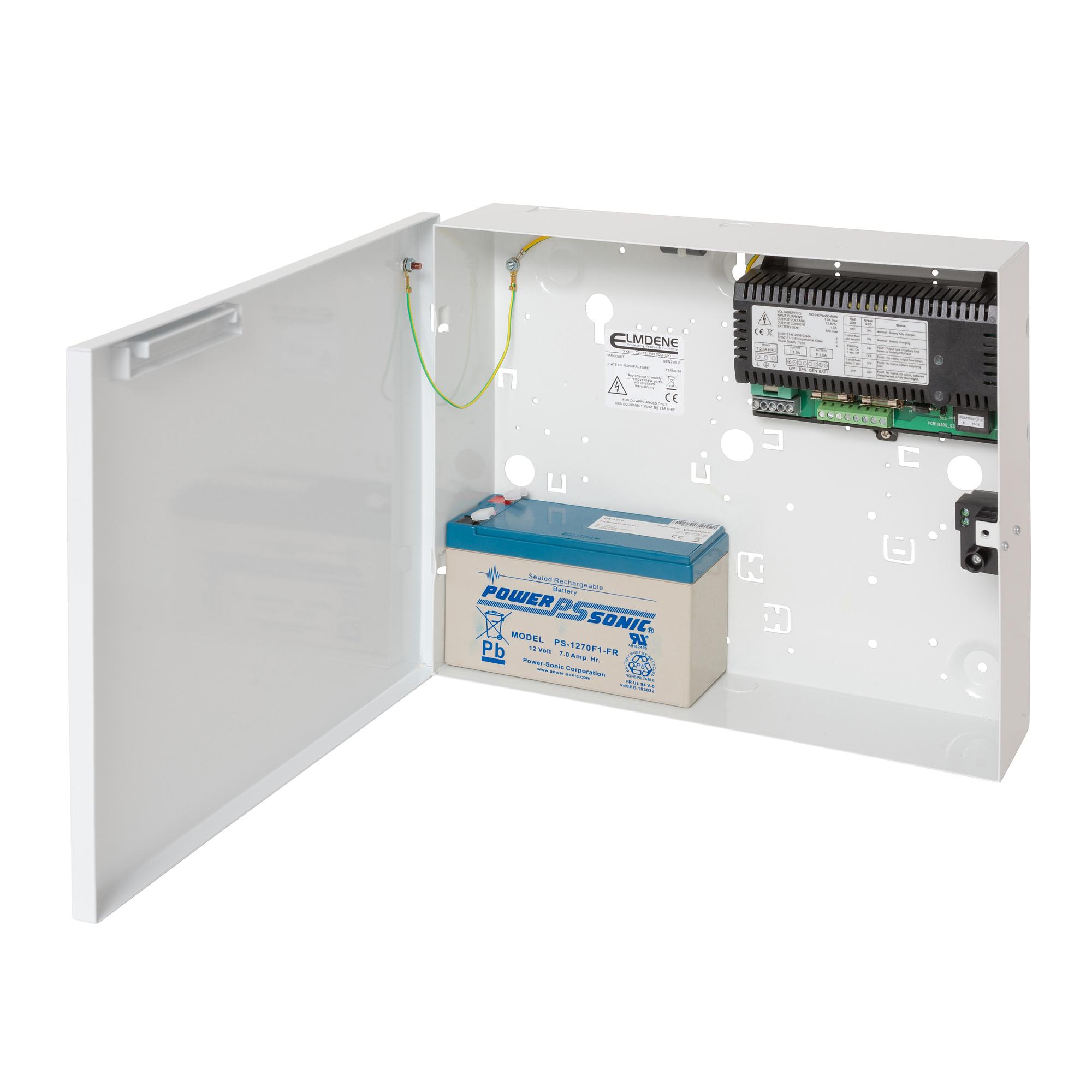

The PSU12121.007 is a self contained switch mode 12v 1.0 A switch mode power supply, plus 0.5A for battery recharge. Additional features include; deep discharge protection, selection of fault outputs, internal LED's for fault diagnosis, tamper protection and space for a 17Ah sealed lead acid battery. Note 7.0Ah must be used to maintain the certification. Housed in a mild steel enclosure with space for various interface cards. EN50131-6: 2008 certified.
Gross weight (KG) 3.56
Purchase unit PCE
Minimum order 1
ECCN N
Material code N54545-Z163-A100
Statistical code 85044055
Country of origin GB
Net weight 3.060
Weight (without battery): 3.56Kg (Gross) / 3.06Kg (Nett)
Output voltage: 12v DC
LED Indicators: Internal

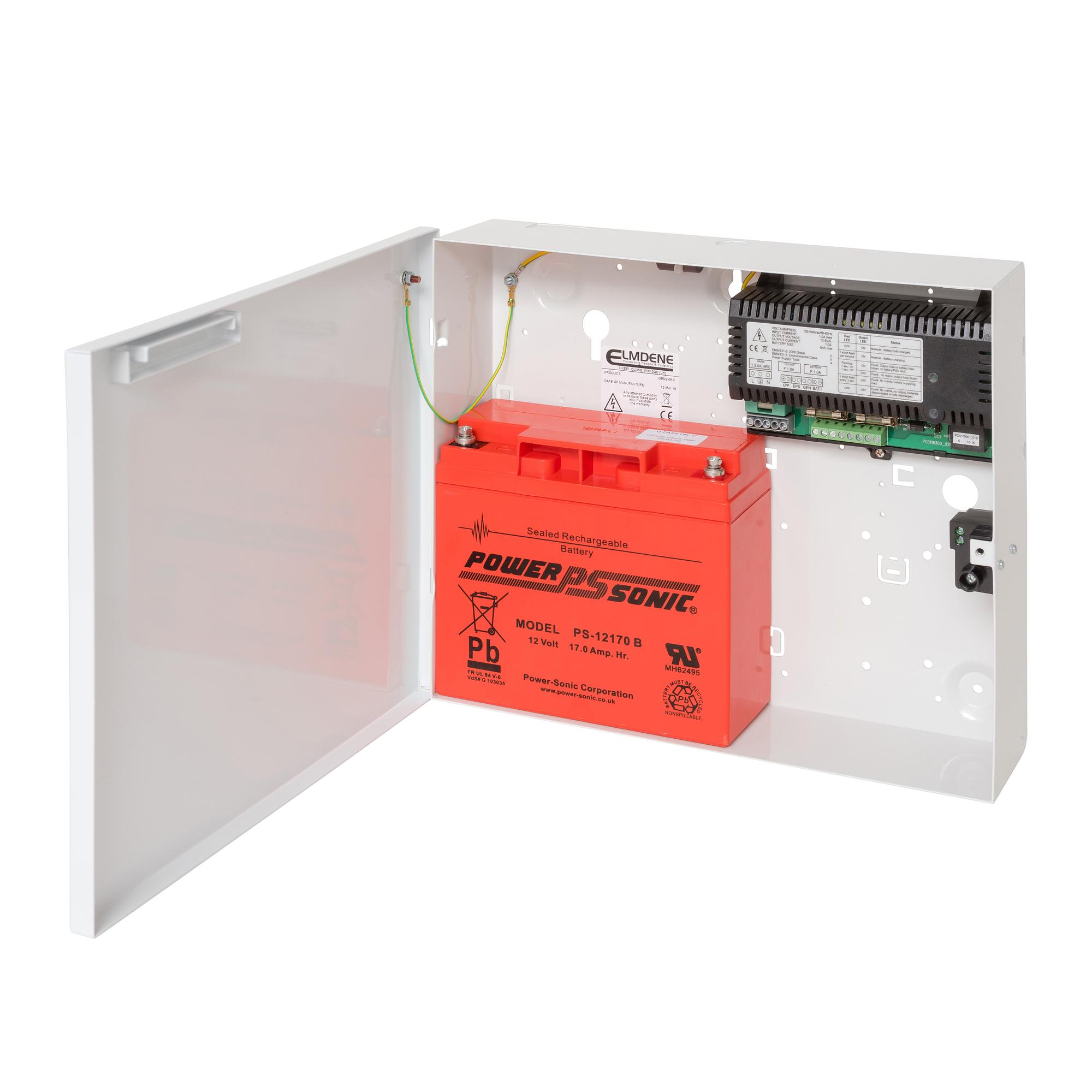

Battery: 1 x 12v 17Ah Max Capacity
Storage temperature: -20°C to +80°C
Operating temperature: 10°C to +40°C, 75% RH
Material: 1.2mm mild steel
Installation: Internal
Input voltage: 100-240vAC
Dimensions (W x H x D): 180 x 335 x 80mm
