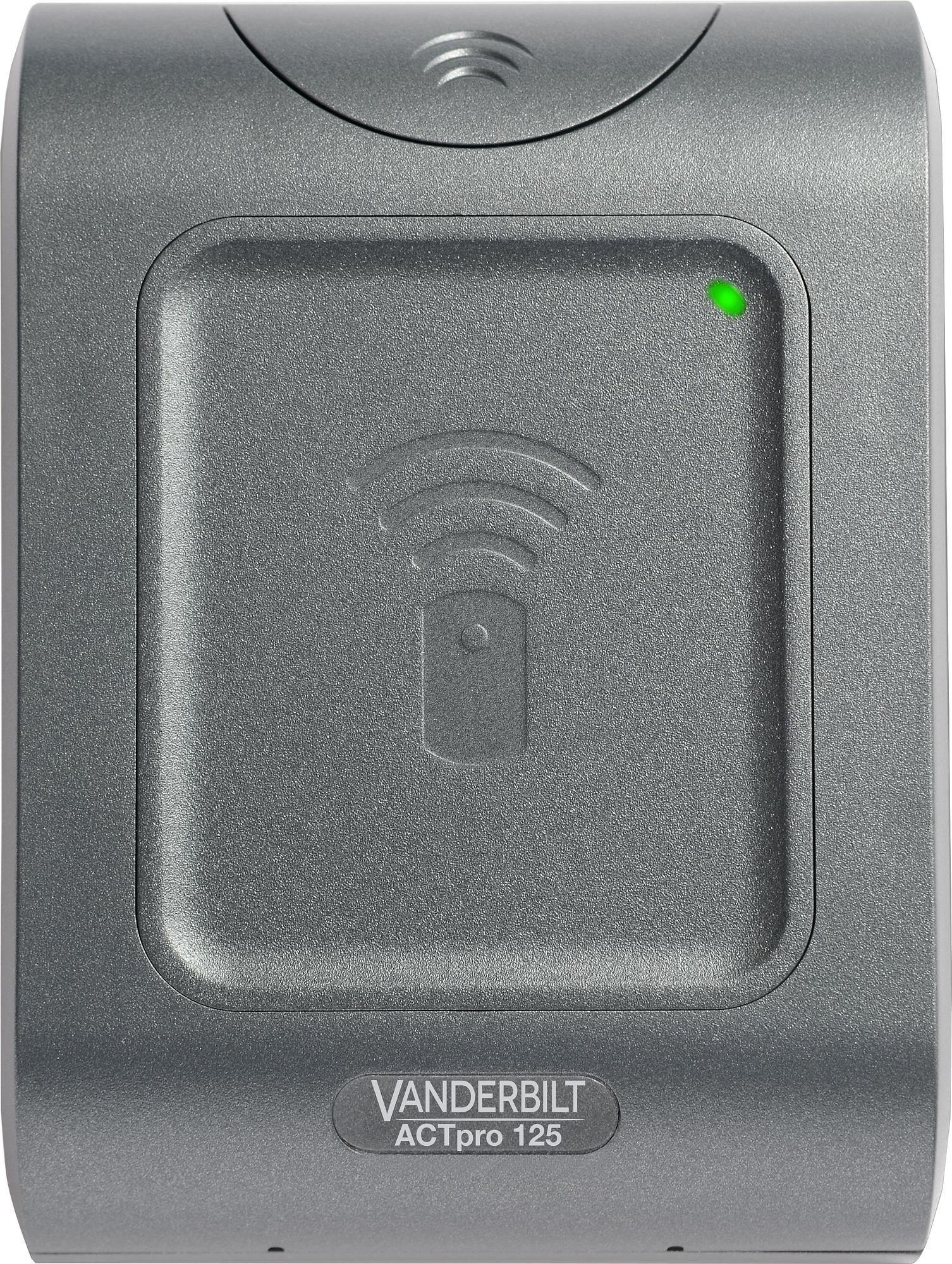

EM1040e ACTpro Prox 125kHz Reader

EM1040e ACTpro Prox 125kHz Reader
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54504-F142-A100
  • EAN/UPC-Code: 7330082004850
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "EM1040e ACTpro Prox 125kHz Reader"
Multiformat readers that can support all ACT 125KHz RFID cards and fobs including existing HID-compatible tokens.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.13
Purchase unit PCE
EAN/UPC-Code: 7330082004850
Minimum order 1
ECCN N
Net weight 0.220
Material code V54504-F142-A100
Statistical code 84719000
Country of origin CN
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Impact rating: IK10
Weight: 0.130kg
Connectors: Connector Blocks
Operating voltage: 5 - 12 Volts DC
Current consumption: 40mA
Mounting: Surface / flush
Installation: Indoor / outdoor
Operating temperature: -40°C to +70°C
Housing protection: IP65
Dimensions (L x W x H): 94 x 130 x 25 (mm)
