ACT5-EM Prox Reader w keypad -128 Codes

Preview: ACT5-EM Prox Reader w keypad -128 Codes Preview: ACT5-EM Prox Reader w keypad -128 Codes
ACT5-EM Prox Reader w keypad -128 Codes
ACT5-EM Prox Reader w keypad -128 Codes

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54521-C111-A100
  • EAN/UPC-Code: 7330082004416
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu

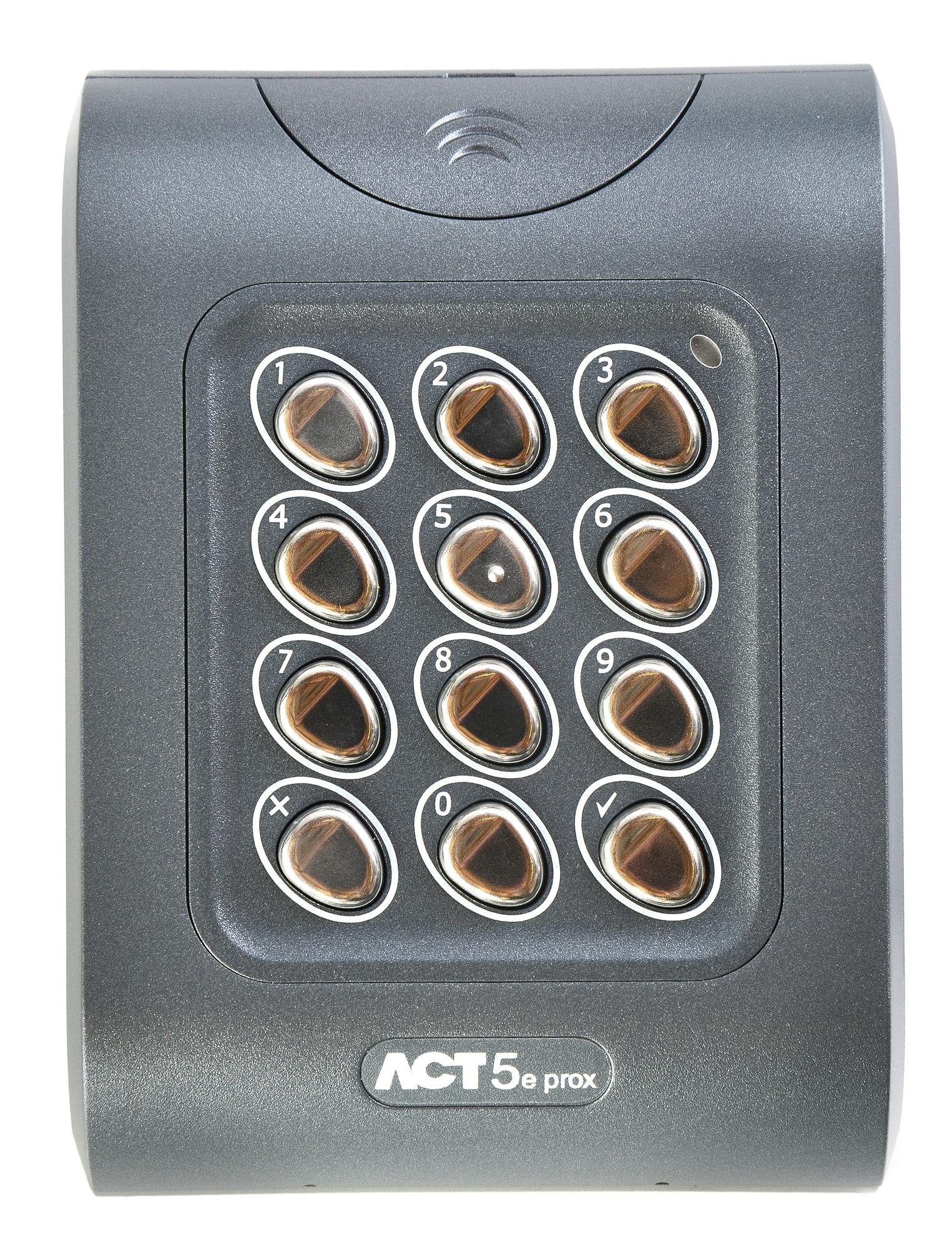

Product information "ACT5-EM Prox Reader w keypad -128 Codes"
The ACT 5e prox keypad supports 128 users with PIN code and Card number. It is housed in a stylish IP 55 rated polycarbonate housing with stainless steel keys and potted electronics, allowing for indoor and outdoor installation.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.33
Purchase unit PCE
EAN/UPC-Code: 7330082004416
Minimum order 1
ECCN N
Material code V54521-C111-A100
Statistical code 84719000
Net weight 0.290
Country of origin CN
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Dimensions (L x W x H): 94 x 130 x 25 (mm)
Impact rating: IK08
Users: 128
Current consumption: 60mA (nominal), 100mA (max)
Weight: 0.225kg
Door capacity: 1
Operating voltage: 12 - 24 Volts AC/DC

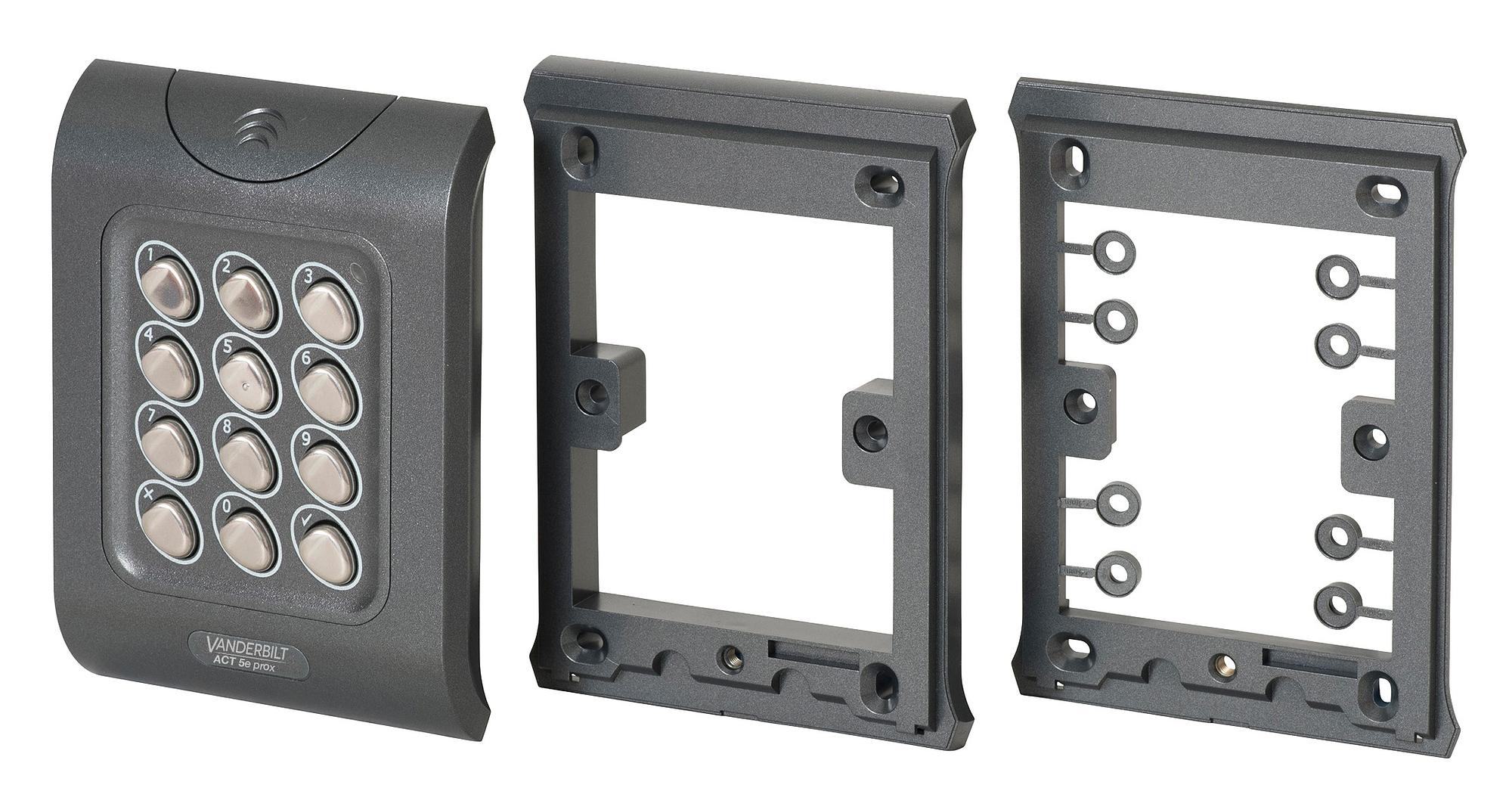

Mounting: Surface / flush
Installation: Indoor / outdoor
Tamper protection: No
Housing protection: IP55
Operating temperature: -40 ~ +70°C
Documentation
