SPC4320.320-K1 w, LCD w. CR, 2 x IB44

Preview: SPC4320.320-K1 w, LCD w. CR, 2 x IB44 Preview: SPC4320.320-K1 w, LCD w. CR, 2 x IB44
SPC4320.320-K1 w, LCD w. CR, 2 x IB44
SPC4320.320-K1 w, LCD w. CR, 2 x IB44

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: L54541-N110-A100
Description Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPC4320.320-K1 w, LCD w. CR, 2 x IB44"

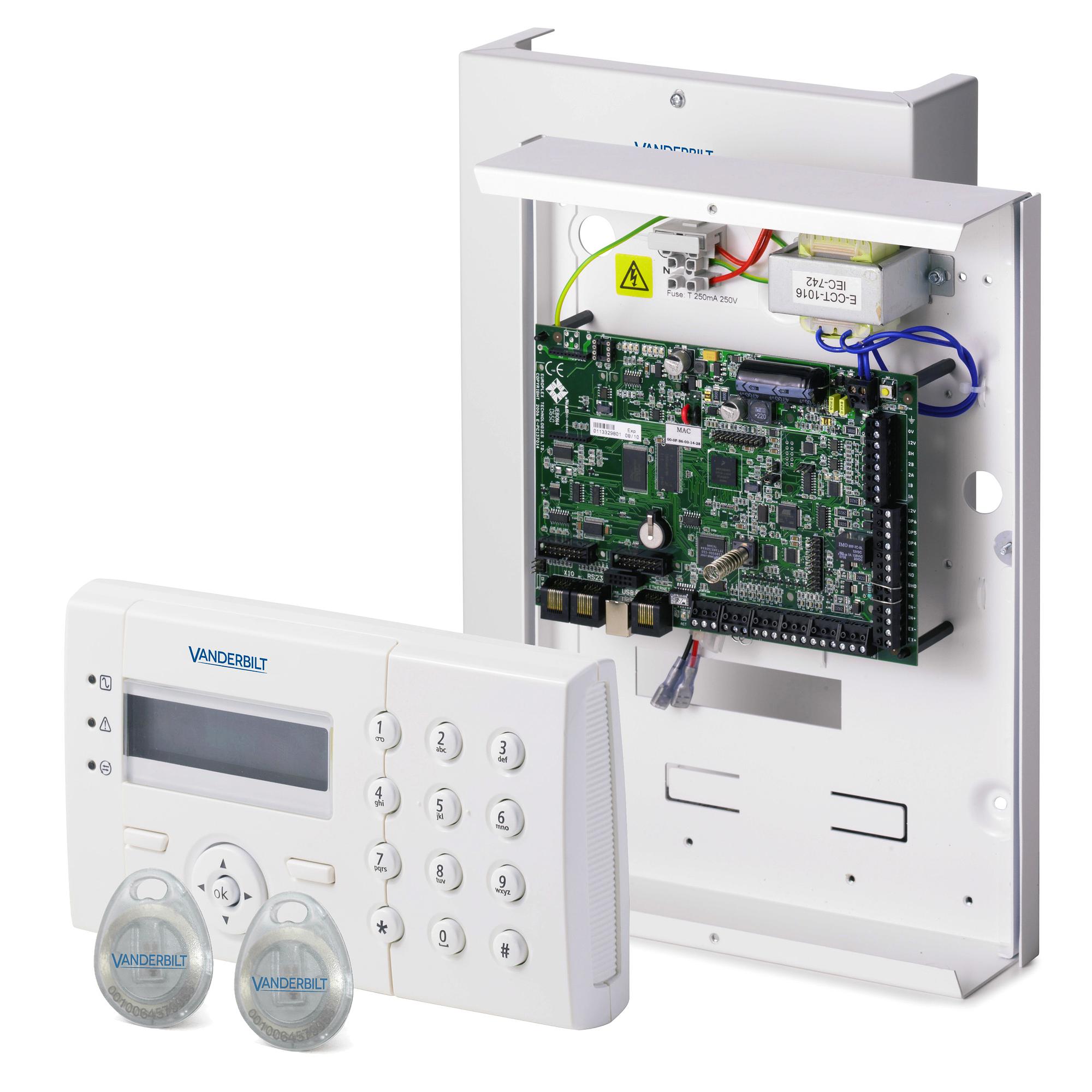

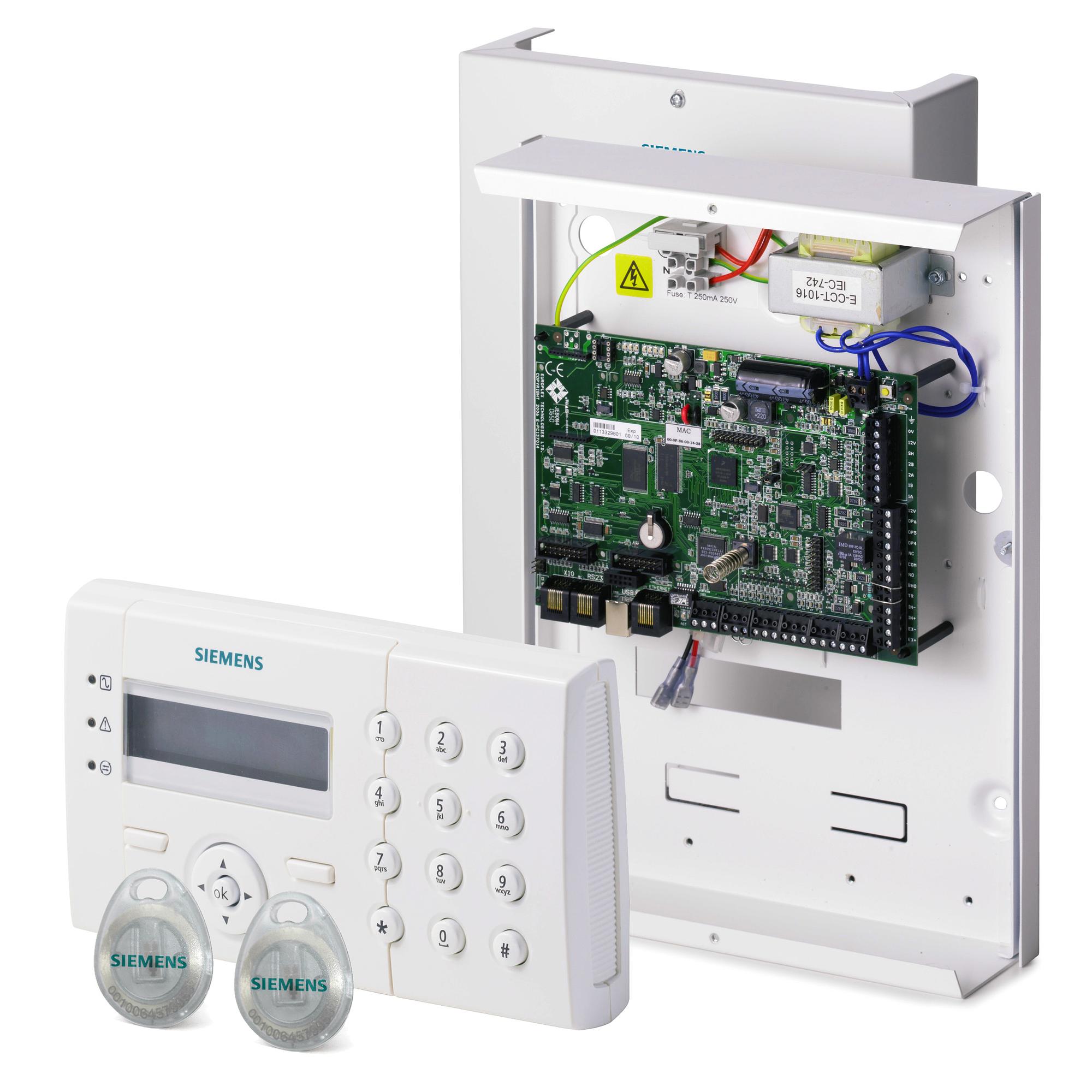

The SPC4320.320 Kit consists of a SPC4320.320 control panel, a SPCK421 keypad & 2 X EM4102 proximity tags. The kit is available for the UK only. The SPC4320.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 32 zones (8 on-board), 30 outputs (6 on-board), 4 system keypads, 4 doors, 4 verification zones. The controller provides 1 X-BUS ports (1 stub), 4 areas, 32 users with different access levels, memory for 1’000 intrusion and 1'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 32 Intrunet wireless detectors (mixed with wired zones) and 1 remote control per user. The panel comes in a tamper protected metal housing with space for optional 7 Ah battery and 1 additional expander.
Import & Export
Gross weight (KG) 0.1
Purchase unit PCE
Minimum order 1
Statistical code 85311030
ECCN EAR99
Country of origin IN
Net weight 0.100
Material code L54541-N110-A100
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Housing: Small metal housing (1.2mm mild steel)
Remote controls: Up to 32
Max. number of hardwired zones: 32
Max. number of wireless zones: 32 (take away wired zones)
Door capacity: Max. 4 entry doors or 2 entry/exit doors
Firmware: V3.4
Color: RAL 9003 (signal white)
Event memory: 1000 intrusion events, 1000 access events
Interfaces: 1 X-Bus (1 spur) 1 RS232 1 USB (PC connection) 1 SPC Fast Programmer 1 Ethernet (RJ45)
Operating temperature: 0 ~ +40 °C
Number of on-board relays: 1 strobe (30 VDC / 1A resistive switching circuit)
Output voltage: 13-14 VDC in normal conditions (mains powered & fully charged battery)
Verification: 4 verification zones with max. 4 IP-cameras and 4 audio devices
Video: Up to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max 1 frame per sec.)
Mains voltage: 230 VAC, +10%/ -15%, 50Hz
Quiescent current: Max. 170mA at 12 VDC
Dimensions (W x H x D): 264 x 357 x 81 (mm)
Tamper contact: Front spring tamper, 2 auxiliary tamper contact inputs
Operating current: Max. 190 mA at 12 VDC
Audio: Up to 60 sec. pre / 60 sec. post audio recording
Language: Multi-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv.
Number of on-board zones: 8
EOL resistor: Dual 4K7 (default), other resistor combinations selectable
Weight: 4.5 kg
