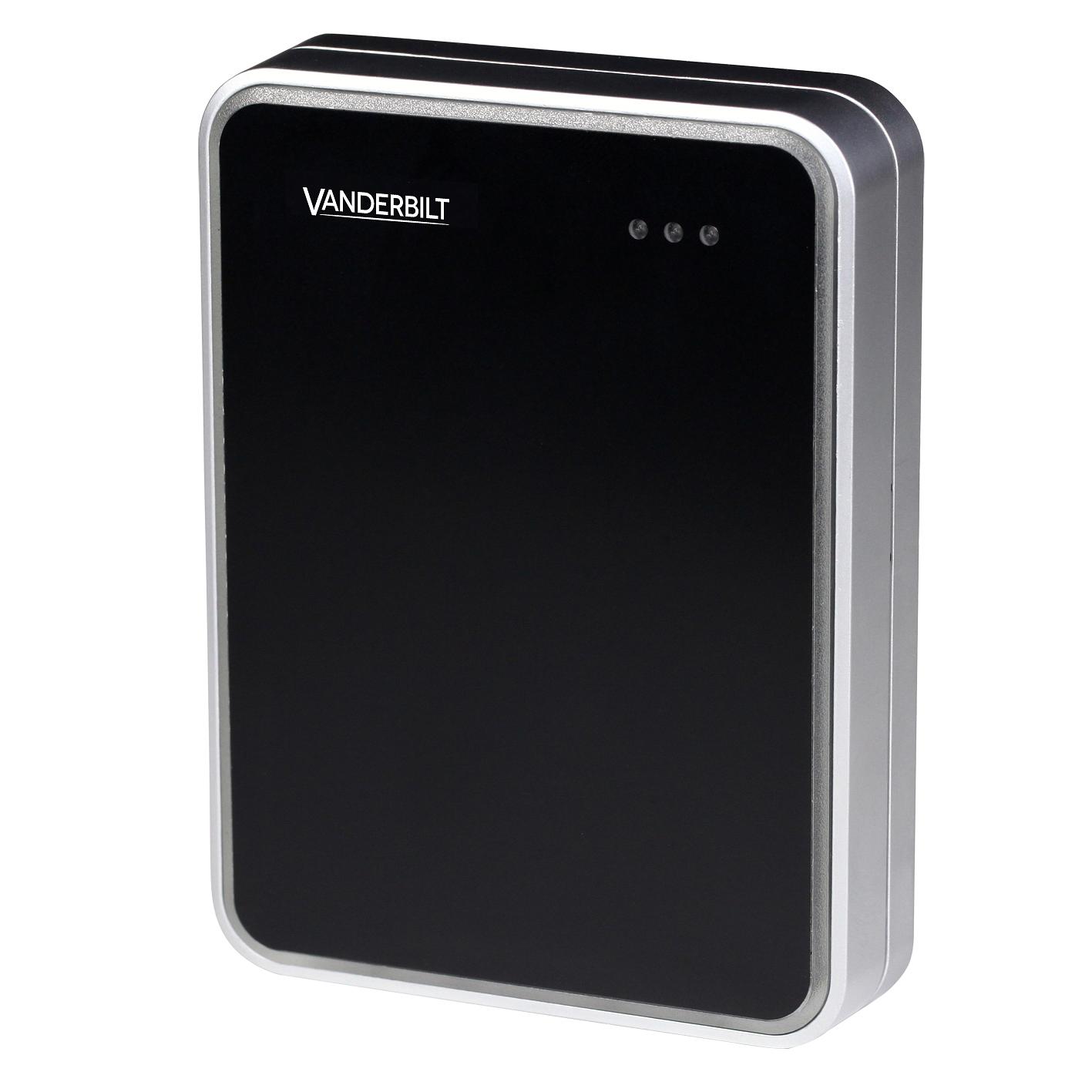

VR10S-MF NGCR MIFARE EV1 Card Reader

Preview: VR10S-MF NGCR MIFARE EV1 Card Reader Preview: VR10S-MF NGCR MIFARE EV1 Card Reader Preview: VR10S-MF NGCR MIFARE EV1 Card Reader
VR10S-MF NGCR MIFARE EV1 Card Reader
VR10S-MF NGCR MIFARE EV1 Card Reader
VR10S-MF NGCR MIFARE EV1 Card Reader

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54504-F101-A100
  • EAN/UPC-Code: 4025515469827
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "VR10S-MF NGCR MIFARE EV1 Card Reader"
Designed for today’s bright, clean interiors, yet robust in service, the VR10S-MF is easy to install, use and maintain. The VR10S-MF has three indicator LEDs and a multi tone buzzer for audio verification. A multicolour light frame enforces access status information. This can be configured to follow the indicator LEDs, or any number of different options.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.59
Purchase unit PCE
EAN/UPC-Code: 4025515469827
Minimum order 1
Statistical code 84719000
ECCN EAR99
Country of origin RO
Net weight 0.561
Material code V54504-F101-A100
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Weight: 0.622kg
Operating voltage: 8.5 – 30.0 VDC
Current consumption: DC 12V 43mA Peak 168mA DC 24V 26mA Peak 100mA
Housing protection: IP55 (surface mounted) IP3X (back box mounted)
Display: No
Housing material: Zinc casted metal bezel with polycarbonate plastic front
Operation temperature: -40°C to +55°C (surface mounted) -10°C to +55°C (back box mounted)
Approval: CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)
Interface to controller: RS485 OSDP
Air humidity (EN 60721): 5-95% non-condensing
Impact rating: IK08
Indicators: 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame
Power consumption: DC 12V = 43mA (168mA Peak); DC 24V = 26mA (100mA Peak)
Card compatibility: MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only)
Dimensions (W x H x D): Surface mounted: 85 x 114 x 22 (mm) ; Back box mounted: 85 x 114 x 14 (mm)
Card technology: MIFARE
Tamper protection: Yes
Card read distance: Up to 6 cm
Keypad: No
Environment: Indoor or outdoor use
Colour: Black, (matt chrome finish)
