ACT-USB ACTpro MF/EM Enrollment Reader

Preview: ACT-USB ACTpro MF/EM Enrollment Reader Preview: ACT-USB ACTpro MF/EM Enrollment Reader
ACT-USB ACTpro MF/EM Enrollment Reader
ACT-USB ACTpro MF/EM Enrollment Reader

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54504-F116-A100
  • EAN/UPC-Code: 7330082004430
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "ACT-USB ACTpro MF/EM Enrollment Reader"

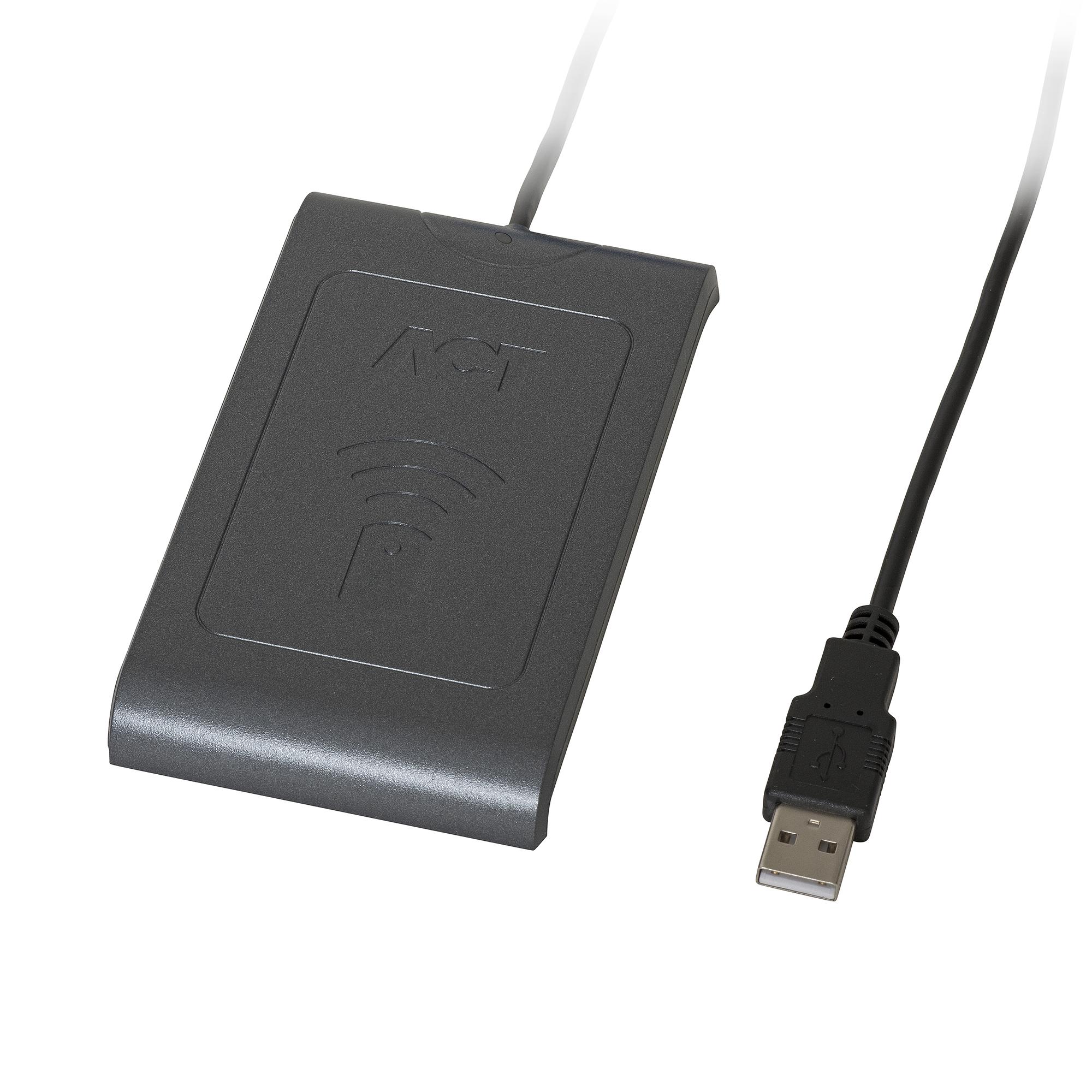

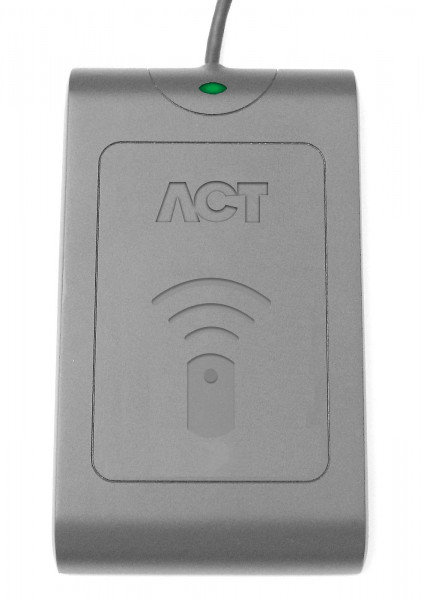

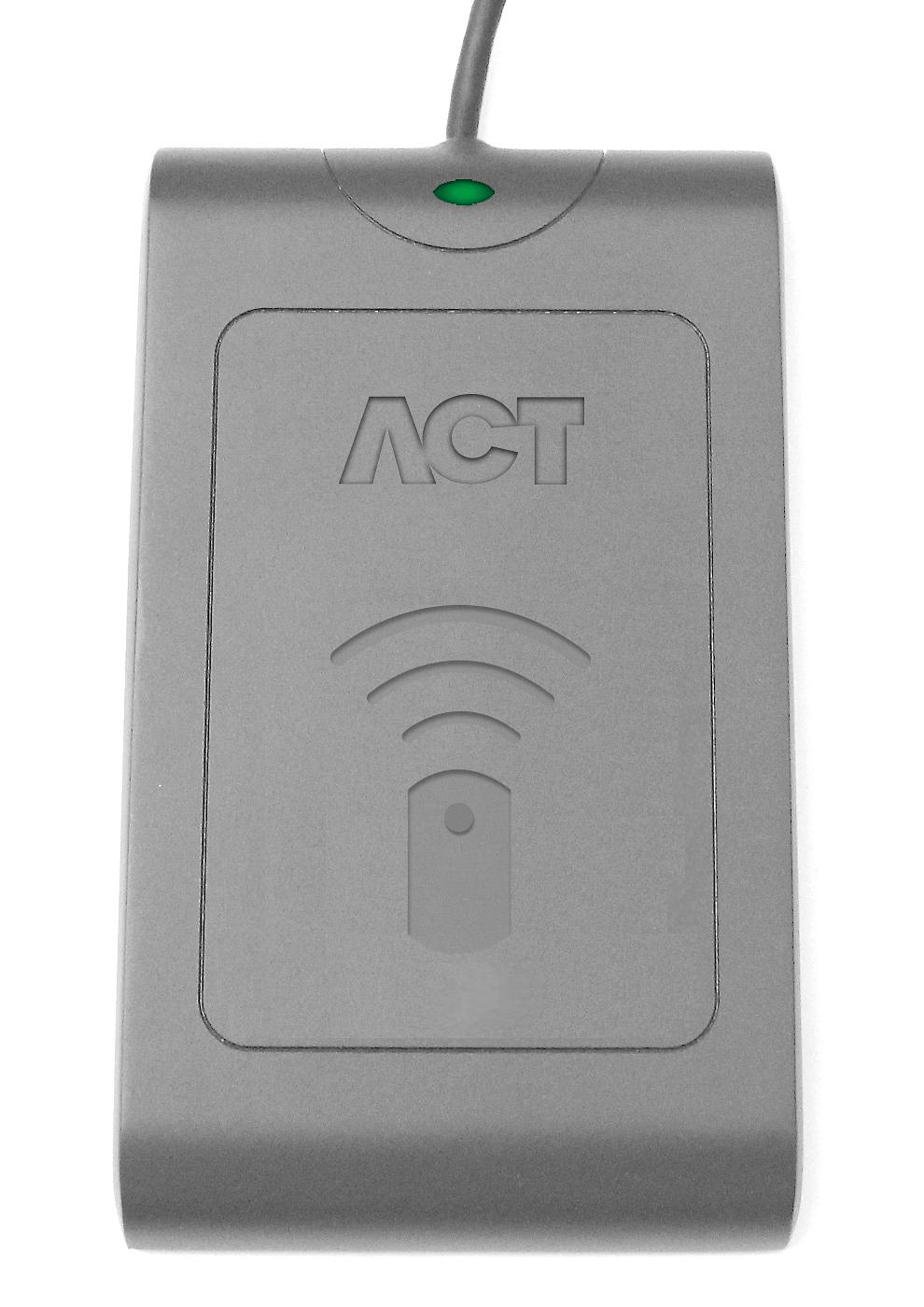

The ACTpro USB reader is a plug and play desktop reader for ACt Enterprise software. The USB readers support ACT RFID, HID, MIFARE Classic and DESFire EV1 technologies.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.15
Purchase unit PCE
EAN/UPC-Code: 7330082004430
Minimum order 1
Statistical code 84719000
ECCN EAR99
Material code V54504-F116-A100
Net weight 0.110
Country of origin CN
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Power supply: Supplied from USB port - 5V DC
Indicators: 3x LEDs (red, green, amber)
Current consumption: <100mA
Card technology: MIFARE Classic, MIFARE Plus, MIFARE DESFire EV1, ACT-RFID (125kHz) and HID 125kHz
Cable length: 1.5m
Buzzer: Yes
Additional components: USB enrolment reader requires ACT Enterprise version 1.3.0.6 or later
Dimensions (L x W x H): 116 x 67 x 14 (mm)
