CD30 Codoor

Please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • V54521-C101-A100
  • 4025515479215
Product information "CD30 Codoor"

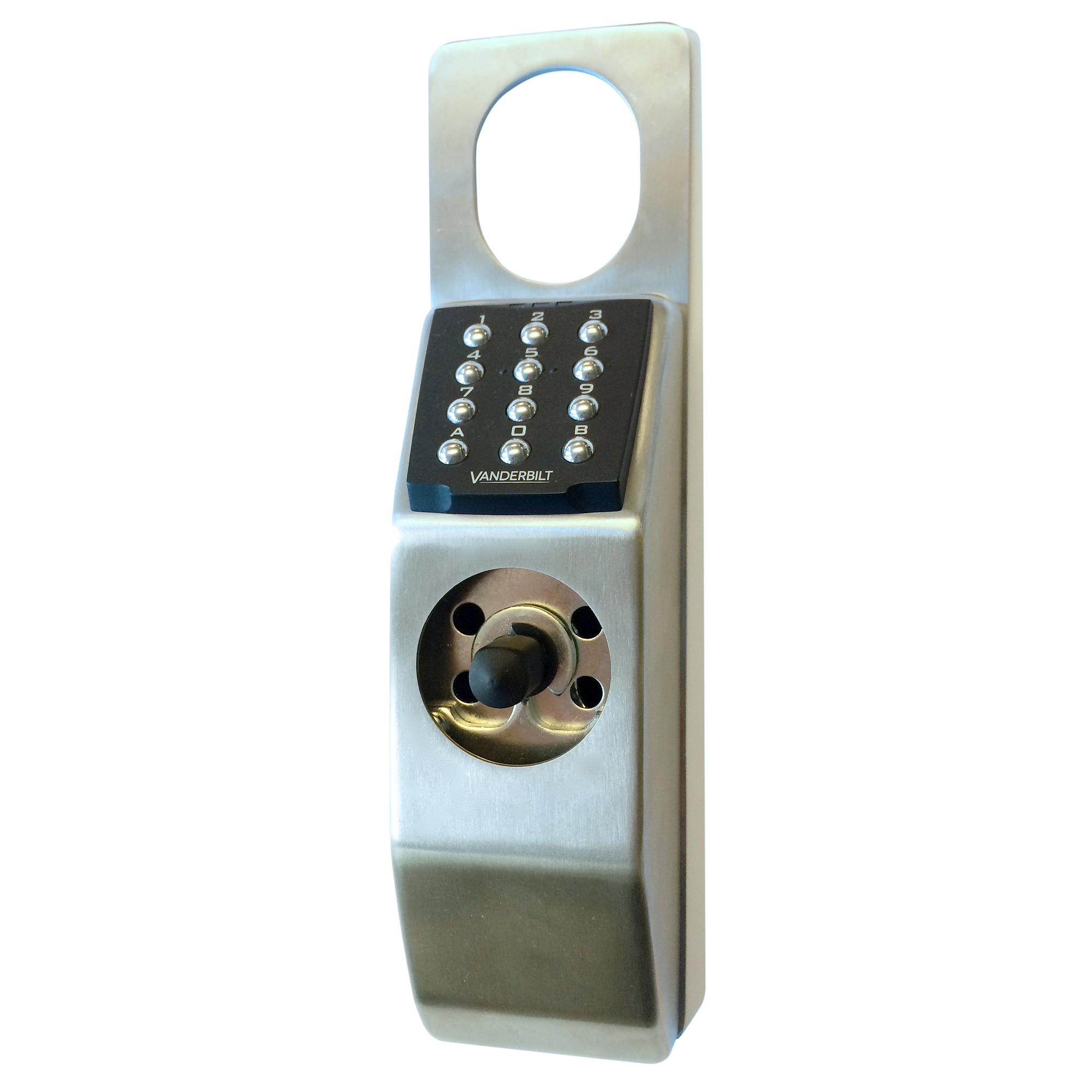

CD30 is a battery-powered codelock that fits directly on an interior door. The programming of codes is carried out directly via the keypad. It is possible to manually change the settings to leave the door unlocked if necessary. The batteries used are standard alkaline or lithium cells. The CD30 is suitable for lock cases with a distance of between 105mm and 116mm between the center of the door handle and the center of the lock cylinder. It is designed to fit a Scandinavian lock case
Gross weight (KG) 1.034
Purchase unit PCE
EAN/UPC-Code: 4025515479215
Minimum order 1
ECCN N
Material code V54521-C101-A100
Statistical code 83014019
Net weight 0.750
Country of origin CN
Housing protection (EN 60529): IP30
Housing material: Rostfri
Weight: 0,76 kg
Colour: Rostfri
Environment: Endast inomhus
Operating temperature: 0 till +50 C.
Code capacity: Nio olika 4-siffriga koder.
Operational time: Ungefär 1 år
Operating voltage: 9VDC. Två batterier, 9V 6LR61 (Ingår ej).
Housing protection: IP30
Operation temperature: 0°C to +50°C
