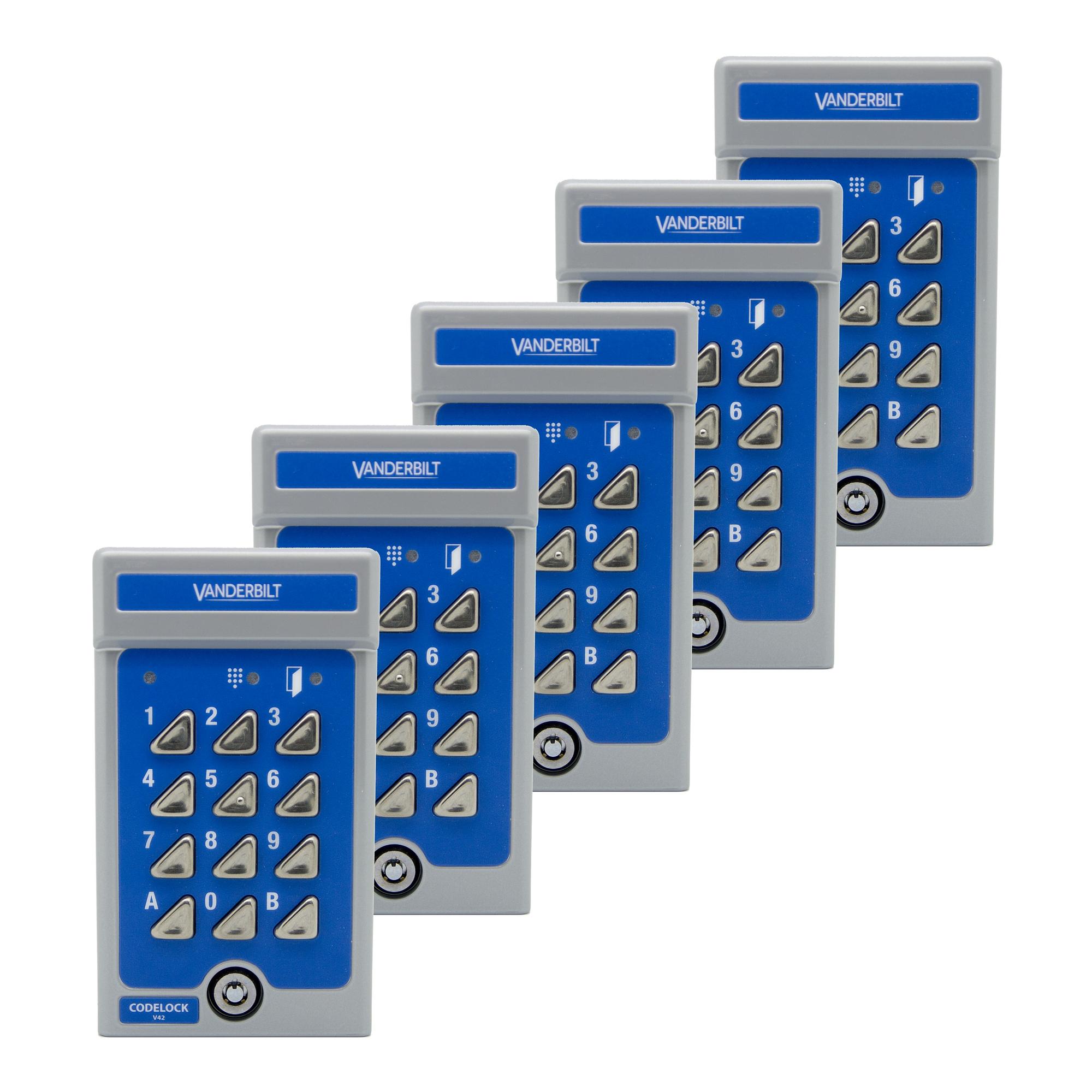

V42-5p V42 Codelock with 2 codes (5pcs)

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V54521-S101-A100

Close menu

Product information "V42-5p V42 Codelock with 2 codes (5pcs)"

The V42 is the best-selling codelock in the world. It is compact and easy to use with a modern design that is suitable for either indoor or outdoor mounting. The V42 has a capacity of two four-digit codes. One can be used by residents while the other is used by the property caretaker, for example. All settings are made directly in the unit.

Gross weight (KG)	0.1
Purchase unit	PCE
Minimum order	1
Statistical code	84719000
ECCN	EAR99
Material code	V54521-S101-A100
Net weight	0.100
Country of origin	PH

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Current consumption:	8 mA in standby
Dimensions (W x H x D):	80 x 140 x 40 (mm)
Weight:	0.72kg (per unit)
Housing:	Gegossenes Metall mit Tasten aus rostfreiem Edelstahl und Sicherheitsschloss
Housing protection:	IP54
Housing material:	Cast metal with stainless steel buttons and security lock
Housing protection (EN 60529):	IP54 design
Operating temperature:	-35 bis +55 °C
Colour:	Blue
Environment:	Indoor or outdoor use (IP54 design). In very exposed locations, use SH2 or SH1 rain cover.
Code capacity:	Two four-digit codes
Opening time:	1–30 sec.
Outputs:	Voltage-free relay contact, max. 1 A, 28 VDC.
Inputs:	Exit button requests with delay. Two separate for code disable.
Operating voltage:	12 to 24 VAC/DC
Operation temperature:	-35°C ~ +55°C
