Ready to ship
Delivery time appr. 1-3 workdays
- Article number: V54530-F107-A100
- EAN/UPC-Code: 4025515470397

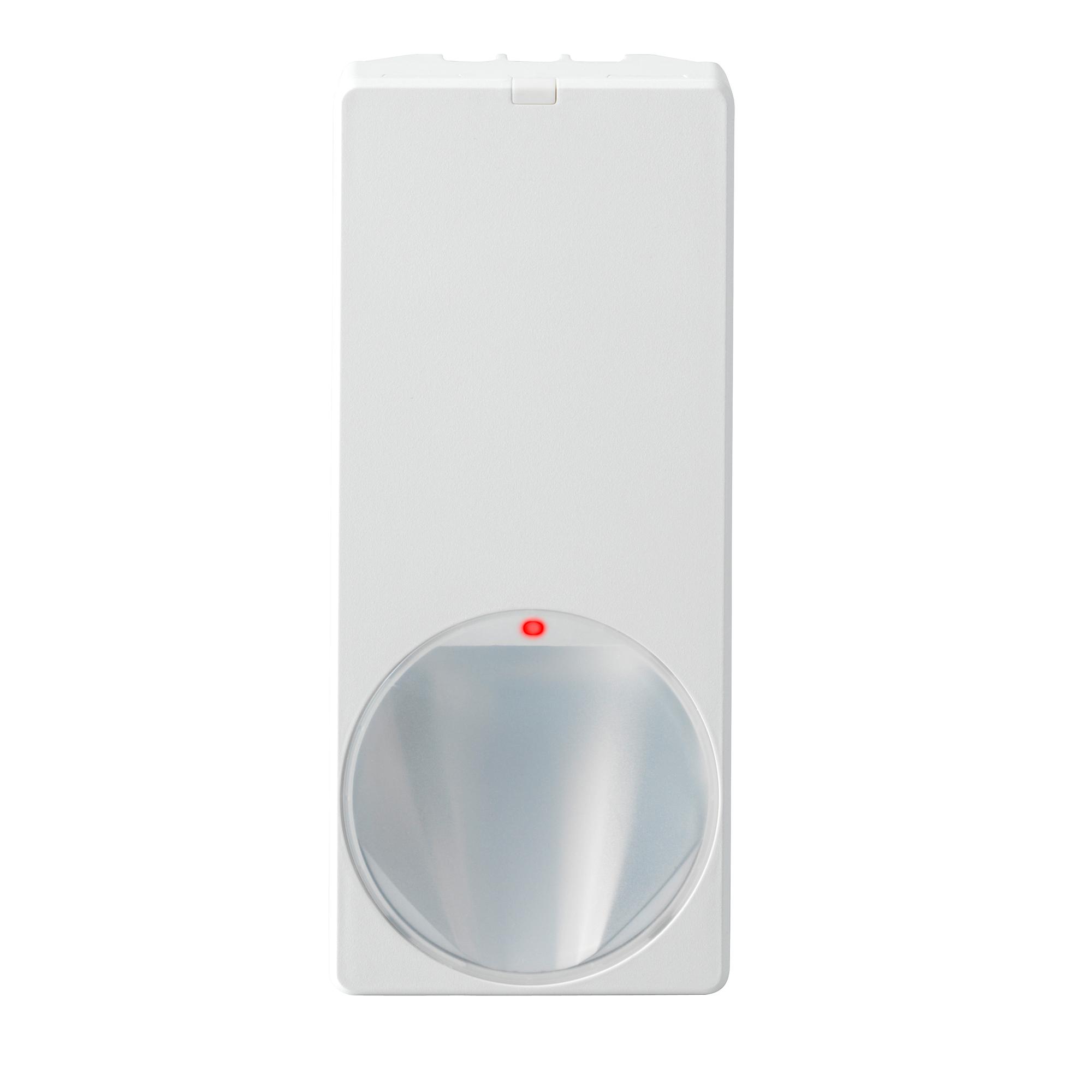

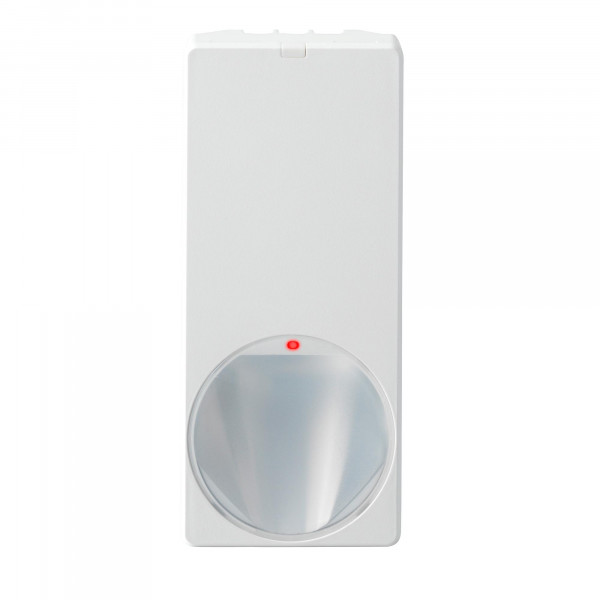

Product information "PDM-I18T PIR AM detector"
MAGIC motion detector PDM-I18T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
|EOL resistor:||RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW|
|Supply voltage:||9 ... 16VDC (12V nom.)|
|Outputs:||30VDC / 100mA, NC|
|Walk test input:||LOW ≤ 1.5V / HIGH ≥ 3.5V|
|Set/unset input:||LOW ≤ 1.5V / HIGH ≥ 3.5V|
|Walking speed:||0.1 ... 4m/s|
|Operating temperature:||-10°C …+55°C|
|Housing protection (EN 60529):||IP41 / IK02|
|Air humidity (EN 60721):||< 85% RH, non-condensing|
|Storage temperature:||-20°C …+60°C|
|Approval:||EN50131-2-2 Grade 3 VdS Class C|
|Current consumption:||3.9mA (rms) 6.6mA (max. peak)|
|Detection characteristics / range:||Volumetric / 18m|
|Sensitivity evaluation mode:||4 settings|
|Optical system:||MAGIC mirror|
|Dimensions (W x H x D):||64mm x 147mm x 35mm|
- Datasheet (Dutch) - V54530-F107-A100_PDM-I18T_023_01_nl
- Datasheet (English) - V54530-F107-A100_PDM-I18T_023_01_en
- Datasheet (French) - V54530-F107-A100_PDM-I18T_023_01_fr
- Datasheet (German) - V54530-F107-A100_PDM-I18T_023_de
- Datasheet (Italian) - V54530-F107-A100_PDM-I18T_023_01_it
- Datasheet (Spanish) - V54530-F107-A100_PDM-I18T_023_01_ES
- Installation instructions (Multilingual) - V54530-F107-A100_PDM-I18T_220_01
