Ready to ship
Delivery time appr. 1-3 workdays
- Article number: V54535-Z129-A100
- EAN/UPC-Code: 7330082004027

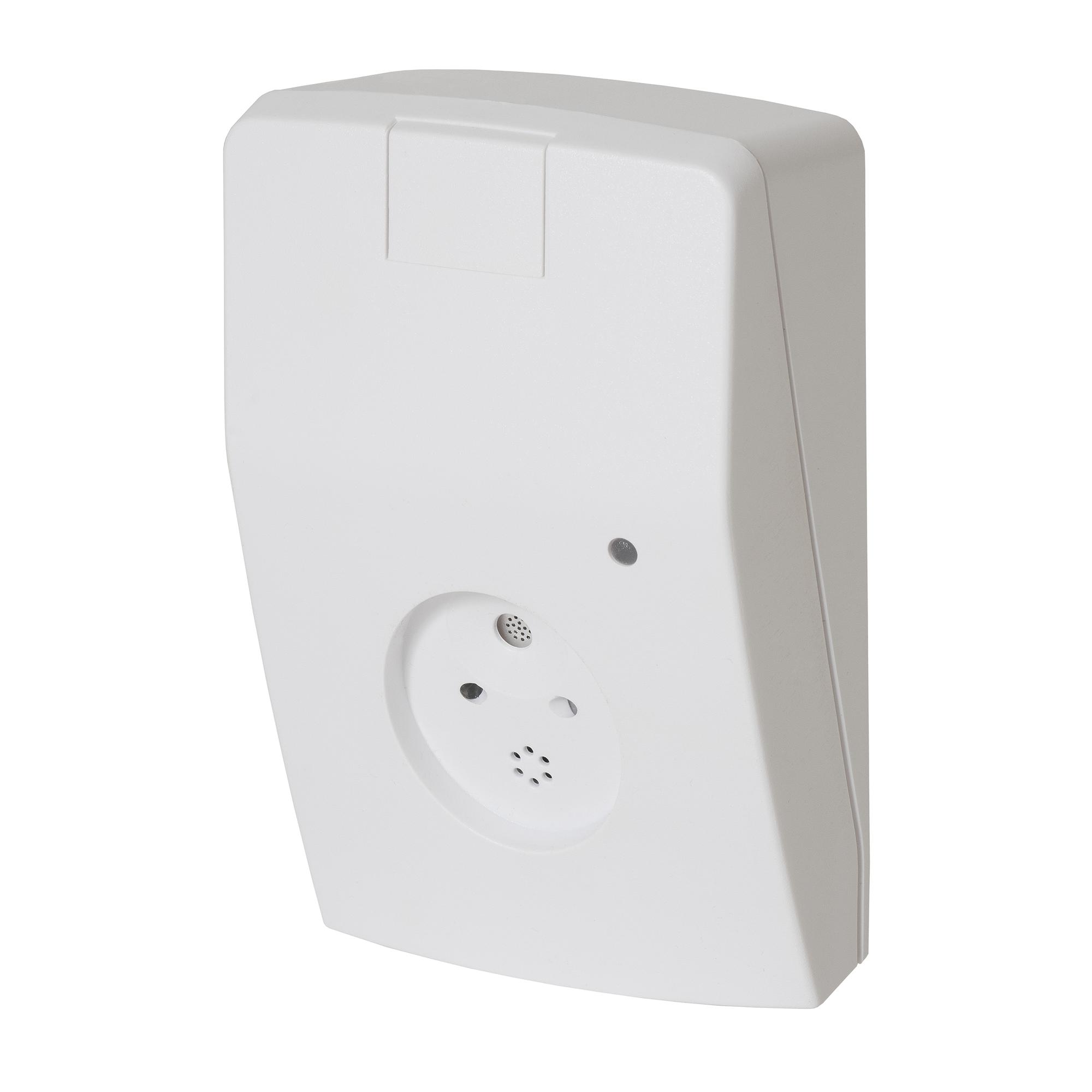

Product information "AGB800-AM Acoustic Glass Break G3"
The AGB800-AM is a modern acoustic glass break detector, complete with anti-mask detection giving an alarm when glass is broken due to attempted intrusion through doors, windows and glazed walls. The detector is based upon the latest technology and has internal filters to avoid unwanted alarms. The DRC Digital Room Compensation feature enables the detector to distinguish between glass breaking and general background noise.
|Quiescent current:||12mA @ 12VDC 8mA @ 24VDC|
|Current consumption, quiescent:||12mA @ 12VDC 8mA @ 24VDC|
|Alarm outputs:||50mA @ 50VDC|
|Approval:||EN50131-2-7-1 Grade 3 VdS Class B G117506|
|Current consumption:||Alarm - 12mA @ 12VDC Alarm - 8mA @ 24VDC|
|Tamper switch:||50mA @ 50VDC|
|Housing material:||ABS plastic, white|
|Environmental class:||Class 1|
|Tamper contact:||50mA @ 50VDC|
|Dimensions (W x H x D):||69 x 110 x 39mm|
- Datasheet (German) - agb800am
- Datasheet (Spanish) - agb800am
- Datasheet (French) - agb800am
- Datasheet (Italian) - agb800am
- Datasheet (Swedish) - agb800am
- Datasheet (English) - agb800am
- Installation instructions (German) - agb800am
- Installation instructions (English) - agb800am
- Installation instructions (Spanish) - agb800am
- Installation instructions (French) - agb800am
- Installation instructions (Swedish) - agb800am
