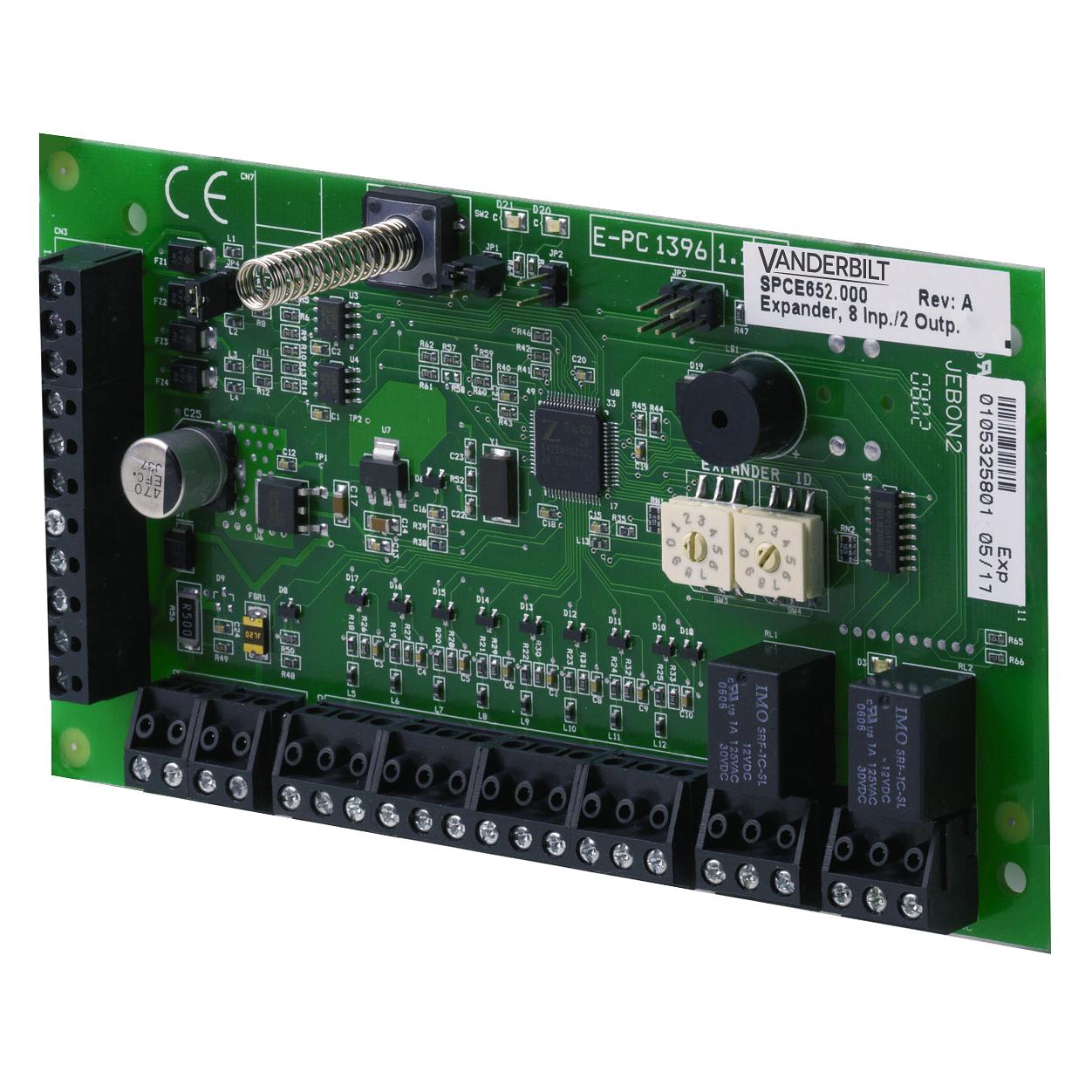

SPCE652.000 Expander board 8 In / 2 Out

SPCE652.000 Expander board 8 In / 2 Out
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54542-F106-A200
  • EAN/UPC-Code: 4025515479222
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCE652.000 Expander board 8 In / 2 Out"
The SPCE652.000 pcb only expander extends the acre Intrusion system via X-BUS with 8 wired zones and 2 fully programmable relay outputs. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander features an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.22
Purchase unit PCE
EAN/UPC-Code: 4025515479222
Minimum order 1
ECCN N
Material code V54542-F106-A200
Statistical code 85311030
Net weight 0.100
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Weight: 0.1000 kg
Mounting: In SPC G2 and G3 cabinets or SPC expander housings
Tamper contact: Front spring tamper, back tamper - provided in kit bag
Quiescent current: Max. 40 mA at 12 VDC
Operating current: Max. 80 mA at 12 VDC (all relays activated)
Interfaces: X-BUS (in, out, branch)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Number of on-board zones: 8
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 150 x 82 x 20 mm (PCB)
