SPCP432.300 Smart PSU (7AH),2-door Exp.

SPCP432.300 Smart PSU (7AH),2-door Exp.
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54545-C103-A100
  • EAN/UPC-Code: 4025515471035
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCP432.300 Smart PSU (7AH),2-door Exp."

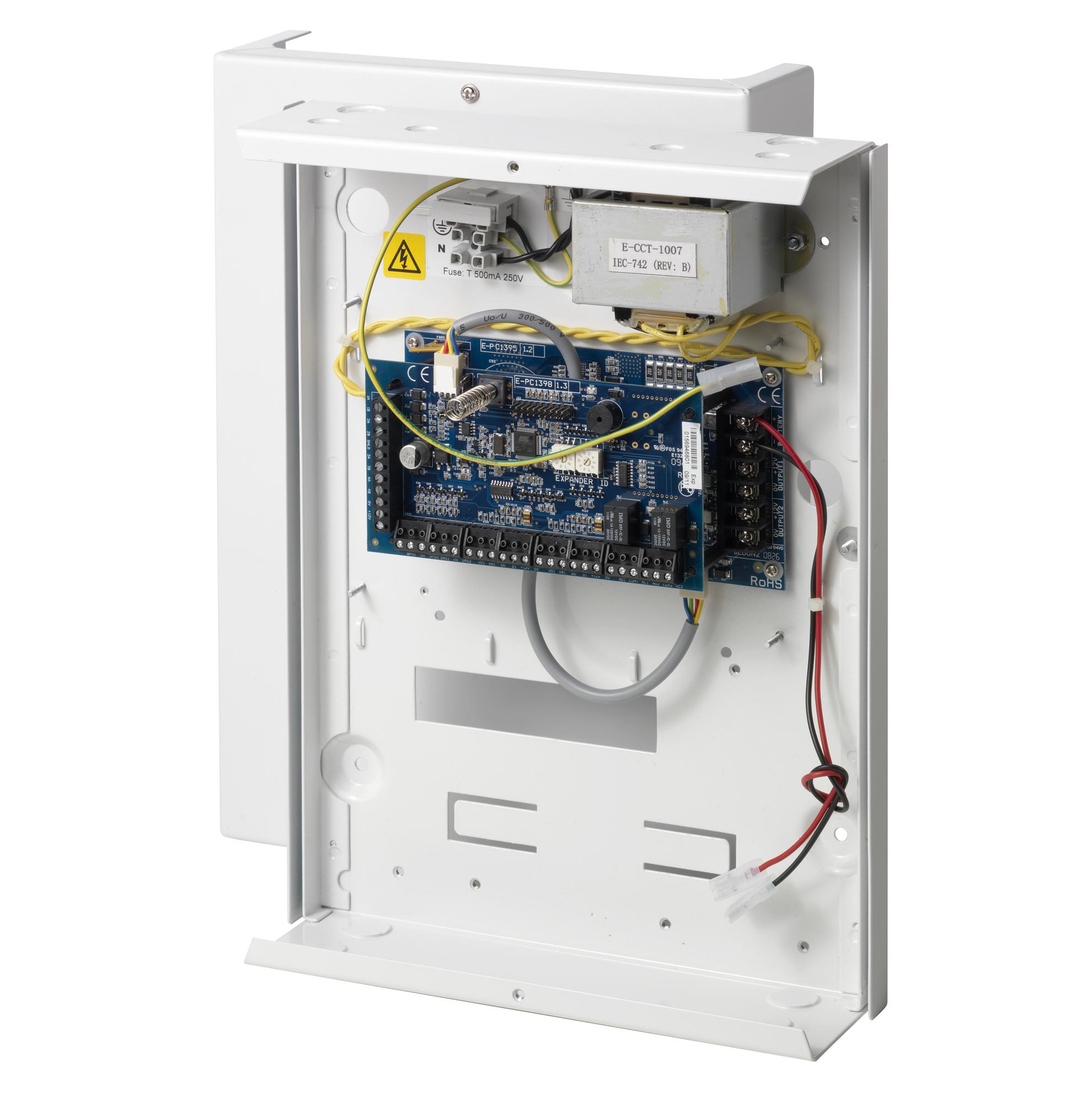

The SPCP432.300 smart power supply expander (PSU) extends the acre Intrusion system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders) and advanced door control functionality for 2 entry doors or 1 entry/exit door. The PSU comes in a tamper protected metal housing with space for an optional 7 Ah battery.
Certificates
Close menu
Import & Export
Gross weight (KG) 5.8
Purchase unit PCE
EAN/UPC-Code: 4025515471035
Minimum order 1
ECCN N
Statistical code 85389099
Country of origin PH
Material code V54545-C103-A100
Net weight 5.510
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: 0 ~ +40 °C
Weight: 4.700 kg
Output voltage: 11-14 VDC in normal conditions (mains powered and fully charged battery)
Power output: Max. 1500 mA bei 12 VDC (750 mA pro Ausgang)
Quiescent current: Max. 82 mA at 12 VDC
Operating current: Max. 124 mA at 12 VDC (all relays activated)
Tamper contact: Front spring tamper
Interfaces: X-BUS (in, out, branch), Reader 1, Reader 2
LED Indicators: 4 outputs (1 void and 1 valid per reader)
Number of on-board relays: 2, for door locks or freely programmable (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Number of on-board zones: 4, for door release switch (DRS) and door position switch (DPS), or freely programmable
Housing: Small metal housing (1.2 mm mild steel)
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Colour: RAL 9003 (signal white)
Dimensions (W x H x D): 264 x 357 x 81 (mm)
