ER10-X USB Enrolment reader, EM/M

ER10-X USB Enrolment reader, EM/M
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54504-F103-A200
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu

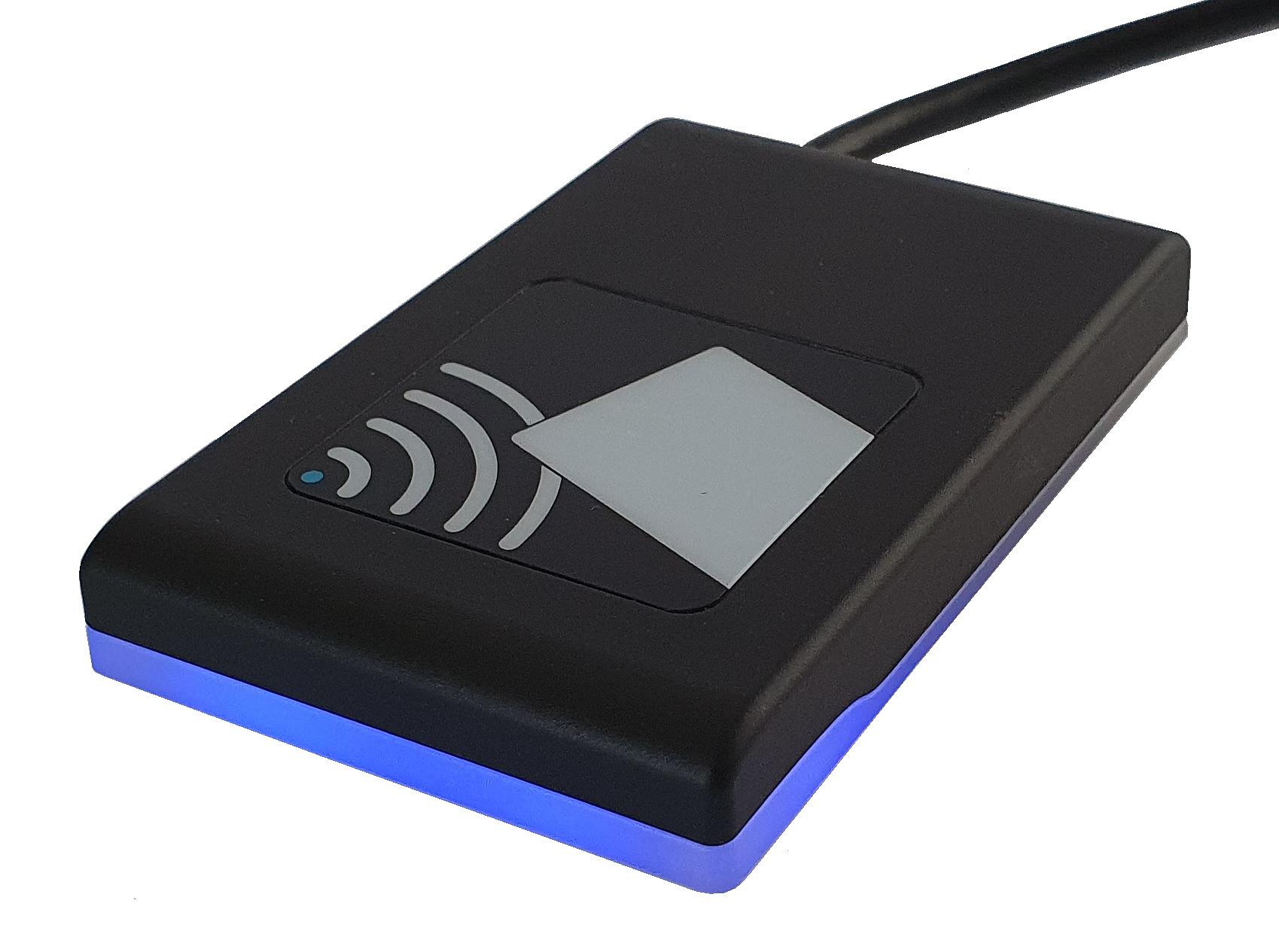

Product information "ER10-X USB Enrolment reader, EM/M"
Vanderbilt’s ER10-X USB Reader is a USB enrolment reader used to read card numbers into various Vanderbilt systems such as ACT Enterprise, ACT365, OMNIS and SPC. The reader software can be configured to present the numbers in the correct format for each system. The ER10-X enrolment reader connects to a PC via USB 2.0 and automatically loads the required driver for either Windows, MAC OS X or Linux. When presenting a 125kHz / MIFARE Classic / MIFARE DESFire card or tag to the ER10-X, the card data is transferred to the PC in the form of keyboard data. This allows for easy integration with existing software where card data is usually manually entered into the system. The ER10-X enrolment reader is equipped with a buzzer for acoustic indication and a multicolour LED for visual indication.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.19
Purchase unit PCE
Minimum order 1
Statistical code 84719000
Material code V54504-F103-A200
Net weight 0.145
Country of origin DK
ECCN EAR99
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Colour: Black
Weight: 0.145kg
LED Indicators: 1 x multicolour LED (red/yellow/green)
Frequency: 125kHz, 13.56MHz
Dimensions (W x H x D): 89mm x 57mm x 12mm
Connectors: USB A Connector on fixed cable USB 2.0 interface
Card technology: EM / 125kHz, MIFARE® Classic CSN/Sector, MIFARE Ultralight CSN, MIFARE DESFire® CSN
Card compatibility: EM / 125kHz • SPC PACE, SPC WIEGAND, SPC AR618X • MIFARE serial, reverse serial, sector • OMNIS
Cable length: Fixed mount / 1.8 m / Black
Audio: Internal buzzer
