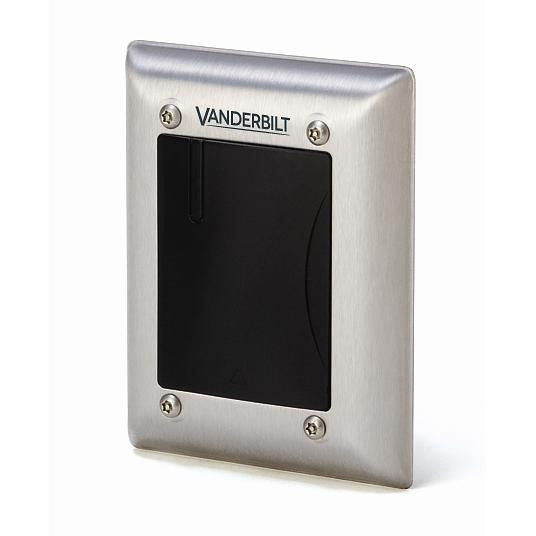

HD500-Cotag COTAG Reader Heavy Duty

HD500-Cotag COTAG Reader Heavy Duty
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V24246-F4703-A1
  • EAN/UPC-Code: 4025515473572
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "HD500-Cotag COTAG Reader Heavy Duty"
The HD500-Cotag reads Vanderbilt unique Cotag cards and tags (both active and passive) which offer ultimate convenience and cost-efficiency. It has a reading range of up to 26 cm with an active card and up to 8 cm with a passive card. Vandal-proof and fire-resistant, the HD500-Cotag is popular both in vulnerable locations and modern office environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.335
Purchase unit PCE
EAN/UPC-Code: 4025515473572
Minimum order 1
Country of origin PH
ECCN EAR99
Statistical code 84716070
Net weight 0.318
Material code V24246-F4703-A1
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: -30 bis +50 °C
Tamper protection: No
Housing material: Polycarbonate case, fully encapsulated electronics, stainless steel outer frame
Housing protection (EN 60529): IP65
Housing protection: IP65
Environment: Indoor & outdoor
Tamper switch: nein
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req. config card)
Operating voltage: 10.6 to 32 VDC
Card compatibility: IB911, IB928, IB958M, IB981 & IB968
Card read distance: Up to 26 cm with active card. Up to 8 cm with passive card
Current consumption: 37 mA @ 12 VDC 39 mA @ 24 VDC
Weight: 0.24kg
Housing: Aus Polykarbonatkunststoff mit vergossener Elektronik, Rahmen aus rostfreiem Stahl
Operation temperature: -30°C ~ +50°C
Colour: Black and stainless steel
Keypad: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Card technology: Cotag
Dimensions (W x H x D): 100 x 128 x 18 (mm)
