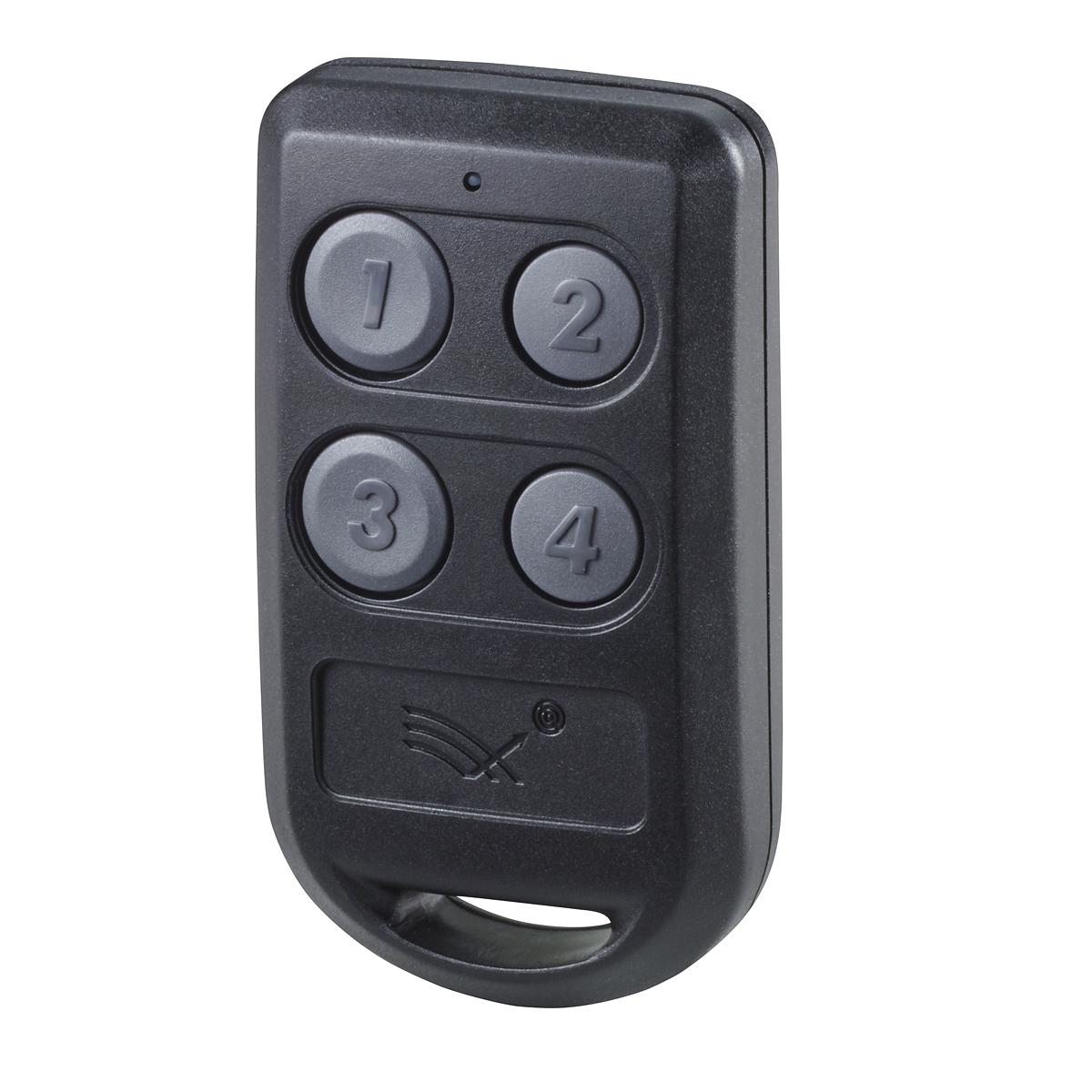

WRT-4+ Long Range Transmitter

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • N54504-Z124-A100
Product information "WRT-4+ Long Range Transmitter"
The WRT-4T is a 4 button Transmitter used with the WRR-44 long range reader. Based upon proven contactless digital ultra high frequency (UHF) technology, the Ranger Receivers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol. Additionally, the WRT-4T Transmitters are active devices, powered by the most reliable and common battery, and equipped with a potted proximity or contactless smartcard module. The modules can be ordered to support several proximity reader technologies and allow the Transmitter to be used as a close-range credential.
Gross weight (KG) 0.326
Purchase unit PCE
Minimum order 1
ECCN N
Material code N54504-Z124-A100
Net weight 0.280
Country of origin US
Statistical code 84716070
Dimensions (L x W x H): 37mm x 64mm x 14mm
Weight: 0.03kg
Battery: Replaceable CR2032, 3.3V
Housing material: Polycarbonate w/ ABS Buttons
Operating temperature range: –40° C to +50°C
Interfaces: Wiegand (26-bit)
Interface: Wiegand (26-bit)
LED Indicators: yes
Housing protection: IP65
Operating temperature: –40° C to +50°C
