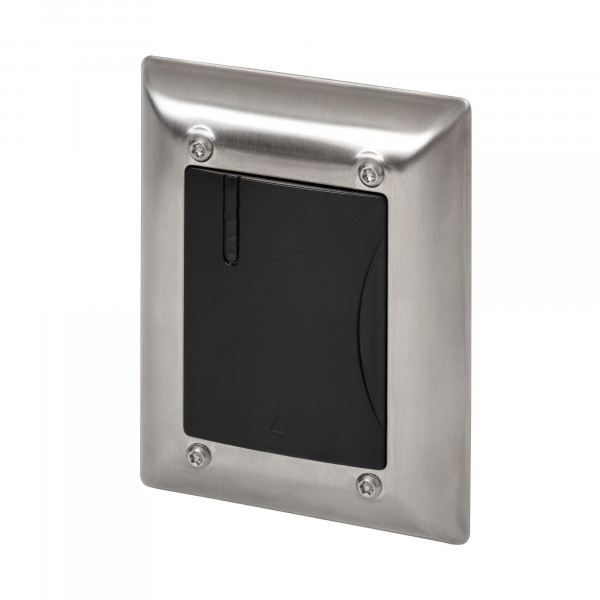

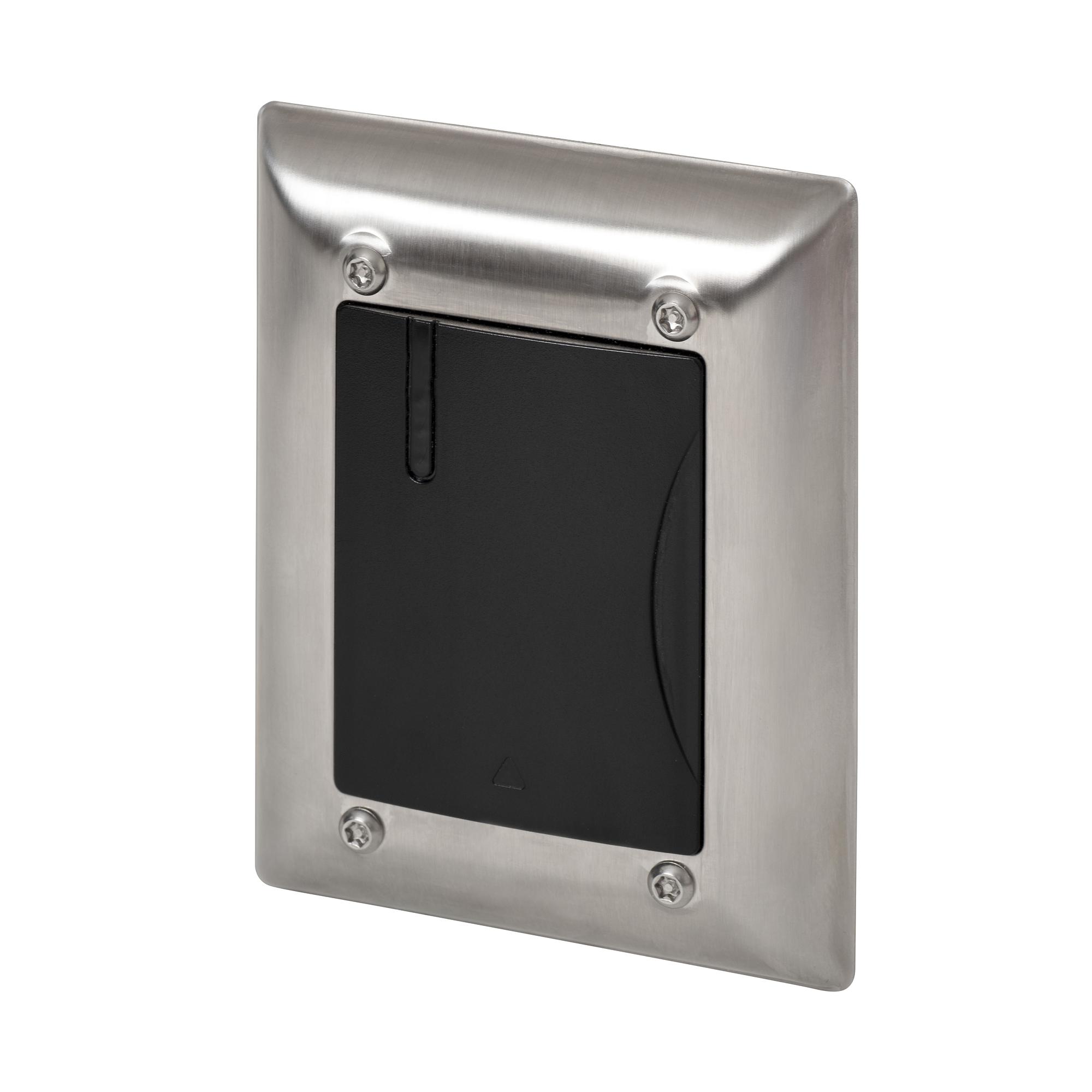

HD100-2 Heavy Duty Reading Head

HD100-2 Heavy Duty Reading Head
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: VGBI:50-510
  • EAN/UPC-Code: 4025515473770
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "HD100-2 Heavy Duty Reading Head"
The HD100-2 is a heavy-duty proximity reading head that is ideal for locations that are vulnerable to physical attack. It is impact and fire resistant and has a reading range of up to 30 cm.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.31
Purchase unit PCE
EAN/UPC-Code: 4025515473770
Minimum order 1
Statistical code 84733020
ECCN EAR99
Material code VGBI:50-510
Net weight 0.295
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Approval: CE
Operating temperature: -30 ~ +50 °C
Card read distance: Up to 32 cm with active card. Up to 11 cm with passive card.
Card compatibility: 0911‚ 0928-0‚ 0958-101‚ 0981‚ 0968-0
Interface to controller: RF
Housing: ABS base with clip on ABS front cover
Weight: 0.11 kg
Colour: Black and stainless steel
Environment: Indoor or outdoor use
Tamper switch: No
Keypad: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Card technology: Cotag
Housing protection: IP55
Dimensions (W x H x D): 128 x 100 x 18 (mm)
Documentation
Close menu
