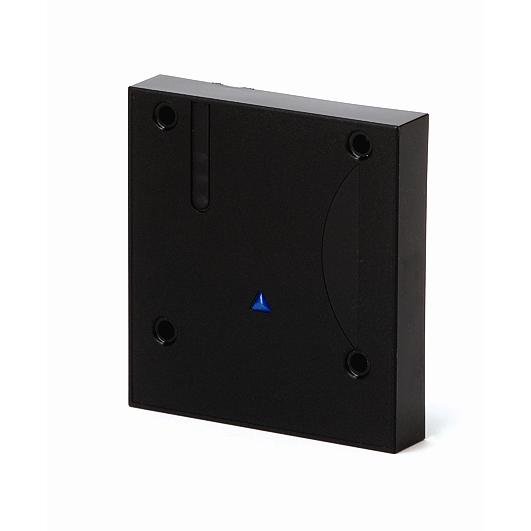

PM500-EM Prox 125kHz Reader panel mount

PM500-EM Prox 125kHz Reader panel mount
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V24246-F3903-A1
  • EAN/UPC-Code: 4025515473510
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "PM500-EM Prox 125kHz Reader panel mount"
The PM500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It is designed to fit most remote call point enclosures. It is supplied with a custom-machined perspex front panel for increased aesthetic appeal. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.18
Purchase unit PCE
EAN/UPC-Code: 4025515473510
Minimum order 1
Country of origin PH
ECCN EAR99
Statistical code 84716070
Net weight 0.171
Material code V24246-F3903-A1
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Housing protection (EN 60529): IP55
Colour: Black
Weight: 0.15 kg
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
Card compatibility: IB41-EM, IB42-EM IB44-EM, IB45-EM
Tamper protection: No
Card read distance: Up to 5 cm
Tamper switch: No
Current consumption: 20 mA @ 12V DC 24 mA @ 24V DC
Housing material: High impact polycarbonate outer casing, with encapsulated electronics
Housing: High impact polycarbonate outer casing, with encapsulated electronics
Operation temperature: -30°C ~ +50°C
Operating temperature: -30 ~ +50 °C
Operating voltage: 10.6 ~ 32 VDC
Environment: Indoor or outdoor use
Keypad: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Housing protection: IP55
Dimensions (W x H x D): 68 x 73 x 13.5 (mm)
