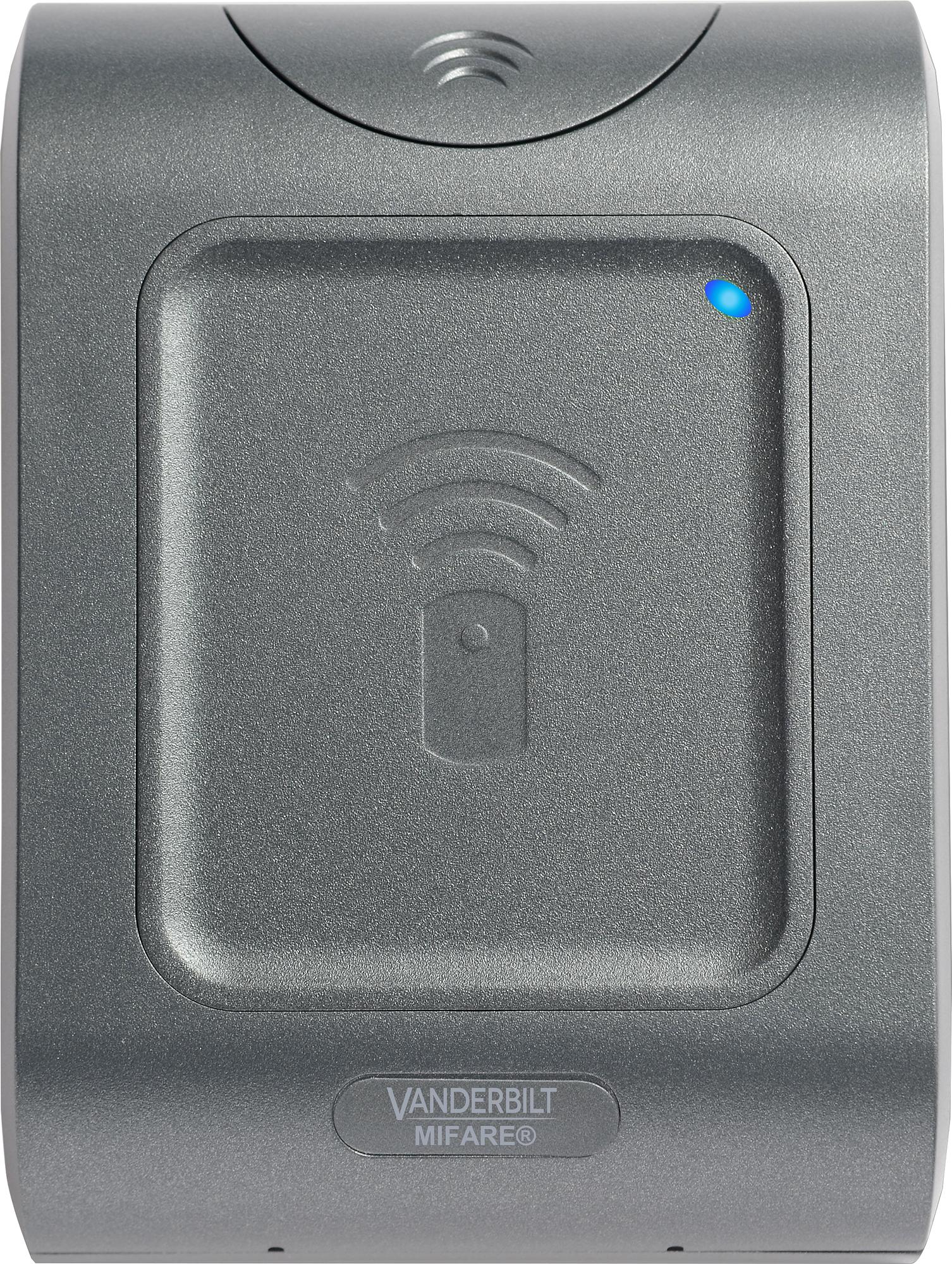

EV1040e ACTpro EV1 Reader

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V54504-F123-A100
EAN/UPC-Code: 7330082004508

Close menu

Product information "EV1040e ACTpro EV1 Reader"

MIFARE DESFire EV1 cards are smartcards that contain memory that enable multiple applications to read and write data to and from the card. MIFARE DESFire EV1 card technology is highly secure and is widely used for access control, cashless vending, corporate ID cards, smart printing / copying, transportation and stadium ticketing. MIFARE DESFire EV1 features mutual three pass authentication using 128 bit AES encryption. DESFire EV1 cards can hold up to 28 different applications and 32 files per application. Each MIFARE DESFire EV1 card has a unique serial number.

Close menu

Gross weight (KG)	0.286
Purchase unit	PCE
EAN/UPC-Code:	7330082004508
Minimum order	1
Statistical code	84719000
Material code	V54504-F123-A100
ECCN	EAR99
Net weight	0.250
Country of origin	CN

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Operating temperature:	-40°C ~ +70°C
Weight:	0.27kg
Impact rating:	IK08
Mounting:	Surface/Flush
Connectors:	Connector Block
Compatibility:	MIFARE ISO 14443A Compatible
Operating voltage:	12 - 24 Volt DC
Environment:	Indoor & outdoor
Keypad:	No
Housing protection:	IP55
Dimensions (L x W x H):	95 x 128 x 19 (mm)
