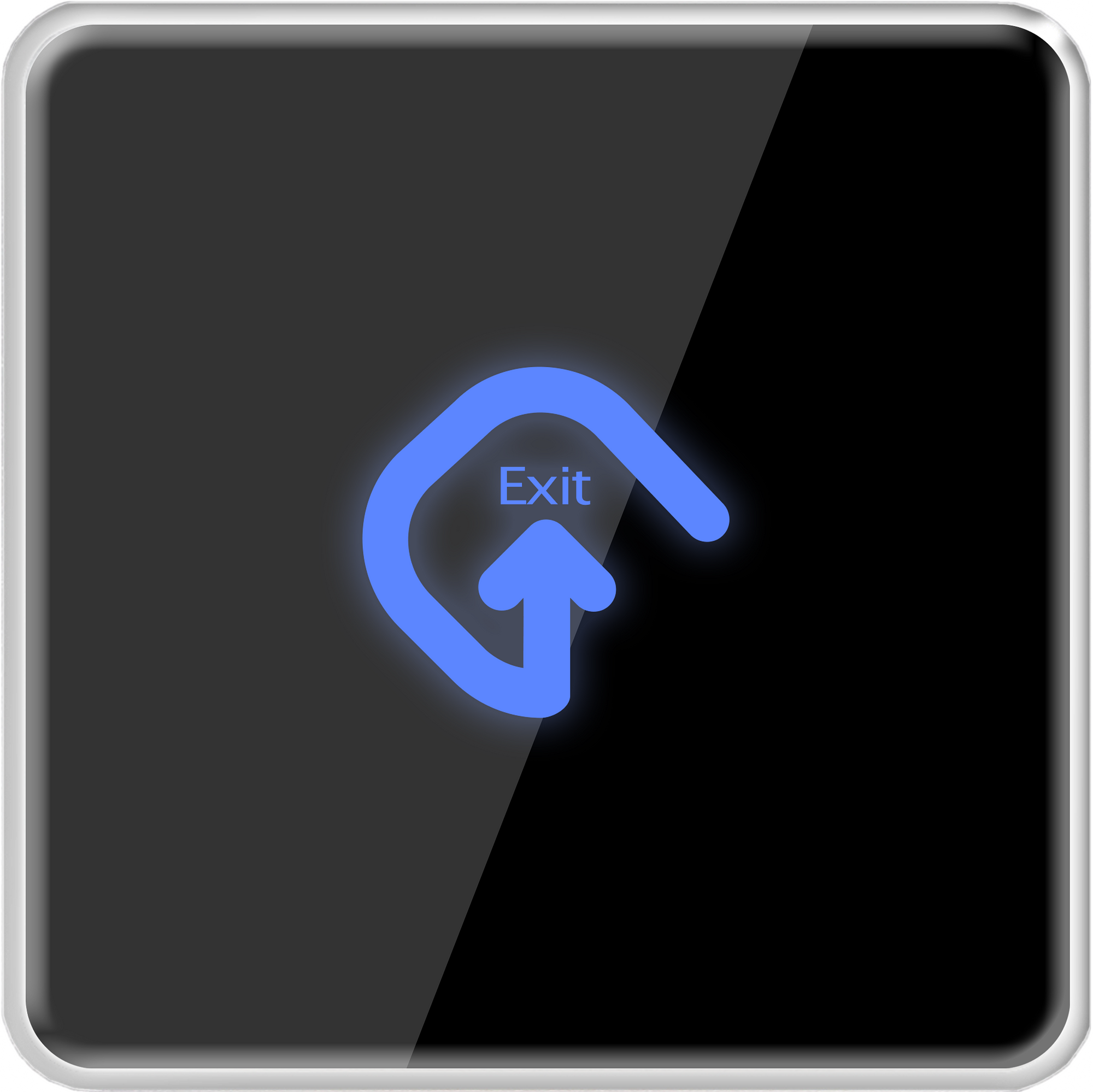

BLUE-EX Contactless Door Exit Button

Preview: BLUE-EX Contactless Door Exit Button Preview: BLUE-EX Contactless Door Exit Button Preview: BLUE-EX Contactless Door Exit Button
BLUE-EX Contactless Door Exit Button
BLUE-EX Contactless Door Exit Button
BLUE-EX Contactless Door Exit Button

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54504-Z164-A100
Description Certificates Import & Export Resources Technical data Documentation Useful Links
Description
Close menu
Product information "BLUE-EX Contactless Door Exit Button"
The BLUE-EX door exit button facilitates non-contact door release for applications where high standards of hygiene are required. It is designed in the same look and feel as the Bluetooth reader range to round off the family offering.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.1
Purchase unit PCE
Minimum order 1
ECCN N
Material code N54504-Z164-A100
Statistical code 85439000
Country of origin CN
Net weight 0.050
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Opening time: Digital timer to control the relay output timing from 1 to 15 sec.
Power supply: 12VDC to 24VDC
Detection characteristics / range: Capacitance proximity with DIP-switch to adjust trigger distance between 2cm and 5cm (default setting - 5cm).
Mounting: Fit with UK gang box standard
Relay outputs: NC/NO jumper selectable rated @ 30Vdc; 1A
Power consumption: 150mA (max. @ 12VDC)
Air humidity (EN 60721): 10% - 90%
Housing material: PC, ABS
Buzzer: Internal audio indicator
Operating temperature: -20°C to +60°C
Dimensions (L x W x H): 92 x 92 x 8.5 (mm)
