Product information "ENC-010 Enclosure 490x530x142mm"

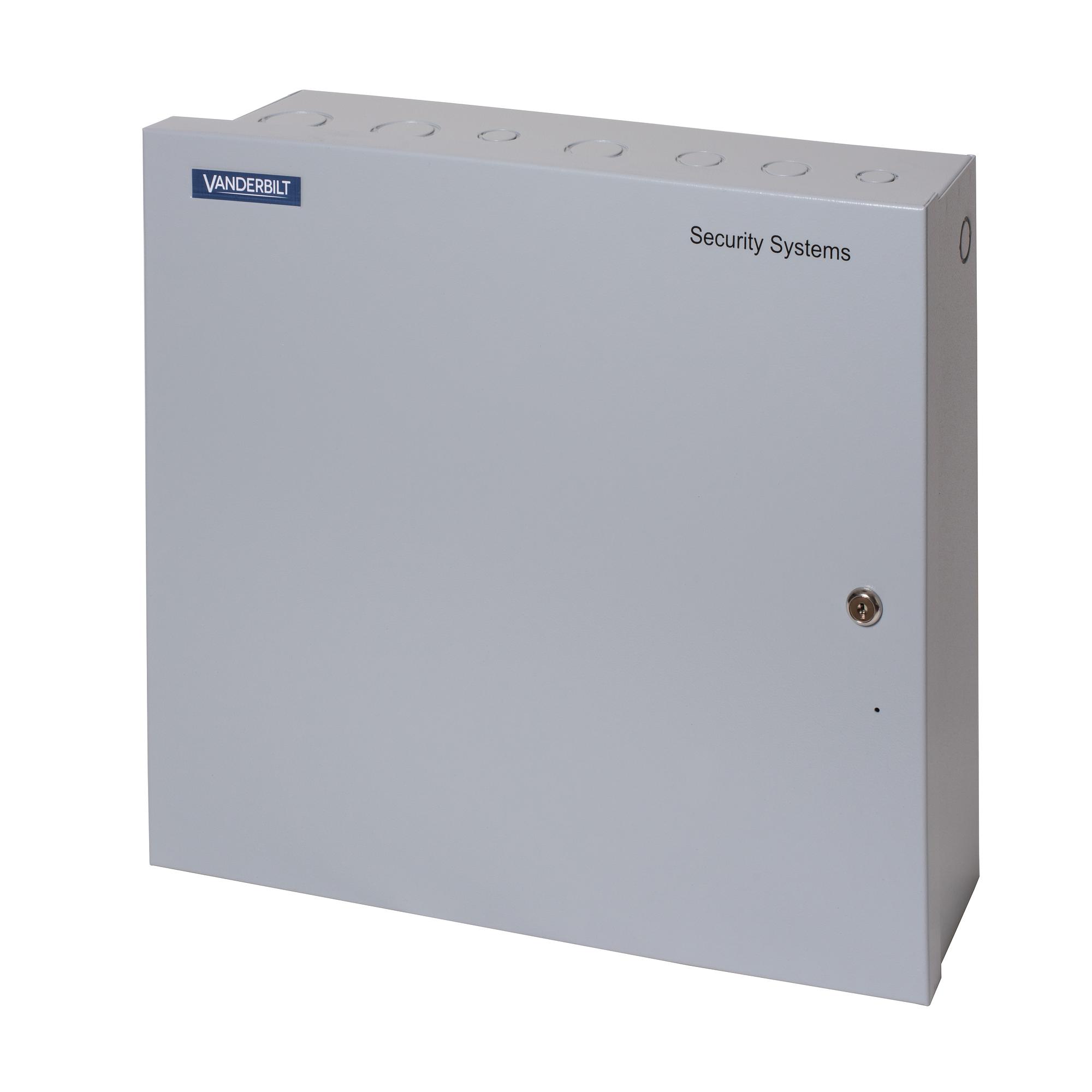

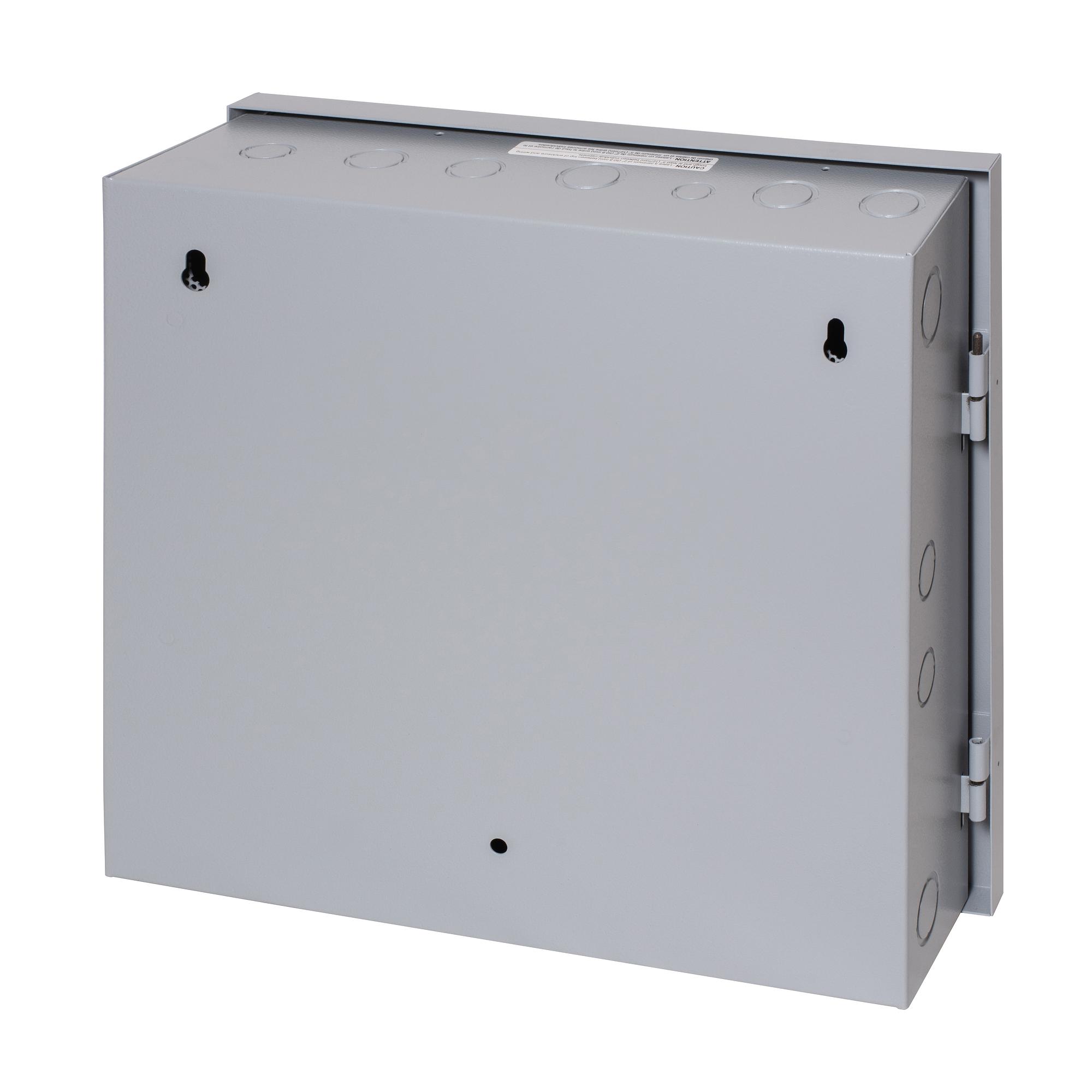

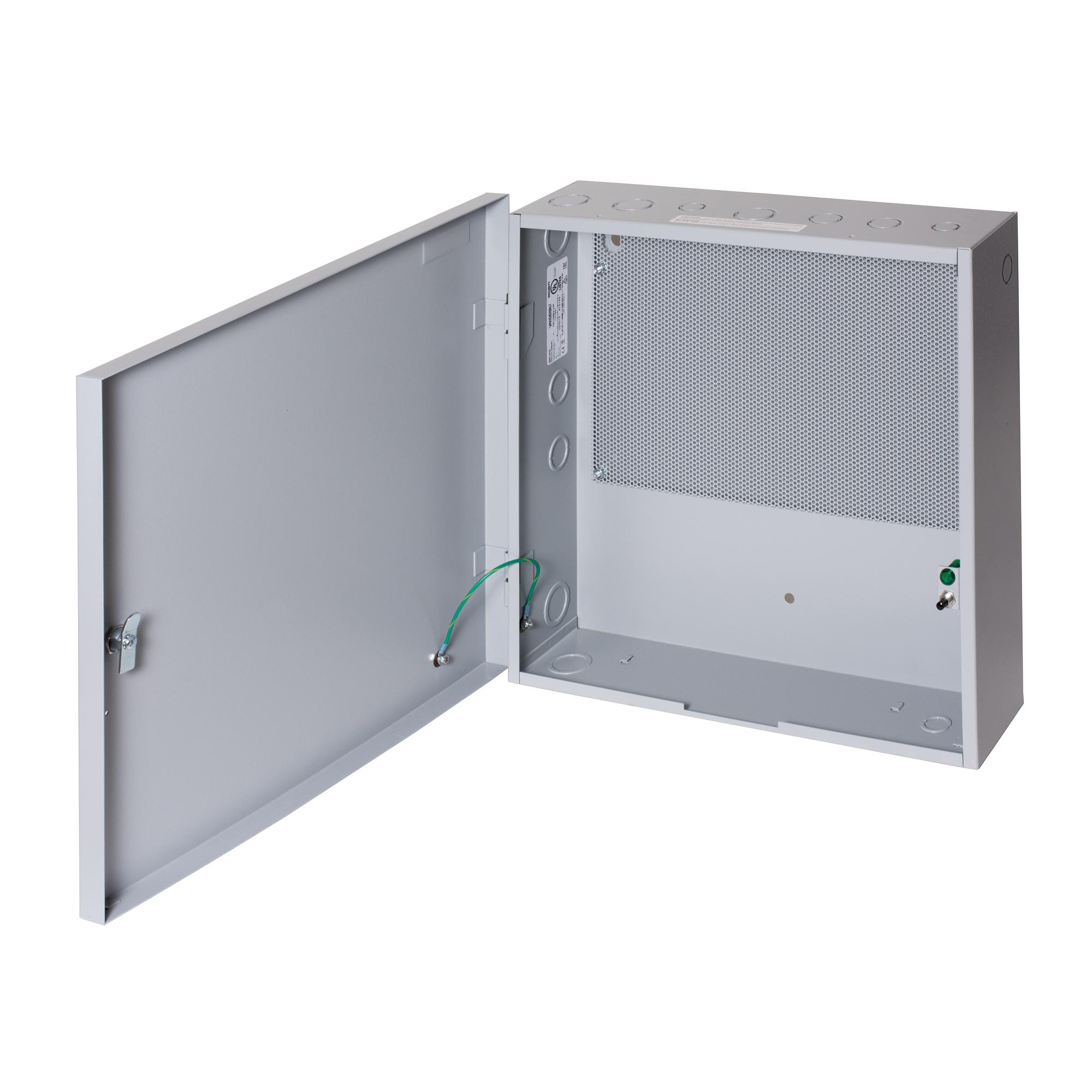

Security cabinet to house the SiPass access control hardware. Designed in tandem with the hardware itself, the surface-mounted, single door enclosures ate purpose-built to provide secure housing while maximizing convenience of installation and operation. Cabinets feature multiple access points for cabling, an external LED to indicate the power status, a lockable door, an interior designed for holding Printed Circuit Boards and a finished, modern exterior. Three different sizes are available: small, medium and large. Even the smallest cabinet can house an Advanced Central Controller & Input Point Module, with plenty of space for peripherals like backup batteries and power supplies. The largest cabinet can house a combination of hardware unit types, making it ideal for large facilities with complex requirements. All cabinets are pre-assembled and shipped ready to install. Mounting points on the internal backplane and the chassis allow for quick and easy installation of PCBs and the enclosure itself.
Gross weight (KG) 12.34
Purchase unit PCE
EAN/UPC-Code: 4025515475149
Minimum order 1
Country of origin US
Net weight 11.400
ECCN EAR99
Material code V6FL7820-8DA10
Statistical code 84733080
Tamper switch: Tamper input into ACC to detect unauthorized access
Housing material: Thick plate steel
Tamper contact: Tamper input into ACC to detect unauthorized access
LED Indicators: External LED to show the ACC Power on/off
Dimensions (W x H x D): 49 x 53 x 14.2 (cm)
