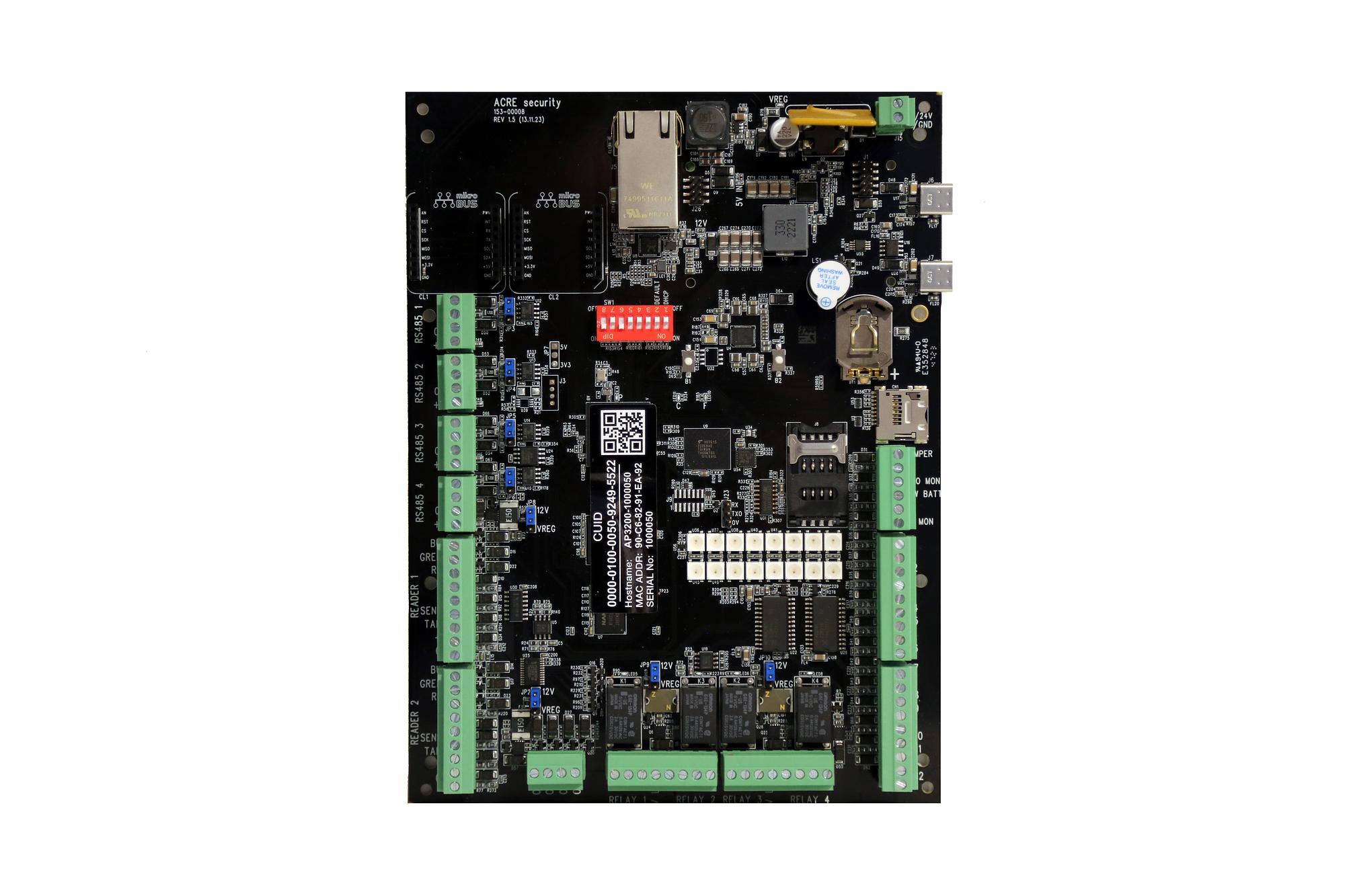

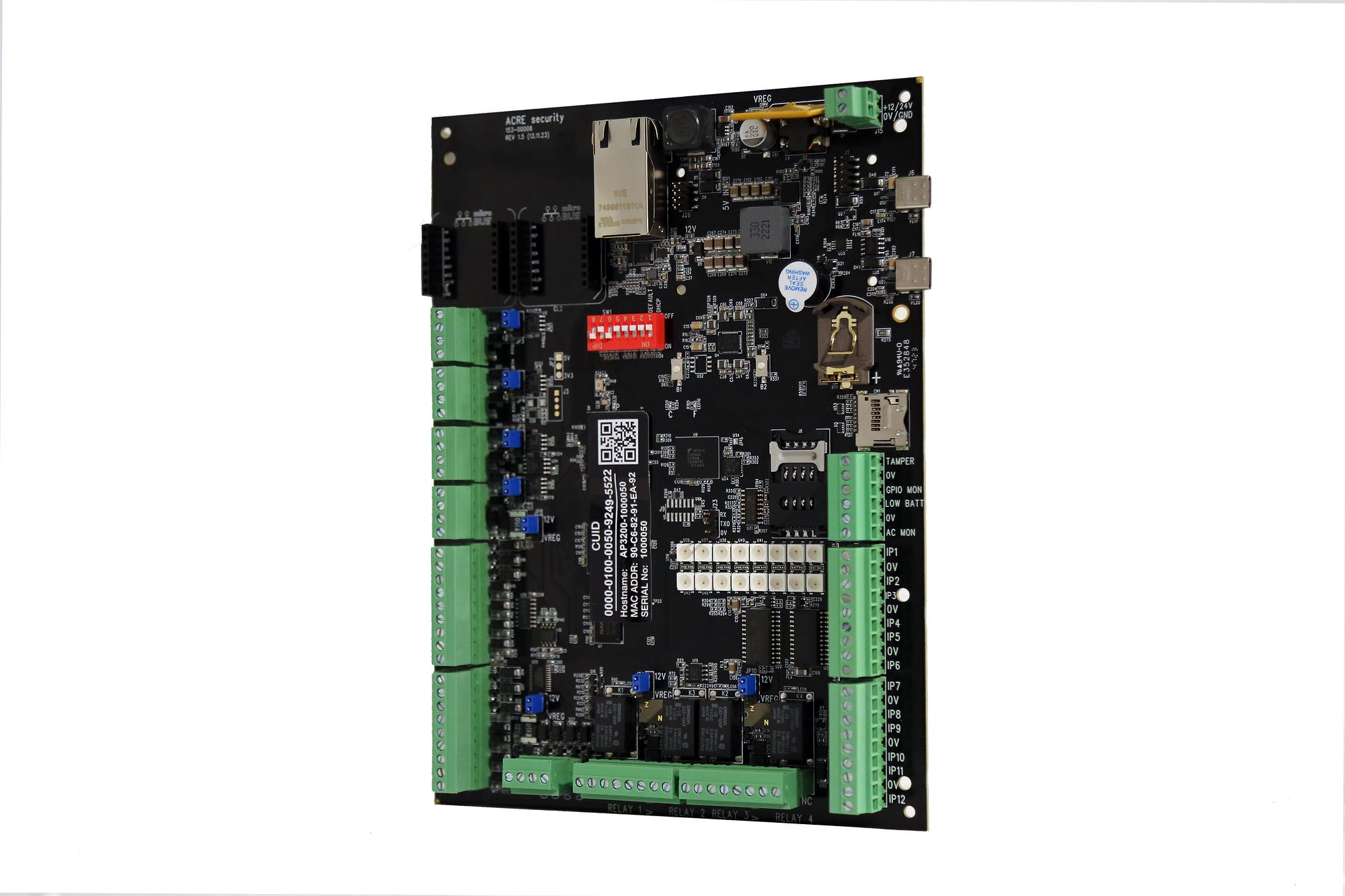

acre Smart Controller (board only)

Preview: acre Smart Controller (board only) Preview: acre Smart Controller (board only)
acre Smart Controller (board only)
acre Smart Controller (board only)

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: ASC-1400-B1
  • EAN/UPC-Code: 7330082007189
Description Import & Export Resources Technical data Documentation
Description
Close menu
Product information "acre Smart Controller (board only)"
4 Door Access Smart Controller, Board Only. Supports 4 Doors OSDP (8 Readers Entry/Exit) or 2 Doors Wiegand (4 Readers Entry/Exit) with 12 Contact Inputs and 4 Relay Outputs. With a cardholder capacity of 250,000 and access level capacity of 32,000, the acre Smart Controller can accommodate organizations of any size.
Import & Export
Gross weight (KG) 0.34
Purchase unit PCE
EAN/UPC-Code: 7330082007189
Minimum order 1
Statistical code 84719000
Material code ASC-1400-B1
ECCN EAR99
Net weight 0.200
Country of origin CZ
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Dimensions (L x W x H): 4.1 in. (105 mm) x 8 in. (205 mm) x 0.9 in. (25 mm)
Weight: 10.58 oz. (300 g) nominal, board only
