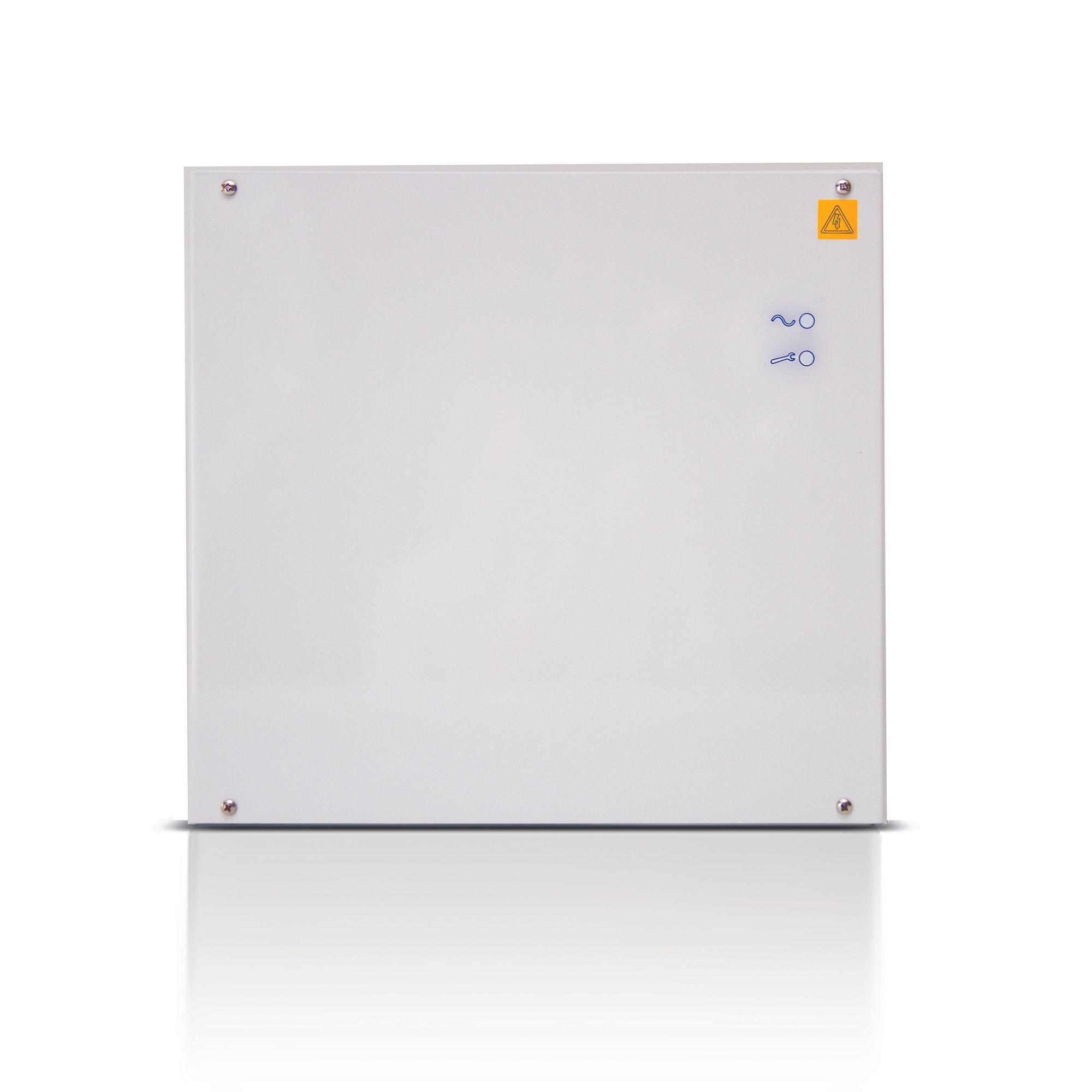

Product information "ACC-APM-2420 SiPass IP Contr. 24V 2A PSU"
The ACC-APM-2420 IP Door Controller with metal housing and 24V 2A Power Supply Unit (PSU) is ideal when, complete, easy-to-use door control is required. The ACC-APM-2420 has the full attributes offered by the ACC-AP IP Door Controller but in addition offers metal housing with space for batteries and knock-outs for the signal cable wiring as well as the power mains cable. The incorporated PSU provides a battery management system comprising low battery voltage detection and deep discharge protection to ensure that the battery is not permanently damaged through excessive discharge. Comprehensive protection is built-in as standard including mains transient filtering, electronic output overload protection and fuses on the load and battery outputs.
|Power consumption:||Without reader Idle: 12V DC: 200 mA 24V DC: 125 mA Full on without readers 12V DC: 600mA 24V DC: 400 mA|
- Datasheet (English) - ACC-AP Datasheet
- Datasheet (French) - Datasheet FR
- Install manual (English) - Manual
- Certificate (CE) - Issued by Vanderbilt, on 20/05/2022
- Certificate - Issued by KVALITET, on 06/05/2019
- Certificate (MSDS) - Issued by Supplier, on 10/01/2020
- Certificate (UN38.3) - Issued by Supplier, on 19/12/2019
