SO/Piccolo/BL/G3/S5 Sound/Beacon G3

SO/Piccolo/BL/G3/S5 Sound/Beacon G3
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54539-Z135-A100
  • EAN/UPC-Code: 7330082004010
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu

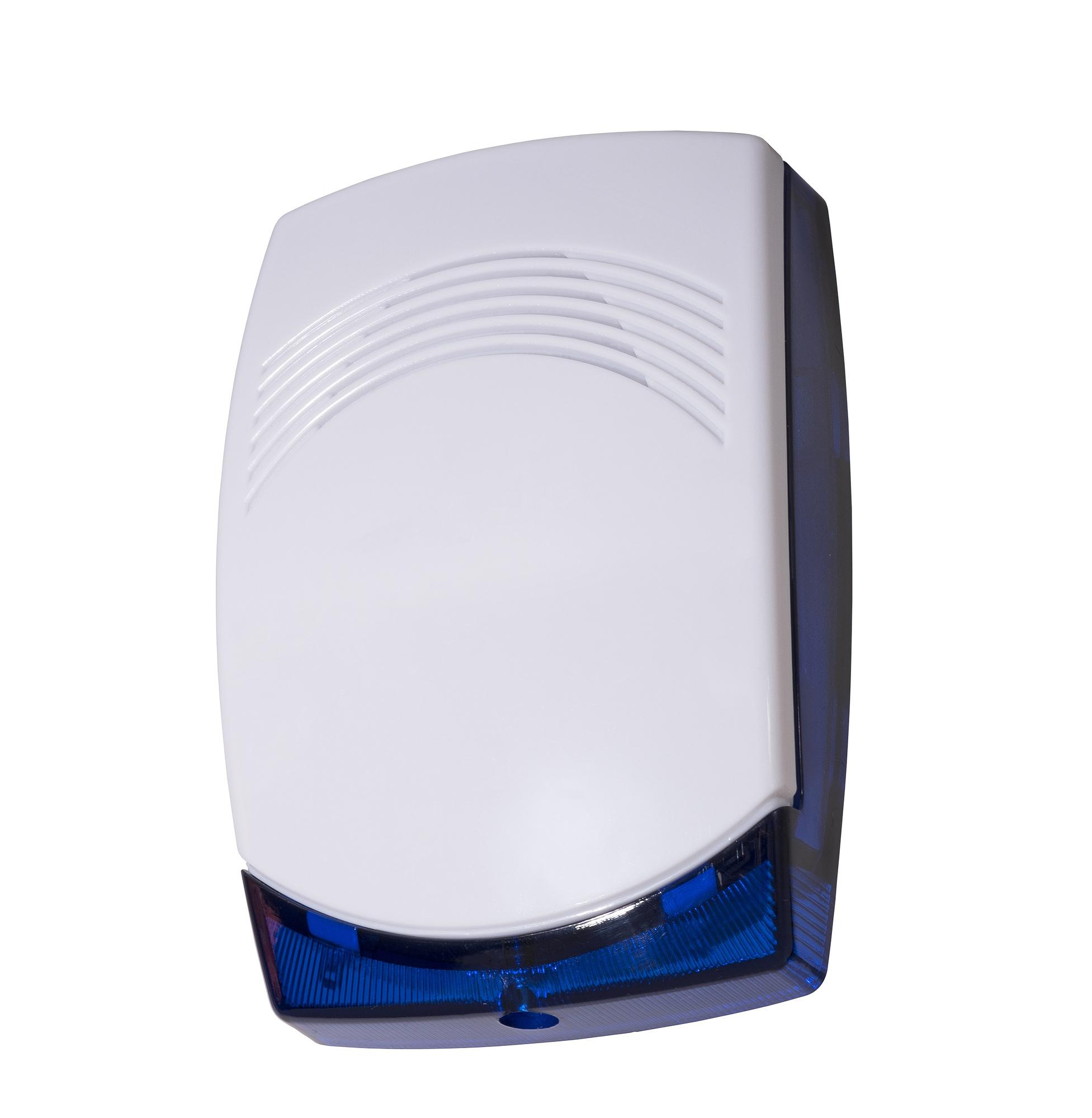

Product information "SO/Piccolo/BL/G3/S5 Sound/Beacon G3"
The Picollo sounder/Beacon has EN50131 grade 3 approval for internal applications. This flexible and aesthetically pleasing device can be configured in different operational modes. In addition to the visual alarm output, there are system status LED's that can be used to provide additional status indications.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.168
Purchase unit PCE
EAN/UPC-Code: 7330082004010
Minimum order 1
ECCN N
Material code N54539-Z135-A100
Country of origin GB
Net weight 0.145
Statistical code 85311095
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Tamper protection: When opening and tearing
Operating temperature: -15°C ~ +40°C
Dimensions (W x H x D): 85 x 125 x 37.5 (mm)
Housing material: Lid - white ABS LED window - blue ABS
Sound level: 112 dB (A) @ 1 metre
Housing: Lid - white ABS LED window - blue ABS
Operating current: 100mA sounder and beacon
Input voltage: 9-15VDC
Operating voltage: 12VDC nominal
Tamper switch: Cover and removal of mounting surface
