WMAG-S Wireless Mag Cont & shock

Preview: WMAG-S Wireless Mag Cont & shock Preview: WMAG-S Wireless Mag Cont & shock
WMAG-S Wireless Mag Cont & shock
WMAG-S Wireless Mag Cont & shock

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54538-F141-A100
  • EAN/UPC-Code: 7330082005161
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu

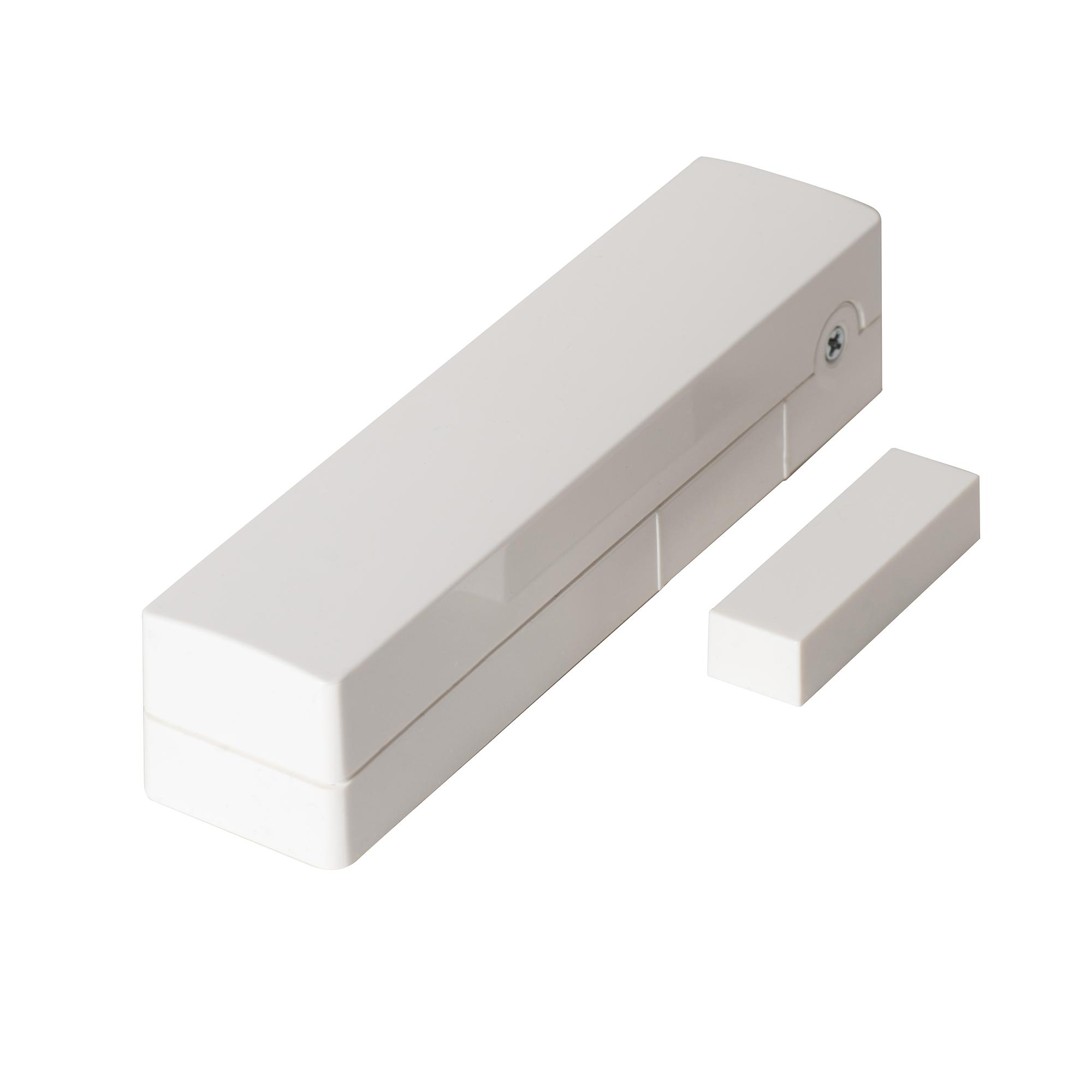

Product information "WMAG-S Wireless Mag Cont & shock"
The WMAG-S is a combined magnetic contact and shock sensor, which can be conenccted to the SPC wirelss system. The magnetioc contact is selectable and the shock sensor has four sensitivity settings. All configuration is performed via the wirelss communications.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.07
Purchase unit PCE
EAN/UPC-Code: 7330082005161
Minimum order 1
ECCN N
Net weight 0.055
Material code V54538-F141-A100
Statistical code 85311030
Country of origin IL
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
LED Indicators: Red/Green LED: Enrollment activation Red LED: Alarm & Walk Test
Power supply: Battery type GP CR123A
Operating current: Standby ~5uA Receive mode ~24mA Transmit mode ~50mA
Detection characteristics / range: Magnetic contact opening and shock sensor
Frequency: 868MHz
Range: 500m transmission range in open space
Operating temperature: -10°C to +55°C
Weight: Nett - 40g
